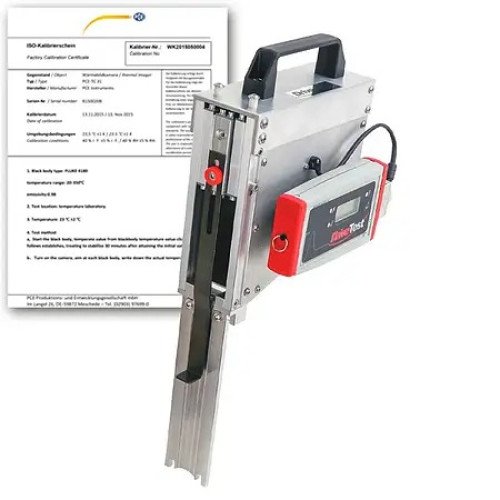

Closing Force Measuring Device
Closing force measurement for sliding roofs, automatic window lifters and tailgates
Closing force measurement for sliding roofs, automatic window lifters and tailgates
The closing force measuring device is an electronic measuring device for sliding roofs, automatic window lifters and tailgates in the automotive sector. Typical applications are manufacturing, development and production tests in the automotive industry. The closing force gauge with its low spring stiffness was developed to test soft elements that are clamped into a closing system. The device excels with easy handling for repetitive measurements. Its uncompromising design combines precision with practical robustness and ensures accurate readings even after years of use in harsh environments.
For measurement set-ups in testing and manufacturing, quick and easy execution is of great importance. For this purpose, software has been developed that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be transferred to a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test sequence.
For measurement set-ups in testing and manufacturing, quick and easy execution is of great importance. For this purpose, software has been developed that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be transferred to a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test sequence.
Highlights
- Support of relevant standards – 2000/4 EG, US Standard FMVSS 118, ECE-R 21; additional measurement
with low spring stiffness: 2 N/mm
- Precise measurements - due to friction-free guidance and platform load cell
- Robust design - durable aluminum ensures a long service life in tough use
- Professional, extensive PC software - PinchPilot leaves nothing to be desired
- Complete scope of supply - includes all necessary components for tailgates, windows and
Sunroofs packed in a high-quality transport case
- Accessories for every application - spacers (200 mm), force introductions (clamp and platform),
Monopod, Bumper Support Block, Window Support Block, Sunroof Support Block,
sunroof spacer
with low spring stiffness: 2 N/mm
- Precise measurements - due to friction-free guidance and platform load cell
- Robust design - durable aluminum ensures a long service life in tough use
- Professional, extensive PC software - PinchPilot leaves nothing to be desired
- Complete scope of supply - includes all necessary components for tailgates, windows and
Sunroofs packed in a high-quality transport case
- Accessories for every application - spacers (200 mm), force introductions (clamp and platform),
Monopod, Bumper Support Block, Window Support Block, Sunroof Support Block,
sunroof spacer
Specification
| FM208 | |
| Application of force | on one side |
| Measuring range | 0 ... 200 N |
| Accuracy | +/– 3 N (0-100 N) or +/– 3 % (> 100 N) |
| Spring stiffness | 2 N/mm, +/–(10%) |
| Gap width | 30 mm / 1.1" |
| Area | 20 x 20 mm / 0.7 x 0.7" |
| Force sensor | DMS bridge |
| Dimensions | ca. 220 x 80 x 250 mm / 8.6 x 3.1 x 9.8" |
| Weight | ca. 2.5 kg / 5.5 lb |
| Display device SEB2.2 | |
| - Display device SEB2.2 data logger unit with LCD display | |
| and LED status indicators, control button, USB interface | |
| - Optional PC-controlled measurement | |
| - Lithium polymer battery | |
| - Real time clock | |
| - Memory for 100 measurements | |
| - Sensor and PC interface | |
| - Peak value display and effective power display | |
| - Rating display i. O./n. i. O. | |
| PC evaluation software PinchPilot | |
| - Multilingual (DE, EN, IT, FR, ES) | |
| - Graphic representation of the force curve | |
| - Calculation of the standard-relevant characteristic values | |
| - Evaluation according to different guidelines possible | |
| - Custom policy adjustable | |
| - Log printout | |
| - Data export (Excel, CSV, PDF) | |
| - Optional measuring point identification | |
