Force Gauge, 100N • d=1N, green
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Precise and handy Spring Dynamometer for traction- and pressure force measurement with durable anodised aluminium tube and long scale of high resolution. Tare and zero adjustment. Swivelable, rotatable and removable suspension bow, guided in a ring. Lower hook swivels, rotates and can be changed using different accessories. Suspension elements out of stainless steel. Drag pointer (e.g. for easy reading of breaking forces) and convenient, removable handle, pressure set 8.004 with all its accessories, plus extra large protection cap, packed in transparent protective tube, are all included. A versatile long life measuring instrument. Easily transforms and offers many accessories. Always ready for use, needs no batteries. A time-tested original Swiss quality.
More
E.g. appropriate to measure closing forces of fire-protection- and elevator doors.
TECHNICAL DATA

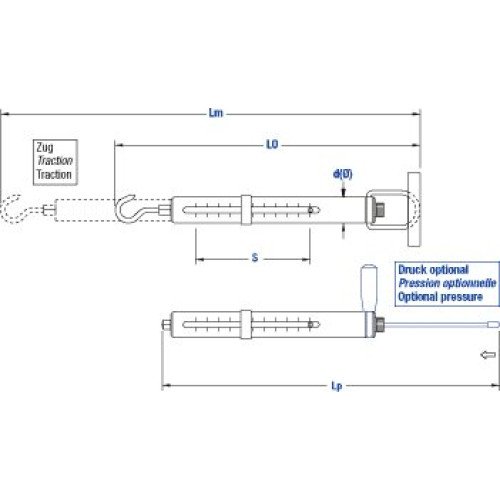

All Macro Line scales can be easily transformed into pressure measuring instruments (dynamometer) with the accessory pressure set (item No. 8.004) within seconds. With this, the Pesola Macro Line scales can be used for measuring pull and push force – two functions in one measuring instrument.
Video: Transformation with pressure set Macro
The lower suspension of the Pesola MacroLine can be changed wthin seconds.
Video: Change lower suspension Macro Line
