Humidity Detector
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

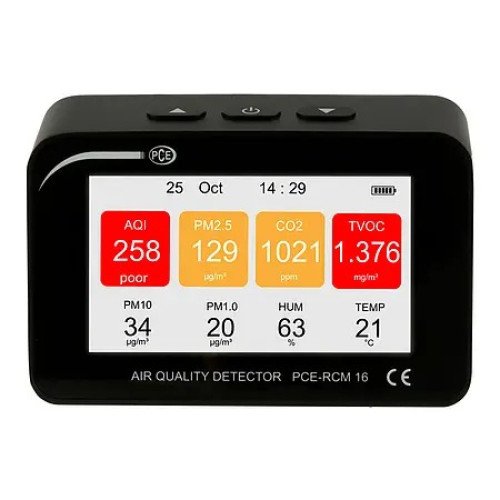

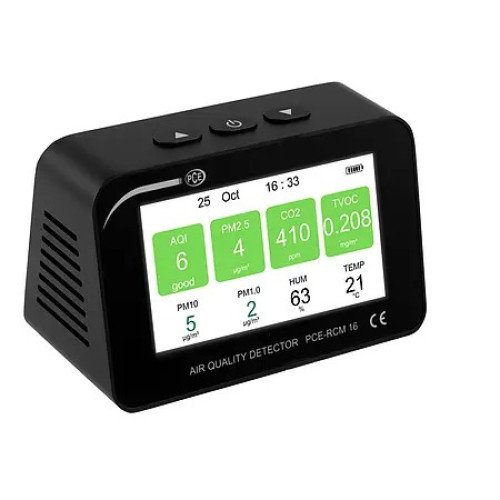

Humidity detector PCE-RCM 16
Air quality meter for measuring the air quality / 4.3 inch TFT display / Metal housing / Alarm function / TVOC, CO2, PM1, PM 2.5, PM10, temperature, humidity measurement / Rechargeable battery / For enclosed spaces / Limit alarm
The air quality meter PCE-RCM 16 is ideal for monitoring the air quality in homes, businesses or public buildings where people are staying. The 4.3-inch TFT display on the air quality meter is dimensioned so that all measured values can be read directly. Supported measurements on the air quality meter are CO2, TVOC, PM1, PM2.5, PM10, temperature and ambient humidity. On the display of the air quality meter, the measured values are updated every second. As soon as a measured value exceeds the fixed limit, this is visually indicated to the user.
To power the air quality meter can be operated directly via the micro USB port on the back. The built-in battery with the air quality meter is charged via this interface. Thus, the air quality meter is versatile. It should be noted that the measured values settle within 24 hours after switching on the air quality meter.
N.B. the meter is designed to be operated by mains power, and will run only a few hours by the battery.
Highlights
- 4.3-inch TFT screen
- Many different measuring functions
- Robust metal housing
- Calculation of the air quality index (AQI)
- Rechargeable battery via micro USB
- Adjustable alarm clock
- Different display modes
- Fixed limit function
- Many different measuring functions
- Robust metal housing
- Calculation of the air quality index (AQI)
- Rechargeable battery via micro USB
- Adjustable alarm clock
- Different display modes
- Fixed limit function
Specification
| Measurement function TVOC | |
| Measuring range | 0.000 ... 9.999 mg / m³ |
| Resolution | 0.001 mg / m³ |
| Accuracy | ± 10% of the measured value |
| Measurement function PM1, PM 2.5, PM10 | |
| Measuring range | 0 ... 999 μg / m³ |
| Resolution | 1 μg / m³ |
| Accuracy | ± 10% of the measured value |
| Measuring function temperature | |
| Measuring range | 0 ... 50°C / 32 ... 122°F |
| Resolution | 1°C / 1.8°F |
| Accuracy | ± 1°C / 1.8°F |
| Moisture measurement function | |
| Measuring range | 20 ... 90% rh |
| Resolution | 1% |
| Accuracy | ± 4% |
| Measurement function CO2 | |
| Measuring range | 0 ... 5000 ppm |
| Resolution | 1 ppm |
| Accuracy | ± 10% of the measured value |
| Settling | About 24 hours |
| Display | TFT display, 4.3 inches |
| Environmental conditions | 0 ... 50°C / 32 ... 122°F, max. 90% rh |
| Connection | Micro USB for charging the battery |
| Power supply | 5V / 2A |
| Battery pack | 3000-mAh |
| Casing | Metal |
| Dimension | 191 x 78 x 67.5 mm / 7.5 x 3 x 2.7 in |
| Weight | 336 g / < 1 lb |
