Humidity Detector PCE-G1A
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

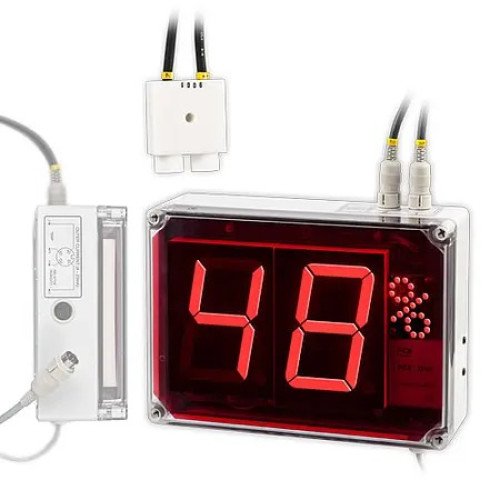

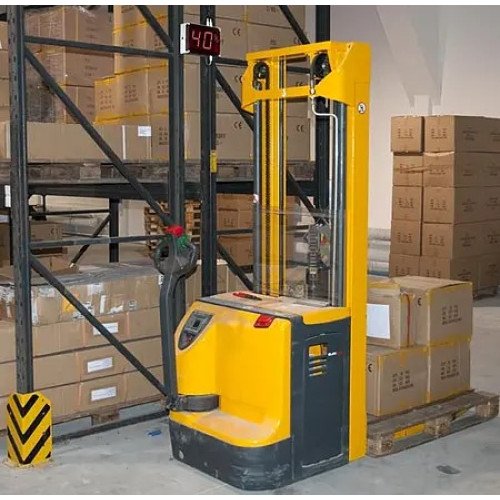

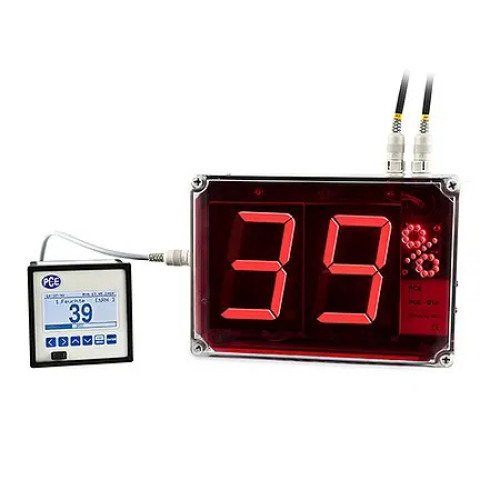

PCE-G1A is a humidity detector with a large display. This IP54-rated wall-mountable device measures both relative humidity (%RH) and temperature (°C only). The PCE-G1A humidity detector has a large LED display with a number height of 100 mm / 3.9 in, so measurement values can be seen at a distance of up to 50 m / 164 ft away.
Relative humidity and temperature measurements are displayed every 5 seconds (in 5-second intervals). Sensors are mounted by means of connectors with 1 m / 3.3 ft long cable to measure relative humidity and temperature when sensors and display are in different places.

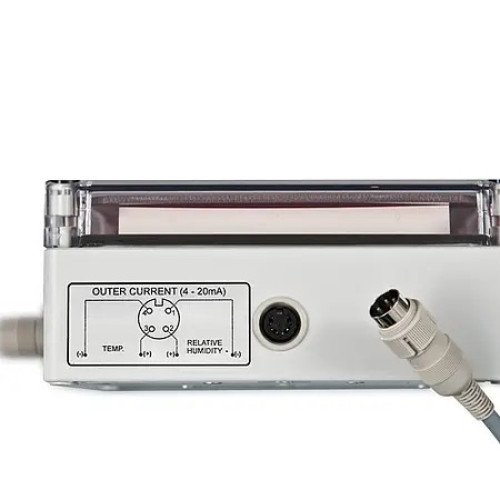

The PCE-G1A also has a 2-channel analog output of 4 ... 20-mA. The two channels convert relative humidity and temperature values into 4 ... 20-mA signals before displaying them. This means that measurements can be recorded, controlled and regulated by means of the analog output.
Highlights
- Ingress protection type: IP 54 rating
- Large, easy-to-read 100 mm / 3.9 in tall LED digits
- Analog output: 4 ... 20-mA external sensors
- Temperature and relative humidity values are displayed every 5 seconds (in 5-second intervals)
- Displays temperature in degrees Celsius (°C) only
- Ready for wall mounting
- Long life
- Excellent readability
- High accuracy
- Large, easy-to-read 100 mm / 3.9 in tall LED digits
- Analog output: 4 ... 20-mA external sensors
- Temperature and relative humidity values are displayed every 5 seconds (in 5-second intervals)
- Displays temperature in degrees Celsius (°C) only
- Ready for wall mounting
- Long life
- Excellent readability
- High accuracy
Specification
| Measuring ranges | 10 ... 95 % RH / 0 ... +60 °C |
| Resolution | 1 % RH / 1 °C |
| Accuracy | ±2 % RH / ±1 °C |
| Visibility | readable at ca. 50 m |
| Sensor type Relative humidity / Temperature | HC1000 / Pt1000 |
| Response time T90 | ca. 4 s |
| Cable length (between sensor and display) | 1 m |
| Display | 100 mm high LED (alternating display) |
| Analog output | two channel 4-20 mA (passive) |
| Analog output scaling | temperature: 0 ... 100 °C humidity: 0 ... 100 % |
| Power supply | 230 V / 50 ... 60 Hz |
| Stromaufnahme | ca. 20 mA |
| Dimensions | sensor 50 x 70 x 20 mm large display 175 x 175 x 75 mm |
| Protection | IP 54 |
| Weight | 1.3 kg (incl. sensor and cable) |
