Humidity Detector PCE-AQD 10-ICA incl. ISO Calibration Certificate
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

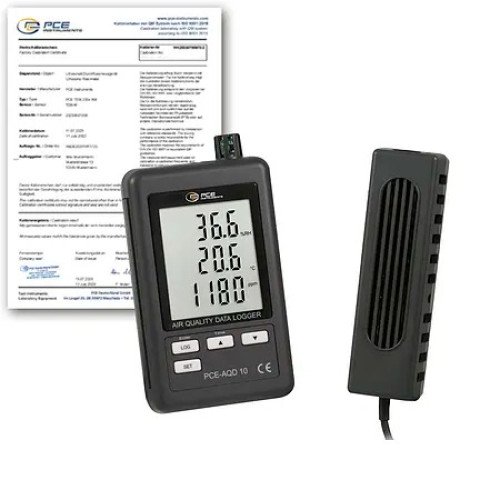

Humidity Detector PCE-AAQD 10 incl. ISO Calibration Certificate
CO2 datalogger for air quality testing / Adjustable storage rate / Backlit LCD / Storage on SD card / Storage as XLS
CO2 datalogger for air quality testing / Adjustable storage rate / Backlit LCD / Storage on SD card / Storage as XLS
The humidity detector is used to measure air quality. The humidity detector measures carbon dioxide, temperature and humidity. The CO2 sensor from the humidity detector is separated from the main unit with a connection cable. The measured values are displayed on the large display of the humidity detector. The humidity detector data is stored on an SD card. The humidity detector can set the measured data in adjustable intervals of 1 ... 600 seconds.
The humidity detector is used to monitor indoor air quality in lounges, offices, schools, etc. Through the SD memory, the CO2 measurement data can be monitored over a long period of time to initiate further measures to improve the room air quality.
Highlights
- Memory on SD card
- 3 parameters of air quality
- CO2, air temperature and humidity
- Mains operation, A/C power adapter
- Save as XLS file
- Large display with lighting
- incl. ISO Calibration Certificate (for CO2 only)
- 3 parameters of air quality
- CO2, air temperature and humidity
- Mains operation, A/C power adapter
- Save as XLS file
- Large display with lighting
- incl. ISO Calibration Certificate (for CO2 only)
Specification
| Measured variable CO2 | |
| Measuring range | 0 ... 4000 ppm |
| Resolution | 1 ppm |
| Accuracy | ± 70 ppm (<1000 ppm) |
| ±5% of measured value (<3000ppm) | |
| ±250 ppm (>3000 ppm) | |
| Measured variable humidity | |
| Measuring range | 10 ... 90 % RH |
| Resolution | 0.1 % RH |
| Accuracy | ±(4% of measured value + 1 % RH) (>70% RH ) |
| ±4% RH (<70 % RH) | |
| Measured variable temperature | |
| Measuring range | 0 ... 50 °C / 32 ... 122 °F |
| Resolution | 0.1 °C / 0.18 °F |
| Accuracy | ± 0.8 °C / 1.4 °F |
| Storage rate | 1, 2, 5, 10, 30, 60, 120, 300, 600 seconds |

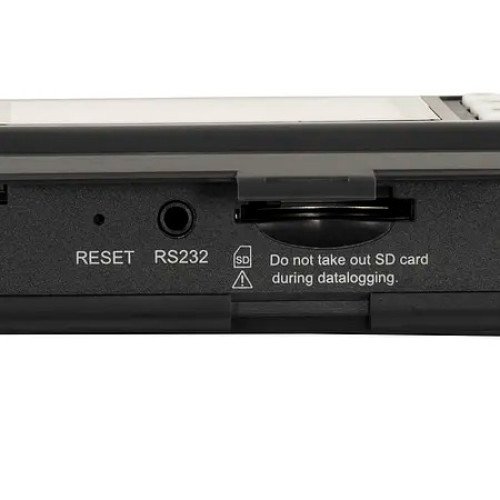

| Memory | SD card up to 16 GB |
| Display | LCD with lighting |
| Refresh rate display | 1s |

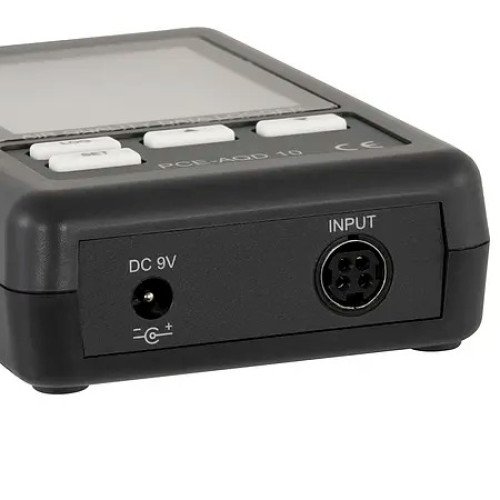

| Power supply | plug-in power supply 9 V / 800 mA |
| Operating conditions | 0 ... 50 °C / 32 ... 122 °F / < 85 % RH |
| Dimensions | main unit: 132 x 80 x 32 mm / 5.2 x 3.1 x 1.3" |
| CO2 sensor: 132 x 38 x 32 mm / 5.2 x 1.5 x 1.3" | |
| Weight | ca. 390 g / 13.7 oz (total) |
