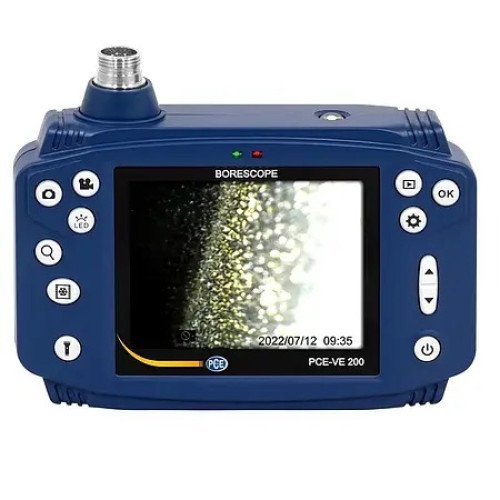

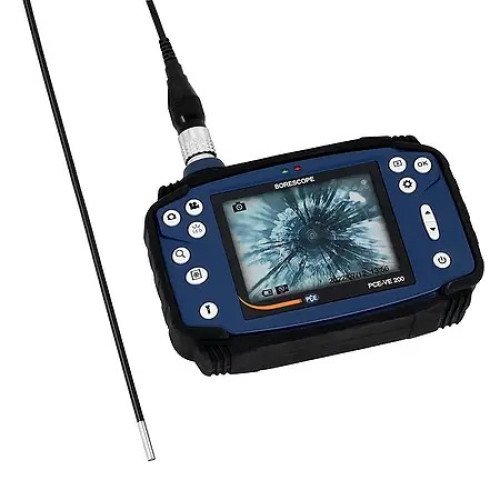

HVAC Meter PCE-VE 200-S

Product Code:
PCE-VE 200-S
Availability:
In Stock
Delivery Time
2–3 Business Days

Need Technical Support?

Our engineers are available to help you select the right module for your application.

Description

Description

The HVAC meter is an industrial inspection camera, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This HVAC meter provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.

The HVAC meter stores the recorded images and videos directly to a micro SD card memory. The 1 m / 3.28 ft cable length and 3.7 mm / 0.14 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***

Highlights

- Waterproof camera head (IP67 protection class)
3.7 mm / 0.14 in diameter
- 1 m / 3.28 ft cable length
- 180° image rotation
- 3.5" LCD display
- CMOS chip image sensor
- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
- Micro SD card memory
- Micro USB 2.0 and TV outputs

Specification

Display

LCD, 3.5"

Resolution

1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video

Image rotation

180°

Freeze functionality

Yes

Zoom

Up to 4 times digital image magnification

Menu languages

English, Spanish, French, German, Russian, Japanese, Simplified Chinese, Traditional Chinese

Cable diameter

3.7 mm / 0.14 in cable diameter

Cable length

1 m / 3.28 ft

Cable rigidity

Semi-flexible (semi-rigid spiral)

Image sensor

CMOS chip

Lighting

6 white LEDs (adjustable intensity)

Field of view / angle / perspective

90°

Sight depth

15 ... 100 mm / 0.59 ... 3.94 in

Storage medium

Micro SD card

Interfaces

Micro USB 2.0, TV output (PAL), Micro SD card slot

Power supply

Rechargeable 18650 Li-ion battery

Battery capacity

2600-mAh

Battery life

Up to 5 hours from full charge

Operating conditions

Main unit and probe, in air:
-10 ... 50°C / 14 ... 122°, rel. humidity 15 ... 90%
Probe, in water:
5 ... 50°C / 41... 122°F

Fluid resistance

Main unit and probe:
Machine oil, light oil or 5% saline

Protection against

Main unit:
Blowing rain (battery compartment must be closed), not underwater
Probe:
Water, oil and dust, according to protection class IP67
