HVAC Meter PCE-VT 3700-ICA incl. ISO Calibration Certificate
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Handy entry-level HVAC device for vibration monitoring of machines and systems / HOLD function
Peak value measurement / Handheld device for mobile vibration measurement
Automatic ISO 10816-3 evaluation / incl. ISO Calibration Certificate
Peak value measurement / Handheld device for mobile vibration measurement
Automatic ISO 10816-3 evaluation / incl. ISO Calibration Certificate

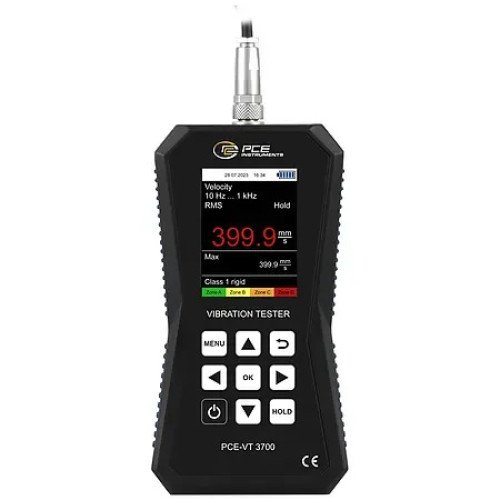

The HVAC meter is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display.

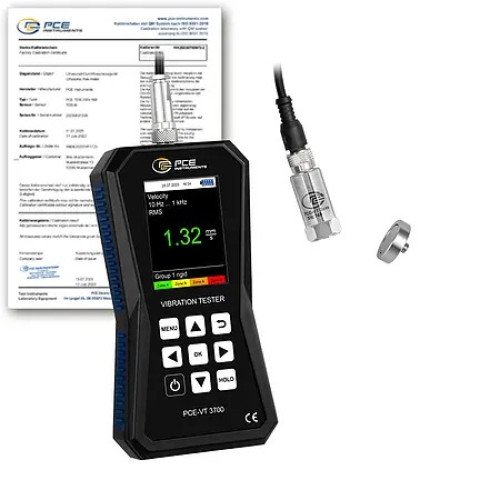

The vibration meter is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The ISO factory certificate completes the scope of delivery. The display of the vibration meter is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the vibration meter are easily switchable.
Highlights
- Automatic ISO 10816-3 evaluation
- Easy to handle
- For mobile vibration measurement
-The measurement unit can be switched between the metric system and imperial units.
- Colored graphic display
- Peak-hold function
- Incl. ISO calibration certificate
- Easy to handle
- For mobile vibration measurement
-The measurement unit can be switched between the metric system and imperial units.
- Colored graphic display
- Peak-hold function
- Incl. ISO calibration certificate
Specification
| Measuring range | Acceleration |
| 0.0 - 399.9 m/s² / 0.0 - 15744 in/s² | |
| Resolution | 0.1 m/s² / 3.94 in/s² |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 1 kHz - 10 kHz |
| 10 Hz - 10 kHz | |
| Measuring range | Velocity |
| 0.00 - 399.99 mm/s / 0.00 - 15.74 in/s | |
| Resolution | 0.01 mm/s / 0.0039 in/s |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 10 Hz - 1 kHz |
| Measuring range | Displacement |
| 0.000 - 3.999 mm / 0.000 - 0.154 in | |
| Resolution | 1 µm / 39.4 µin |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 10 Hz - 200 Hz |
| Measurement parameters | RMS, Peak, Peak-Peak |
| Crest factor | |
| Units | switchable metric / imperial |
| Display | 2.8" LC display |
| Menu languages | English, German, French |
| Spanish, Italian, Dutch | |
| Portuguese, Turkish, Polish | |
| Russian, Chinese, Japanese | |
| Power supply | 3 x 1.5 V AA batteries |
| Operating and storage conditions | -20 ... +65 °C / -4 ... 149 °F; 10 ... 95 % r.H. |
| Dimensions | 165 x 85 x 32 mm / 6.4 x 3.3 x 1.2" |
| Weight | 239 g / 8,4 oz |

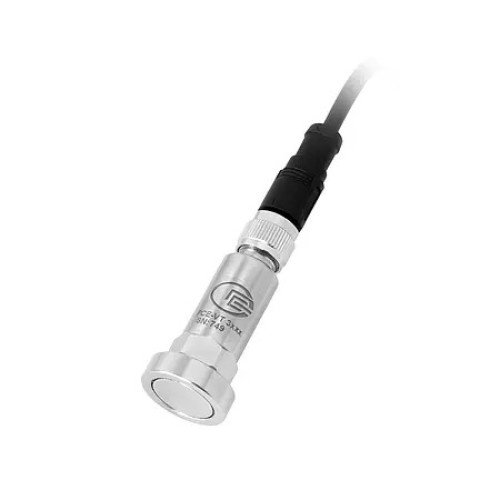

| Technical Data Vibration Sensor | |
| Resonance frequency | 24 kHz |
| Transverse sensitivity | ≤ 5% |
| Destruction limit | 5000 g (peak) |
| Operating and storage temperature | -55 ... +150 °C / -67 ... 302 °F |
| Housing material | stainless steel |
| Mounting thread | ¼ - 28“ |
| Dimensions | Ø 17 x 46 mm / 0.67 x 1.8" |
| Weight (without cable) | 52 g / 1.8 oz |
| Protection Class: | IP52 |
