Hardness Tester PCE-DDD 10-ICA incl. ISO Calibration Certificate

Brand:
PCE Instruments
Product Code:
PCE-DDD 10-ICA
Availability:
In Stock
Delivery Time
2–3 Business Days

Need Technical Support?

Our engineers are available to help you select the right module for your application.

Description

Description

Digital Hardness Tester to measure Shore D hardness in materials such as hard rubber and thermoplastic with USB port and downloadable software

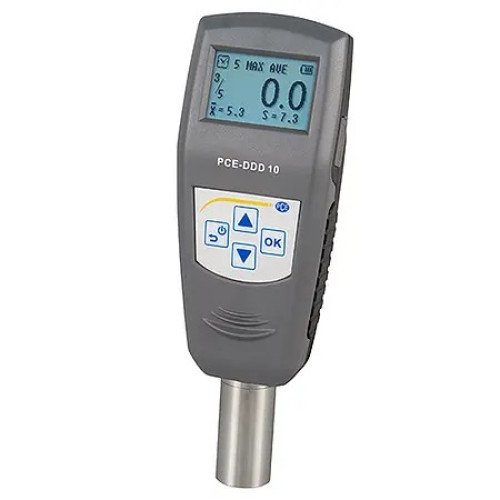

The PCE-DDD 10 hardness tester is an ergonomic device to check Shore D hardness in materials such as hard rubber and thermoplastic. It has been designed with a very high quality. If the material thickness is not enough, it should be tightened on the back with the same material in order to increase its thickness.

Highlights

- Handheld device
- Digital display
- Plastic case included
- For Shore D measurements
- Large display
- Single and Serial Measurements
- Data transfer to pc
- Incl. ISO Calibration Certificate


Specification

Measurement range   0 ... 100 Shore D
Resolution 0.1
Accuracy < ± 1
Indenter

 35°± 0.25°

Memory Saves up to 500 measurements
Dimensions 153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (main body)
Weight Approx. 300 g / < 1 lb
Power supply 3.6V rechargeable Ni-MH battery
Max. operating time Up to 20 h continuous use at full charge
Charging time Approx. 3 h
Standards GB/T 531.1, ISO7619-1, ASTM D 2240
