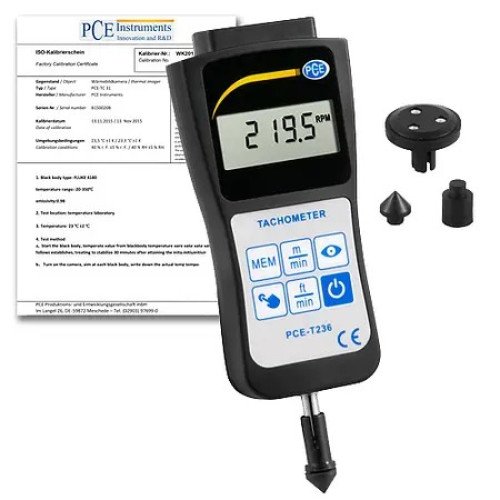

Handheld Tachometer PCE-T236-ICA Incl. ISO Calibration Certificate
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Handheld Tachometer PCE-T236-ICA incl. ISO calibration certificate
Digital rotation meter for both contact and non-contact measurement
PCE-T236 is a digital handheld tachometer or rotation meter for both contact and non-contact measurement. This tachometer measures rotation speed as well as linear or surface speed, displaying units in rpm, m/min or ft/min.

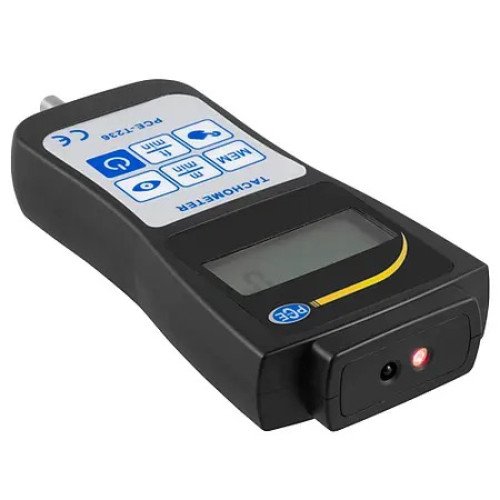

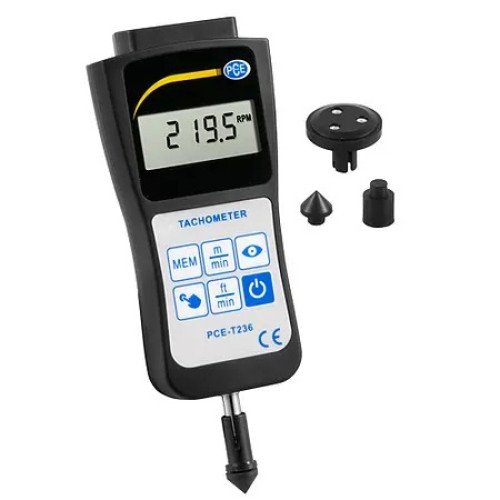

The tachometer features an integrated laser and includes a mechanical attachment with contact probes, making it the ideal measuring instrument for machines, motors, conveyor belts and other moving parts. Non-contact measurements are taken with the help of laser-reflective tape that is fixed on the moving part. Contact measurements are taken using the mechanical attachments.
A unique feature of this tachometer is that the orientation of the 5-digit LCD screen automatically rotates 180° to accommodate either contact or non-contact measurement.
Highlights
- Automatic rotation of LCD screen orientation
- Displays units in rpm, m/min or ft/min
- Memory saves minimum, maximum and last values
- Rugged heavy-duty ABS plastic enclosure ensures longevity
- Incl. ISO calibration certificate
Specification
| Optical measurement range | 5 ... 99999 rpm |
| Contact measurement range | 0.5 ... 19999 rpm, 0.05 ... 1999 rpm, 0.2 ... 6560 ft/min |
| Optical resolution | 0.5 ... 999.9 = 0.1 rpm, 1000 ... 99999 = 1.0 rpm |
| Contact resolution | 0.5 ... 999.9 = 0.1 rpm, 1000 ... 99999 = 1.0 rpm 0.05 ... 99.99 = 0.01 rpm, Greater than 1999 = 0.1 rpm 0.2 ... 999.9 = 0.1 ft/min, Greater than 6560 = 1.0 ft/min |
| Accuracy | Less than 60000 rpm = ±0.05% fs , Greater than 60000 rpm = ±0.15% fs |
| Max. distance for optical measurement | 300 mm / 11.8 in |
Memory | Minimum, maximum and last values |
Power supply | 4 x 1.5V AAA batteries |
Operating temp. range | 0 ... 50°C / 32 ... 122°F |
Dimensions | Approx. 65 x 215 x 38 mm / 2.56 x 8.47 x 1.50 in |
Weight | Approx. 300 g / < 1 lb |
