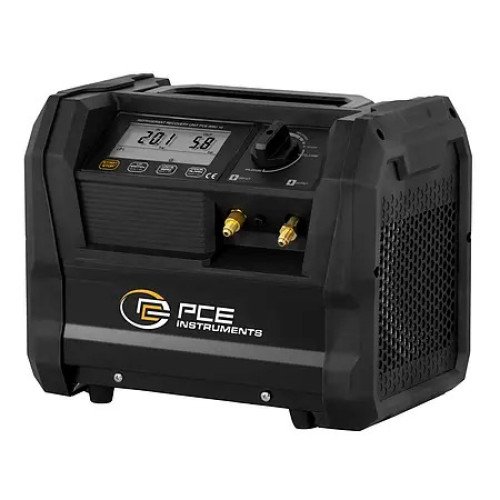

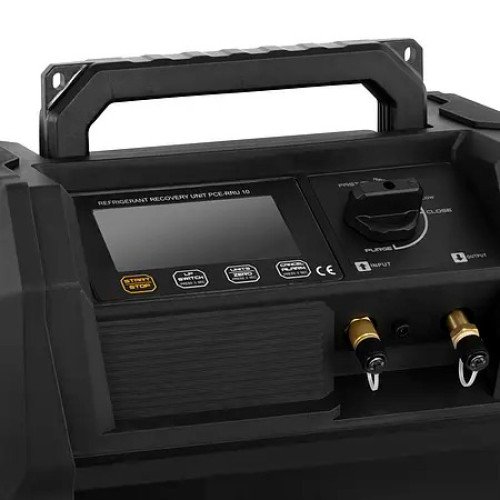

Heat Pump Tester PCE-RRU 10 Refrigerant Recovery Device for HVAC
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Heat Pump Measuring Device for Classes A1, A2L, and A2 / Self-cleaning Function / Oil-free 2-piston Compressor / LCD Display for Pressure Readings / Portable
The heat pump measuring device is ideal for all refrigeration system builders and technicians for refrigerant extraction. It can be used for refrigerants of classes A1, A2L, and A2. The compact heat pump measuring device is easily transportable with a handle and simple to operate. The extraction speed can be adjusted using the rotary control. Additionally, the extraction device features a "Purge Function" that cleans the system, emptying any residual refrigerant in the device. The powerful oil-free 2-piston compressor can generate pressures of up to 38.5 bar and achieve extraction rates of up to 9.5 kg/min, depending on the refrigerant.
The heat pump measuring device includes an intake and an exhaust pressure gauge, allowing for real-time pressure monitoring. Furthermore, the recovery automatically shuts off when the internal pressure exceeds 38.5 bar to ensure safe operation. The heat pump measuring device comes with a refrigerant filter, a short filter connection hose, an OFP cable, and a carrying strap.
The heat pump measuring device is required during the commissioning or maintenance of air conditioning systems or similar systems filled with refrigerant. Regular inspection and maintenance extend the lifespan of the systems and enhance energy efficiency.
Highlights
- Refrigerant classes A1, A2L, and A2
- Pressure up to 38.5 bar with overpressure protection
- Oil-free 2-piston compressor
- Brushless 1 HP motor
- Extraction rate of up to 9.5 kg/min (R410A)
- Easy operation with a rotary control
- Large LCD display with backlight
- Automatic cleaning function
- Portable
Specification
| Pressure | |
| Measuring Range | 0 bar ... 38.5 bar |
| Resolution | 0.1 bar |
| Liquid Extraction Rate | |
| R134a | 2.6 kg/min |
| R22 | 2.9 kg/min |
| R410A | 3.9 kg/min |
| Push/Pull Extraction Rate | |
| R134a | 7.5 kg/min |
| R22 | 8.5 kg/min |
| R410A | 9.5 kg/min |
| General Technical Data | |
| Units | bar, MPa, kPa, psi, kgf |
| Connection Type | 1/4" SAE |
| Display Type | LCD with backlight |
| Refrigerants | R401C, R22, R401B, R134a, R407D, R509, R407B, R410A, R507, R407C, R408A, R12, R32, R409A, R402A, R500, R404A, R402B, R401A, R406A, R1234YF, R502, R407A |
| Motor Power | 1 HP |
| Max. Current Consumption | 6 A |
| Compressor | Oil-free, Air-cooled |
| Menu Language | English |
| Protection Class | IP20 |
| Power Supply | Schuko Plug (110 V - 240 V AC | 50/60 Hz) |
| Weight | 10.75 kg |
| Device Weight with Accessories | 11.45 kg |
| Device Weight with Accessories and Packaging | 12.75 kg |
| Dimensions (L x W x H) | 38 x 25 x 30 mm |
| Operating Conditions | 0 ... +40 °C, +10 ... +90 % r.F. |
| Storage Conditions | 0 ... +40 °C, +10 ... +90 % r.F. |
