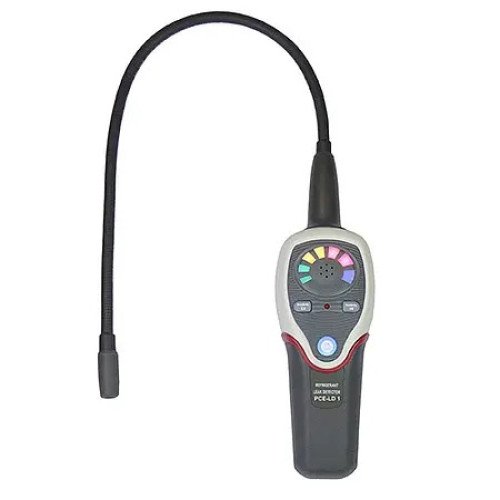

Indoor Air Quality Meter PCE-LD 1
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
PCE-LD 1 is a portable handheld air quality meter used to detect CFC / HFC refrigerant gas leaks indoors. This highly sensitive gas leak detector can locate gas leaks from HVACR refrigeration systems even in areas contaminated by other gases. The gas sensor is located at the end of a 390 mm / 15.35" flexible gooseneck tube, allowing unique access to hard-to-reach places.
Highlights
- Detects R-134a, R-404A, Freon R-407C, R-410A and R-22 (per EN 14624)
- Adjustable sensitivity
- Audible and visual alarms
- Easy to use
- Tricolor LED indicator shows concentration of gas
- Sensor life: Approx. 1 year - see accessories for replacement
- Adjustable sensitivity
- Audible and visual alarms
- Easy to use
- Tricolor LED indicator shows concentration of gas
- Sensor life: Approx. 1 year - see accessories for replacement
Specification
| Technical specifications | |
| Sensitivity | Adjustable (high and low) |
| Warm-up time | Approx. 90 seconds |
| Gases detected | CFC / HFC refrigerants including R-134a, R-404A, Freon R-407C, R-410A and R-22 |
| Per standard | EN 14624 |
| Test cycle | Continuous |
| Sensor tube length | Approx. 390 mm / 15.35" |
| Power supply | 4 x AA batteries |
| Battery life | Approx. 40 hours of normal use |
| Auto shut-off | After 10 minutes of inactivity |
| Dimensions | Approx. 173 x 66 x 56 mm / 6.8 x 2.6 x 2.2" |
| Weight | Approx. 400 g / 0.89 lb |
See user manual for complete technical specifications.
