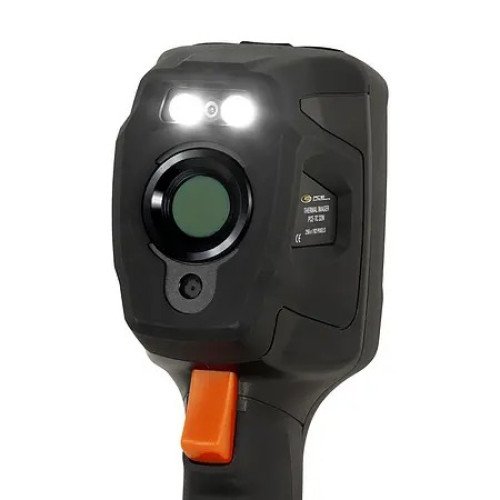

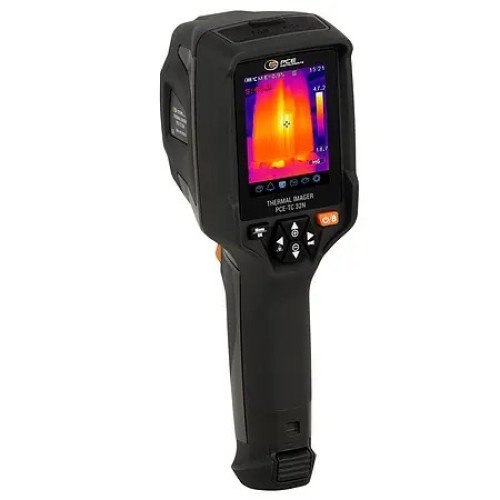

Thermal Imager Camera PCE-TC 32N
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Thermographic camera with photo and video function / software for evaluating the images / measuring range -20 ... +550 °C / 1/4" inch photo tripod connection / 4 hours operating time.
Wi-Fi interface and free Android and iOS app / optionally with ISO calibration certificate
The thermographic camera has a measuring range of -20 ... +550 °C. This means that the thermographic camera already covers a wide temperature range of measurement tasks. With an image frequency of 25 Hz, problems can be localised quickly with the thermographic camera. The picture-in-picture function allows the real image to be displayed simultaneously with the thermal image. The app enables a clear display and operation of the thermographic camera.
When connecting the thermographic camera to a PC, there are two different functions that can be selected in advance in the settings. With the "PC Connection" setting, the thermographic camera is recognised as a mass data storage device. This allows all image, video and measurement data to be copied directly from the thermographic camera. With the "PC Camera" function, the thermographic camera is recognised as a webcam by the PC. This has the advantage that the current image from the thermographic camera can be played back on a PC, for example, during online meetings or training courses. In both cases, the thermographic camera is independent of the operating system.
Highlights
- Software for evaluating the recordings
- Measuring range -20 ... +550 °C
- Picture-in-picture function
- eight different thermal image representations
- video and photo recording
- optionally with ISO calibration certificate
Specification
| Measuring function | |
| Measuring range | -20 ... 550 °C / -4 ... +1022 °F |
| Resolution | 0,1 °C / 0,1 °F |
| Accuracy | ±2 °C / 3,6 °F at an ambient temperature |
| between 10 ... 35 °C and an object temperature of >0 °C | |
| Sensor characteristics | |
| Field of view (FOV) | 50° x 37° |
| Depth of field of view | from 0.5 m |
| pixel density (IFOD) | 7,6 mrad |
| Thermal sensitivity | <0,06 °C bei +30 °C / 60 mK |
| Frame rate | 25 Hz |
| Image sensor | uncooled microbolometer |
| Spectral range | 7,5 ... 14 µm |
| Infrared resolution | 256 x 192 pixels |
| Measuring points | Average point, automatic recognition |
| of the hottest and coldest measuring point | |
| Measurement correction | Reflection of temperature, adjustment of emission value |
| Image sensor | 2 mega pixels |
| Field of view (FOV) | 65° |
| Video recording | |
| Storage capacity | 8 GB on micro SD card, 3.4 GB internal memory |
| Recording time | >30 minutes |
| Format Standard | MPEG-4, 240 x 320 pixels, 30 Hz |
| Recording mode | Infrared and/or real image recording |
| Image recording | |
| Storage format | .jpeg or .hir with measurement data. |
| Storage capacity | >6000 images |
| Interface | |
| Cable connection | USB-C with charging and for data transfer |
| Wireless | Wi-Fi 802.11 |
| Further specifications | |
| Power supply | 5 V DC, 1 A |
| Power supply (battery) | 3,7 V DC, 2600 mAh, 9,62 W (18650) |
| Power off Automatic | 5, 10, 15, 30 minutes or permanently switched on |
| Connection thread | 1/4" photo tripod |
| Display | 2.8 " LC display |
| Display resolution | 240 x 320 pixels |
| Colour palette | Iron, rainbow, black white, black white (inverted) |
| brown, blue red, hot-cold, feather | |
| Zoom | 1 ... 16x digital zoom |
| Operating conditions | -15 ... + 50 °C, 5 °F ... 122 °F |
| Storage conditions | -40 ... + 70 °C, -40 ... +158 °F |
| Ambient humidity | 10 ... 90 % r. F., non-condensing |
| Dimensions | 224 x 77 x 96 mm |
| Weight | 423 g |
