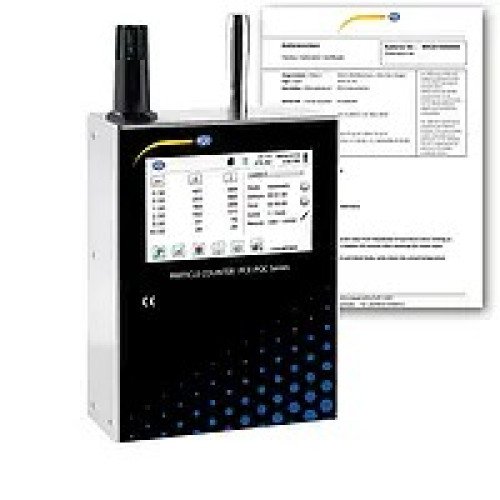

Carbon Dioxide Meter PCE-PQC 34EU incl. calibration certificate
Environmental Particle Counter with CO2 Sensor / Optional PID Sensor / Internal memory / Wall mounting / Large measuring range
Environmental Particle Counter with CO2 Sensor / Optional PID Sensor / Internal memory / Wall mounting / Large measuring range
The Carbon Dioxide Meter PCE-PQC 3xEU series is characterized by its small size and easy wall mounting. The stationary installation of the environmental particle counter PCE-PQC 3xEU series ensures high-precision air quality studies. Both available models measure particles (PM), temperature, humidity and CO2. The PCE-PQC 35EU also has a high-quality PID (Photo Ionization Detector) sensor for recording total volatile organic compounds (TVOC).

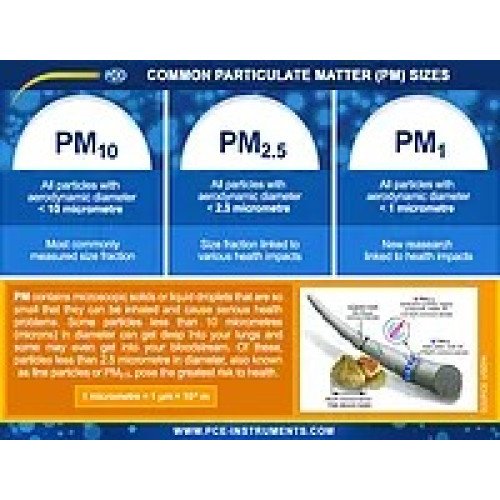

The environmental particle counters use very powerful electronics to be able to effectively measure the simultaneous displays of PM1.0, PM2.5, PM5 .0, PM10.0 and total particles. These measurements are stored simultaneously with the other built-in sensors in a large memory of 45,000 data records. With a large color touchscreen display, the visual indication of the environmental conditions is easy to see.
Highlights
- large measuring range up to 25 µm
- CO2 sensor
- integrated memory
- optional PID sensor available
- optional wifi interface available
- compact design
- CO2 sensor
- integrated memory
- optional PID sensor available
- optional wifi interface available
- compact design
Specification
| PCE-PQC 34EU | |
| Measuring range | 0.3 ... 25 µm |
| Measuring channel sizes | factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm |
| Counting efficiency | 50% at 0.3 μm, 100% at > 0.45 μm according to JIS |
| Particle mass display | PM0,5, PM1,0, PM2,5, PM5,0, PM10 and TPM |
| Flow rate | 2.83 l/min (0.1 ft³/min) |
| Random loss | 10% at 30000000 particles / ft³ |
| Battery operation | 10 h |
| Light source | long-life laser diode |
| Zero count | <1 count / 5 min (<2 particles/ft³) according to ISO 21501-4 and JIS |
| Counting modes | automatic, manual, real-time display, cumulative/ |
| differential, mass concentration | |
| Acoustic alarm | adjustable, integrated alarm |
| Calibration | traceable to NIST |
| Display | 4.3" WQVGA color touch display, 480x272 px |
| Printer | external thermal printer |
| Air intake | internal pump with automatic |
| flow rate control | |
| Air outlet | interner HEPA filter |
| Battery | replaceable Li-Ion battery |
| Charging time | ca. 4 h |
| Reports | ISO 14644-1 |
| EU GMP appendix 1 | |
| FS 209E | |
| Configuration | memory for 50 user-defined configurations |
| Standards | ISO 21501-4 and JIS B9921 |
| Dimensions | 13.3 x 10.5 x 21 cm |
| Weight | 1.8 kg |
| Memory | 45000 data records (ring memory) consisting of |
| particle counting, temperature and humidity, CO2, places and times | |
| Sample duration | 1 s ... 99 h adjustable |
| Power supply | 110 ... 240 V AC 50/60 Hz |
| Operating conditions | +5 ... +40 °C |
| up to 95% r.H. not condensing | |
| Storage conditions | 0 ... +50 °C |
| up to 98% r.H. not condensing | |
| CO2 Sensor | |
| Measuring range | 0 ... 5000 ppm |
| Resolution | 1 ppm |
| Accuracy | ±1 % of measuring range |
| Temp/humidity sensor internal | 0 ... +50 °C, 15 ... 90 % r.H. |
| Resolution | 0.5 °C |
| Accuracy | ±0.5 °C, ±2 % r.H. |
| Interface | Ethernet, USB |
| Optional interface | Wifi 802.11 b/g, RS485 or RS232 |
| Number of measuring channels | 6 |
| Housing material | stainless steel |
