Hygrometer PCE-EM 883
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

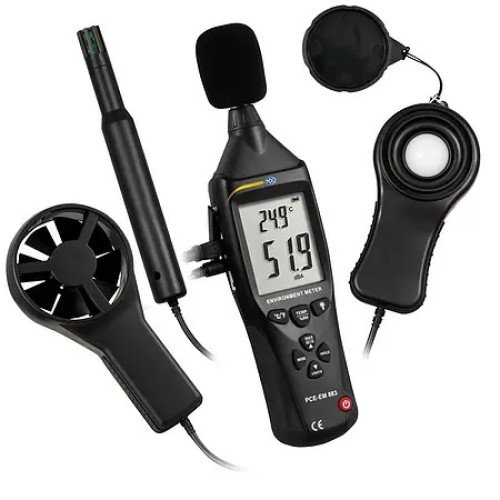

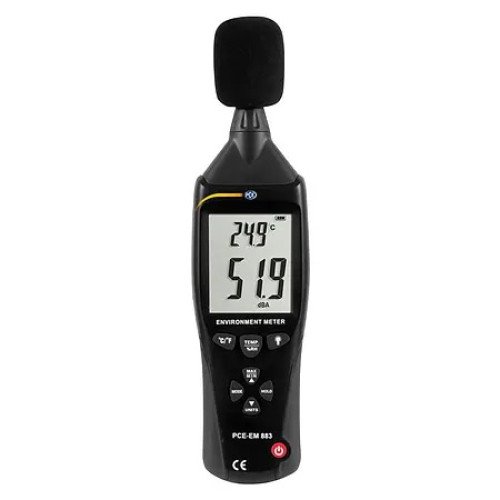

Hygrometer PCE-EM 883
Multifunctional environmental measuring instrument with extensive accessories / Measurement of sound, light, wind speed, temperature and humidity / Data Hold, MIN and Max function / Backlight
Multifunctional environmental measuring instrument with extensive accessories / Measurement of sound, light, wind speed, temperature and humidity / Data Hold, MIN and Max function / Backlight
Our multifunctional hygrometer PCE-EM 883 combines all important features for measuring the ambient conditions in one device. The hygrometer is designed as fast as possible to determine as many parameters as possible. Due to the large number of external sensors that the hygrometer brings with it, such fast and precise measurements are possible. Our multifunctional hygrometer is able to detect not only the sound level but also the temperature, the light, the wind speed and the humidity of the environment.
The compact meter allows one-handed operation as it has only eight buttons that are easily accessible. Because our hygrometer is a non-stationary device, non-stationary measurements can be made at various locations. The backlight supports this field of application, as it is possible to use the device in dark places, without limitation of readability.
Highlights
- Measurement of all relevant environmental parameters
- High measurement accuracy
- One-hand operation
- Backlit
- MIN, MAX, HOLD function
- Automatic shutdown
- High measurement accuracy
- One-hand operation
- Backlit
- MIN, MAX, HOLD function
- Automatic shutdown
Specification
| Wind speed | |
| Measuring range | 0.5 ... 30 m / s |
| Accuracy | ± 10% |
| Unit of measurement | m / s, km / h, ft / min, knots, mph |
| Temperature | |
| Measuring range | -40 ... 70°C / -40 ... 158°F |
| Accuracy | ± 2°C / 3.6°F |
| Unit of measurement | °C, °F |
| Resolution | 0.1°C / 0.18°F |
| Humidity | |
| Measuring range | 10 ... 95% rh |
| Accuracy | ± 5% rh |
| Resolution | 0.1% RH |
| Sound | |
| Measuring range | 35 ... 130 dB |
| Accuracy | ± 2 dB |
| Resolution | 0.1 dB |
| Display | 4 digits |
| Frequency range | 31.5 Hz ... 8 kHz |
| Frequency | dBA |
| Microphone | Electric condenser microphone |
| Applied standard | IEC61672-1 CLASS2 |
| Light | |
| Measuring range | 0 ... 200000 lx; 0 ... 20000 Fc |
| Spectral | CIE photo-optic (CIE sensitivity of a human eye) |
| Spectral accuracy | CIE Vλ function f1 '≤6% |
| Cosine behavior | f2 '≤ 2% |
| Accuracy | ± 15% |
| Measuring sensor | Silicon photodiode with filter |
| General specifications | |
| Data update | 1 x per second |
| Measurement functions | Maximum value (MAX) |
| Minimum value | (MIN) |
| Data Hold function | (Hold) |
| Automatic shutdown | After about 15 minutes of inactivity |
| Power supply | 1 x 9V block battery |
| Environmental conditions | -20 ... 60°C / -4 ... 140°F, 10 ... 90% rh |
| Storage conditions | -20 ... 60°C / -4 ... 140°F, 10 ... 90% rh |
| Dimensions | 252 x 66 x 33 mm / 9.9 x 2.6 x 1.3 in |
| Weight | 568 g / 1.3 lbs |
