Carbon Monoxide Meter Xgard Type 1 CO
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Intrinsically safe carbon monoxide meter Xgard Type 1 Carbon Monoxide, CO, 0 ... 250 ppm
With ATEX approval / For toxic gases and oxygen / 10 different versions available
With ATEX approval / For toxic gases and oxygen / 10 different versions available

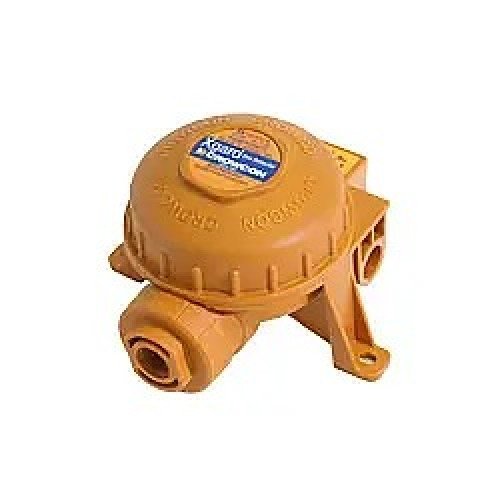

The Xgard Type 1 carbon monoxide meter is a robust, intrinsically safe gas sensor for toxic gases and oxygen. The Xgard Type 1 gas detector is available in 10 different versions, depending on the gases for which it is to be used. The gas measuring device measures the respective gases with the help of an electrochemical detector. The Xgard Type 1 can easily be connected to existing measuring and warning devices via the 2-wire 4 ... 20 mA output. The carbon monoxide meter also impresses with its easy installation and maintenance, as well as its robust construction made of glass fiber reinforced nylon, which is IP65 protected.
Highlights
- 10 different versions available
- Intrinsically safe construction with ATEX approval
- Electrochemical detector
- 2-wire 4 ... 20 mA output
- Easy installation and maintenance
- Robust housing made of glass fiber reinforced nylon
- IP 65
- Intrinsically safe construction with ATEX approval
- Electrochemical detector
- 2-wire 4 ... 20 mA output
- Easy installation and maintenance
- Robust housing made of glass fiber reinforced nylon
- IP 65
Specification
| Technical specifications | |
| Sensor type | electrochemical |
| Housing | ATEX certified: glass fiber reinforced nylon |
| Can be used in EX zones | 0, 1, 2 |
| Detectable gases (depending on the version) | 0...25 vol% O2 (oxygen) 0...2000 ppm H2 (hydrogen) 0...250 ppm CO (carbon monoxide) 0...50 ppm NH3 (ammonia) 0...5 ppm Cl (chlorine) 0...1 ppm O3 (ozone) 0...10 ppm SO2 (sulfur dioxide) 0...1 ppm PH3 (phosphane) 0...25 ppm H2S (hydrogen sulfide) 0...10 ppm NO2 (nitrogen dioxide) 0...25 vol% O2 (oxygen) |
| Response time | T90 T90 |
| Protection class | IP 65 |
| Signal output | 2-wire 4 ... 20 mA output |
| Cable inputs | M20 |
| Approval | ATEX: EX II 1 G Exia IIC T4 (Tamb -40 ... +55 °C / -40 ... 131 °F) UL/cUL: Cl I, Div 1 Groups A, B, C, D IECEx MED Marine (oxygen only) GOST-R |
| EMC compliance | EN 50270 FCC part 15 ICES-003 |
| Operating voltage | 8...30 V DC |
| Power consumption | 24 mA max. |
| Temperature range | -20 ... +50 °C / -4 ... 122 °F |
| Humidity | 15 ... 90 % RH |
| Dimensions | 156 x 166 x 111 mm / 6.14 x 6.53 x 4.37" |
| Weight | 0.5 kg / 1.1 lb |
