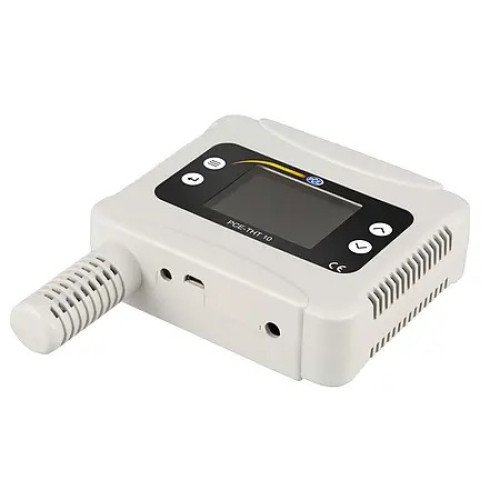

Temperature Data Logger PCE-THT 10
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Temperature data logger for wall mounting / Data memory for 12800 measuring points / Colour display /
Measuring range -20 ... 60 °C / Mains operation / Optionally with ISO calibration certificate
Measuring range -20 ... 60 °C / Mains operation / Optionally with ISO calibration certificate
The temperature data logger has a temperature measuring range of -20 ... 60 °C and a humidity measuring range of 0 ... 99.9% RH. The readings from the thermo-hygrometer can be read directly on the 2.3" colour display. With the data logger function, all readings from the thermo-hygrometer are stored on the 12800 measuring point memory. The thermo-hygrometer is therefore used to monitor the climatic conditions in offices, logistics, greenhouses or classrooms.
Analysis of the measured values recorded can be carried out with the software for the temperature data logger. If there are several thermo-hygrometers in a network, all of them can be controlled by the software at the same time. The thermo-hygrometer software can be found in the PCE Instruments download portal.
The temperature data logger is supplied with power via the 12 V DC mains power converter or the micro-USB interface. For wall mounting, there is a hole on the back to hook the thermo-hygrometer to screws. If required, the thermo-hygrometer can be equipped with an ISO calibration certificate.
Analysis of the measured values recorded can be carried out with the software for the temperature data logger. If there are several thermo-hygrometers in a network, all of them can be controlled by the software at the same time. The thermo-hygrometer software can be found in the PCE Instruments download portal.
The temperature data logger is supplied with power via the 12 V DC mains power converter or the micro-USB interface. For wall mounting, there is a hole on the back to hook the thermo-hygrometer to screws. If required, the thermo-hygrometer can be equipped with an ISO calibration certificate.
Highlights
- WiFi interface
- Data memory for 12800 measuring points

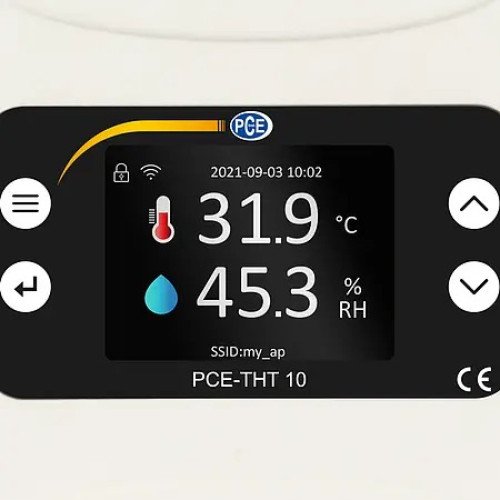

- 2.3" colour display
- Measuring ranges -20 ... 60 °C / -4 ... 140 °F, 0 ... 99.9 % RH
- For mounting on the wall
- Data memory for 12800 measuring points
- 2.3" colour display
- Measuring ranges -20 ... 60 °C / -4 ... 140 °F, 0 ... 99.9 % RH
- For mounting on the wall
Specification
| Temperature measurement | |
| Measuring range | -20 ... 60 °C / -4 ... 140 °F |
| Resolution | 0.1 °C |
| Accuracy | ±0.5 °C |
| Humidity measurement | |
| Measuring range | 0 ... 99.9 % RH |
| Resolution | 0.1 % RH |
| Accuracy | ±3 % RH |
| Further specifications | |
| Memory size | 12800 measuring points |
| Storage rate | 2 s |
| Display | 2.3" LC display |
| Interface | WLAN, Micro-USB (only for power supply) |
| WLAN frequency band | 2.4 GHz |
| Power supply mains adapter | primary: 100 ... 240 V AC, 50/60 Hz |
| secondary: 12 V DC, 1 A | |
| Power supply | Micro-USB, 5 V DC, 1 A |
| Ambient conditions | 0 ... 50 °C / 32 ... 122 °F, <95 % RH, non-condensing |
| Dimensions | 145 x 110 x 33 mm / 5.7 x 4.3 x 1.3" |
| Weight | 122 g / 4.3 oz |
