Closing Force Transducer
Closing force measuring device for doors and gates
Closing force measuring device for doors and gates

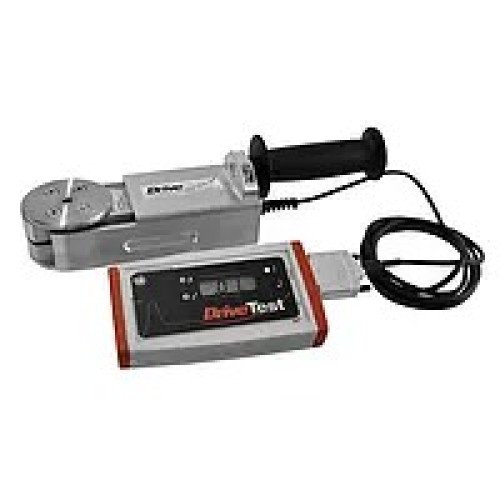

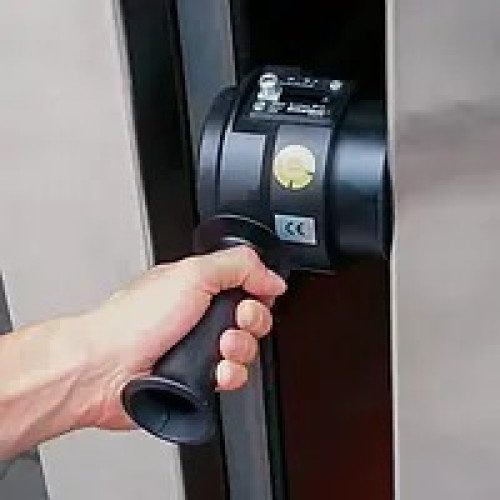

The closing force transducer is an electronic measuring device for externally powered doors and gates. Typical use is the final inspection of new systems as well as regular inspections. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.
In the case of cyclical measurements on systems with several doors and gates, a quick and easy implementation is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement process and the effort required for documentation.
With just a few operating steps, the measurements of a complete system can be taken over, printed out in tabular form and saved in a database. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.
In the case of cyclical measurements on systems with several doors and gates, a quick and easy implementation is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement process and the effort required for documentation.
With just a few operating steps, the measurements of a complete system can be taken over, printed out in tabular form and saved in a database. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.
Highlights
- Support of relevant standards – EN 12445/12453, EN 60335-2,
DIN V 18650, ASR A1.7, etc.
- Precise measurements
- Robust design
- Ease of use - operate with a single button or remotely via
Microsoft® DLL interface or National Instruments® LabView library
- Complete scope of delivery - including high-quality transport case and software
- Professional, comprehensive PC software – PinchPilot
- Comprehensive user support - calibration service, standard change service guaranteed
the application of the latest version of the standard
- Software support - integration into existing software structures possible
- Extensive systems can be measured in one run
DIN V 18650, ASR A1.7, etc.
- Precise measurements
- Robust design
- Ease of use - operate with a single button or remotely via
Microsoft® DLL interface or National Instruments® LabView library
- Complete scope of delivery - including high-quality transport case and software
- Professional, comprehensive PC software – PinchPilot
- Comprehensive user support - calibration service, standard change service guaranteed
the application of the latest version of the standard
- Software support - integration into existing software structures possible
- Extensive systems can be measured in one run
Specification
| FM 100 | |
| Measuring range | 0 ... 2000 N |
| Accuracy | +/– 3 N or 3 % of reading |
| Resolution | 1 N |
| Stiffness | 500 N/mm |
| Gap width | 50 mm / 1.9" |
| Diameter | 80 mm / 3.1" |
| Measuring principle | DMS transducer |
| Memory | 80 measurements |
| Acquisition frequency/rate | 500 Hz / 2 ms |
| Power supply SEB2 | battery 9 V block, e.g. 6LR61 |
| Battery voltage monitoring | yes |
| Environmental conditions | |
| Operating temperature range | -10 to +40 °C / 14 to 104 °F |
| Storage temperature range | -40 to +50 °C / -40 to 122 °F |
| Humidity | max. 90% rel.H, non-condensing |
| Dimensions | 210 x 80 x 50 mm / 8.2 x 3.1 x 1.9" |
| Weight | 2.1kg / 4.6 lb |
| Display device SEB2 | |
| - Data logger unit with LCD display and LED status indicators, control button, serial | |
| interface | |
| - Optional PC-controlled measurement | |
| - 9 V battery supply | |
| - Real time clock | |
| - Memory for 100 measurements | |
| - Sensor and PC interface | |
| - Peak value display and effective power display | |
| - Rating display i. O./n. i. O. | |
| PC evaluation software PinchPilot | |
| - Multilingual (DE, EN, IT, FR, ES) | |
| - Graphic representation of the force curve | |
| - Calculation of important parameters | |
| - Evaluation according to different guidelines (standards) | |
| - Possibility of entering self-defined guidelines | |
| - Log printout | |
| - Data export (Excel, CSV, PDF) | |
