Light Data Logger PCE-LMD 10
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Light data logger with external probe / Sampling rate 4 Hz / Measuring range 0 ... 400 kLux / Micro-USB interface / Units: lux, footcandle / Optionally with ISO calibration certificate

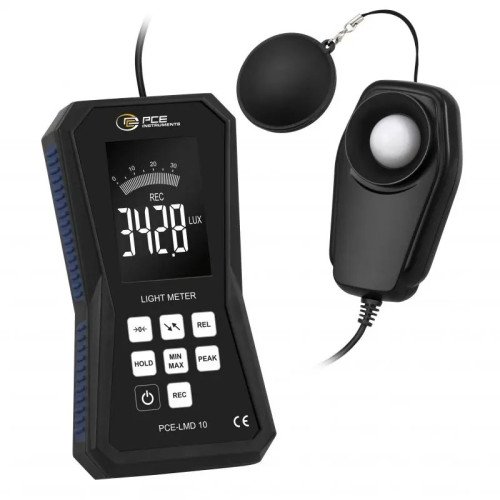

The light data logger has a large measuring range of 0 ... 400 kLux. The illuminance is measured using an external silicon photodiode with a spectral filter. This means that the light meter can be positioned appropriately for every measuring task. The measured values can be displayed by the light meter in lux and in footcandles. In addition to the normal measured value display on the light meter, the measured value is also displayed on a scale.
The light data logger has additional functions so that an analysis of the illuminance can be carried out. With the additional functions of the light meter, the largest and smallest measured value can be output using the "MIN" and "MAX" buttons. In addition, the displayed measured value can be set in relation to a reference using the "REL" button. With the "PEAK" function, the light meter records peak values. The light meter has a sampling rate of 10 µs.
The light data logger also has a data memory of 32,000 measured values. The measured values from the light meter can be read out and analyzed on the PC after a measurement. A live measurement on the PC with the light meter is also possible. The data from the light meter can be exported in CSV format for further processing.
The built-in 3.7V Li-Ion battery can be recharged from the light data logger via a 5V DC connection via the micro-USB interface. Due to its measuring range and its various functions, the light meter is used to control the lighting in greenhouses, at the workplace in production workshops or in photo studios, for example. Optionally, the light meter can be equipped with an ISO calibration certificate.
Highlights
- Rechargeable battery

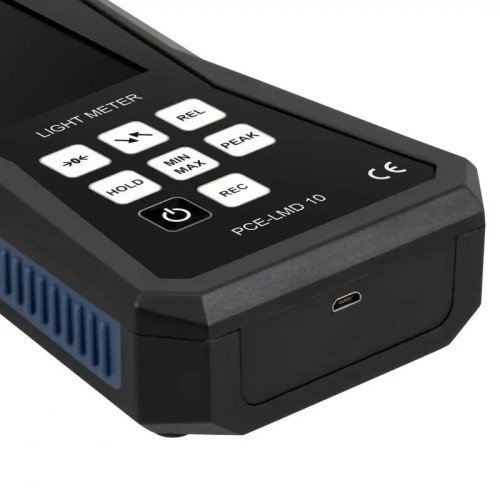

- Micro USB interface
- Measuring range 0 ... 400.0 kLux
- Lux and footcandle units
- LCD display with backlight
- Optionally with ISO calibration certificate
- Micro USB interface
- Measuring range 0 ... 400.0 kLux
- Lux and footcandle units
- LCD display with backlight
- Optionally with ISO calibration certificate
Specification
| Measuring range | 1000 ... 400,000 Lux |
| 0.0 ... 999.9 Lux | |
| Resolution | 1 Lux |
| 0.1 Lux | |
| Measuring range (footcandle) | 1000 ... 400,000 fc |
| 100 ... 999 fc | |
| 0.00 ... 99.00 fc | |
| Resolution | 1 fc |
| 1 fc | |
| 0.01 fc | |
| Accuracy | ±5 % of measured value ±10 digits with standard light A |
| ±10 % of measured value ±10 digits | |
| Repeatability | ±2 % |
| Sampling rate | 4 Hz |
| Sampling rate peak hold | 10 µs |
| Sensor | silicon photodiode with spectral filter |
| Battery status display | battery symbol appears, |
| when the battery voltage is too low. | |
| Interface | Micro-USB |
| Data storage | 32,000 measurement sets |
| Power supply battery | 3.7 V Li-Ion battery |
| Power supply USB | 5 V DC, 1 A |
| Operating conditions | -10 … 50 °C / 14 ... 122°F / <80 % RH, |
| non-condensing | |
| Storage conditions | -20 … 50 °C / -4 ... 122° / <80 % RH, |
| non-condensing | |
| Dimensions | meter: 162 x 88 x 32 mm / 6.4 x 3.5 x 1.3" |
| sensor: 102 x 60 x 25 mm / 4 x 2.4 x 1" | |
| Weight | ca. 320 g / 11.3 oz |
Delivery Scope
1 x Light data logger PCE-LMD 10
1 x USB Cable
1 x PC software
1 x Service bag
1 x Instruction Manual
1 x USB Cable
1 x PC software
1 x Service bag
1 x Instruction Manual
