Conductivity Data-logging Meter PCE-PHD 1-LF
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

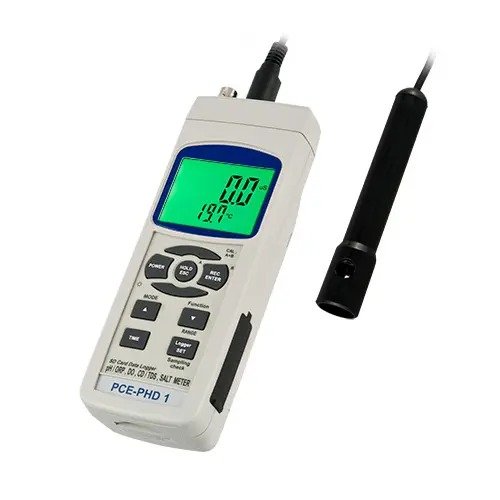

PCE-PHD 1-LF Multifunction Conductivity Data-Logging Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction Conductivity Data-Logging Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.
Temperature compensation guarantee a high level of accuracy even with variable temperature measurements. PCE-PHD 1-LF is supplied with a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. PCE-PHD 1-LF acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.
Highlights
- Compatibility with SD cards up to 16 GB
- The stored data is saved directly as an Excel file on the SD card (no software needed for evaluation)
- RS-232 interface for online data transmission
- High precision
- Low battery indication
- Large LC display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Automatic calibration
- Manual or automatic temperature compensation

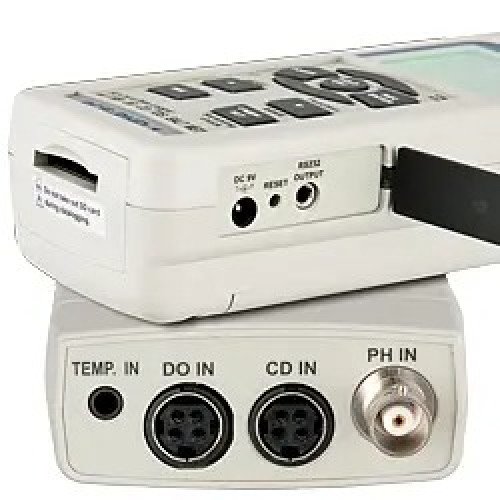

- BNC connector
- Suitable for laboratory and on-site measurement
- Electrode for conductivity included
Specification
| Conductivity | |
| Measurement range | 0 ... 200 µS/cm, 0.2 ... 2.0 mS/cm, 2 ... 20.0 mS/cm, 20 ... 200 mS/cm |
| Resolution | 0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm |
| Accuracy | ±2 % of the measurement range + 1 digit |
| Calibration | 1413 mS/cm |
| Temperature compensation | Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF) |
| General specifications | |
| Measurement rate | 1 second up to 8 hrs 59 mins 59 secs |
| Display | LCD 52 x 38 mm / 2 x 1.5" |
| Memory | SD card up to 16 GB (2 GB card included) |
| Interface | RS-232 |
| Software | Optional |
| Power supply | 6 x 1.5 V AA batteries (optional power adapter) |
| Operating conditions | 0 ... +50 ºC / < 85 % RH |
| Dimensions | 177 x 68 x 45 mm / 7.0 x 2.7 x 1.8" |
| Weight | 490 g / 1.1 lbs |
Delivery Scope

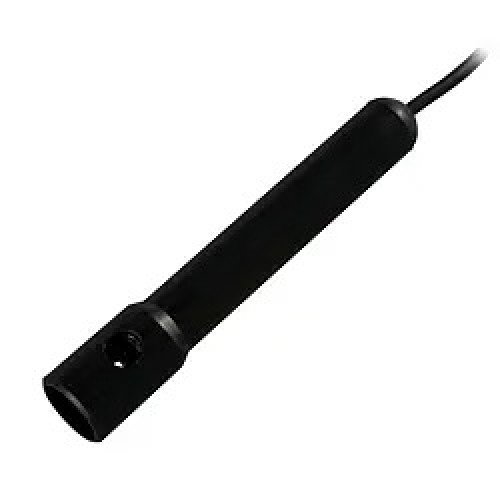

1 x conductivity electrode
1 x SD memory card 2GB
6 x 1.5 V AA batteries
1 x user manual
