Sound Level Data Logger PCE-SLD 10-ICA Incl. ISO Calibration Certificate
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

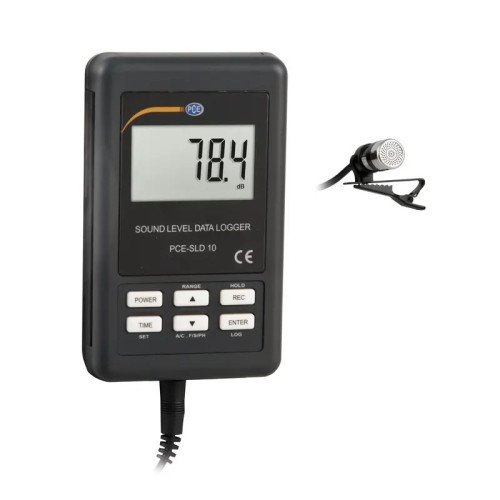

Sound level data logger PCE-SLD 10-ICA incl. ISO calibration certificate
Sound level data logger with 4 ... 20-mA output / Memory on SD card / Excel data logger / A & C rating / Large LC display
The sound level data logger PCE-SLD 10 is used for permanent monitoring of the sound level. In addition to storing the measured values, the sound level data logger is able to display the measured values on a display and output them as a 4 ... 20-mA analog value. The sound level data logger has a wide measuring range of 30 ... 130 dB. Frequency weighting is done in A or C depending on the selected measurement mode. Alternatively, the sound level data logger can measure the sound level in fast or slow mode.

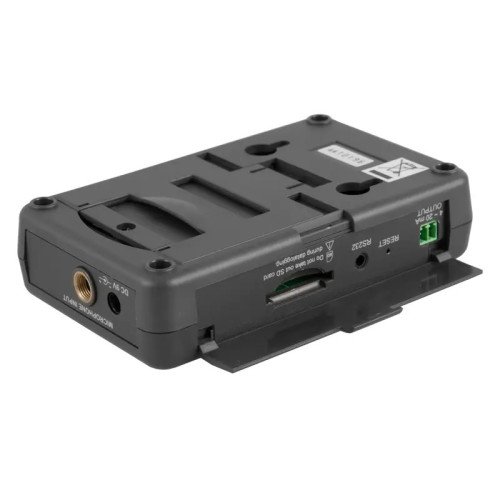

The measured values are stored by the sound level data logger as an Excel file on a memory card. This has the advantage that after a measurement, the SD memory card can be easily removed from the sound level data logger and the data can be evaluated without additional software. The PCE-SLD 10 sound level data logger is powered by 6 x 1.5V AAA batteries. For long-term operation, an external plug-in power supply is included in the sound level data logger.
The sound level data logger PCE-SLD 10 is used wherever the noise level has to be permanently monitored and a controller is to carry out further actions. In a production hall, for example, this can be the visualization of the sound level on a large display. Or, in conjunction with switchgear, closing windows and doors when the sound level is exceeded.
Highlights
- Wide measuring range up to 130 dB
- Analog output with 4 ... 20-mA
- Data interface

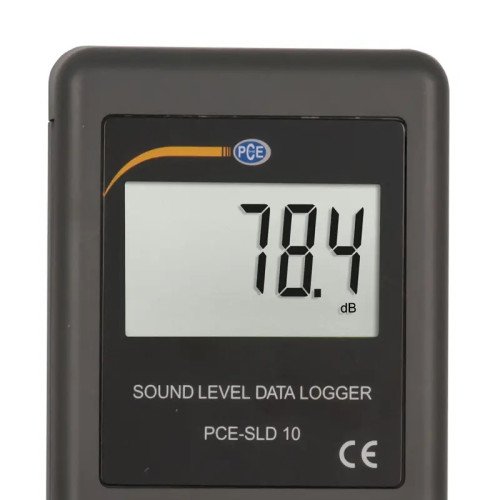

- LC display
- SD card memory up to 16 GB
- EXCEL storage
- External microphone
- Battery and mains operation

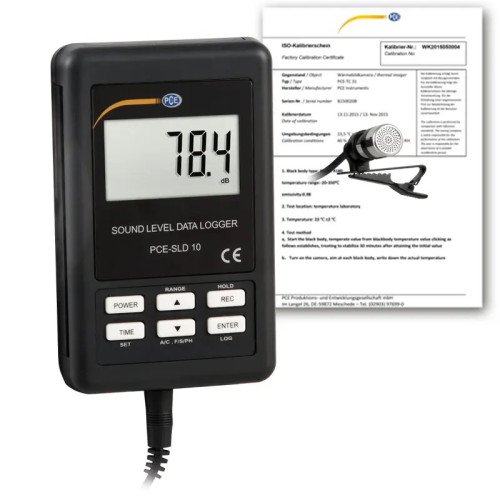

- Incl. ISO calibration certificate
- Analog output with 4 ... 20-mA
- Data interface
- LC display
- SD card memory up to 16 GB
- EXCEL storage
- External microphone
- Battery and mains operation
- Incl. ISO calibration certificate
Specification
| Measuring range | 30 ... 130 dB | |
| Measurement accuracy | Based on class 2 according to IEC61672 | |
| Resolution | 0.1 dB | |
| Frequency | A & C | |
| Term review | Fast: 125 ms | |
| Slow: 1 s | ||
| Frequency range | 31.5 Hz ... 8 kHz | |
| Measuring range selection | 30 ... 130 dB (auto) | |
| 30 ... 80 dB | ||
| 50 ... 100 dB | ||
| 80 ... 130 dB | ||
| Measurement functions | Hold by pressing a button | |
| Peak Hold | ||
| Max-Min | ||
| Analog output | 4 ... 20-mA
| |
Note: The scaling of the analog output depends on the selected measuring range.
| ||
| Adjustment | Via optional calibrator in an internal menu | |
| Data storage | SD card max 16 GB | |
| Storage rate | 5 s, 10 s, 30 s, 60 s, 120 s, 300 s, 600 s, 1800 s, 3600 s | |
| Memory error | <0.1% of the total stored data | |
| Refresh rate from the display | About 1 s | |
| Interface | Serial, for live visualization on computers | |
| (Data cable SOFT-LUT-USB sold separately) | ||
| Power supply | 6 x 1.5V AAA batteries | |
| 9V / 1 A power adapter | ||
| Automatic shutdown | After 10 minutes without operation | |
| Disabled when in power supply mode | ||
| Operating conditions | 0 ... 50°C / 32 ... 122°F, max. 85 rh | |
| Weight | About 230 g / < 1 lb | |
| Dimensions | Device: 132 x 90 x 32 mm / 5.2 x 3.5 x 1.3 in | |
| Microphone: 12.5 x 32 mm | ||
| Cable length: approx. 120 cm | ||
Delivery Scope
1 x Sound level data logger PCE-SLD 10
1 x Microphone
1 x Wall holder
1 x Memory card
1 x 4 ... 20 screw connectors
1 x Power adapter 9V / 1 A
1 x User manual
1 x ISO calibration certificate
1 x Microphone
1 x Wall holder
1 x Memory card
1 x 4 ... 20 screw connectors
1 x Power adapter 9V / 1 A
1 x User manual
1 x ISO calibration certificate
