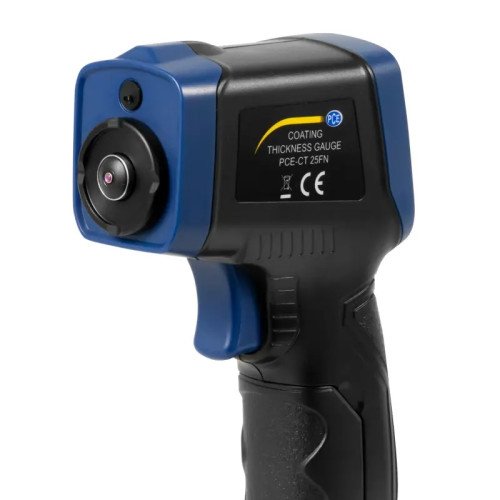

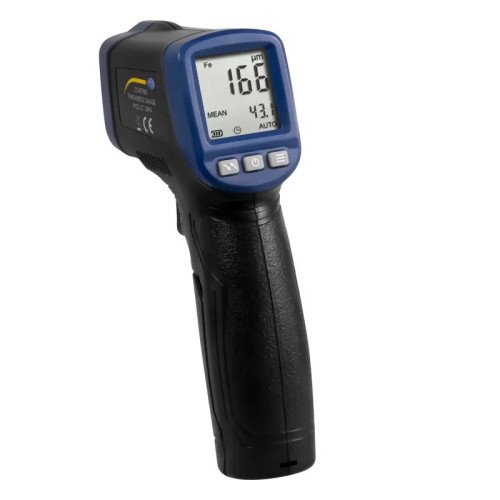

NDT Test Instrument PCE-CT 25FN
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
NDT Test Instrument with convenient one-hand operation / MIN MAX and MEAN display /
Battery indicator / various units / automatic shutdown /
for ferrous and non-ferrous metals / small and compact design
The NDT test instrument is used for the quick and precise detection of layer thicknesses on metals. In comparison to many other NDT test instrument, this NDT test instrument does not have to differentiate between ferrous and non-ferrous metal. With the small and compact design of the NDT test instrument, one-hand operation is possible. Despite its small size, the NDT test instrument has a measuring range of 1500 µm and an accuracy of ± (3% + 1 µm).

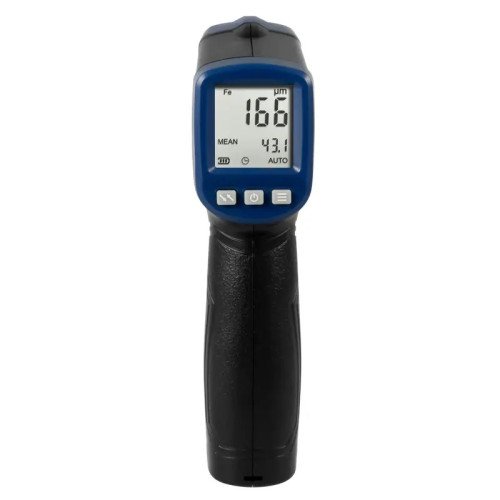

The measured values displayed can be output in µm, mm and in mils on the NDT test instrument. In addition to measuring the layer thickness, the NDT test instrument can determine the smallest, the largest and also the mean value from a series of different measurements. The NDT test instrument also has an automatic switch-off function.
Highlights
- small and compact design
- fast measuring frequency
- Calibration set included
- Different units can be selected
- also for continuous measurements

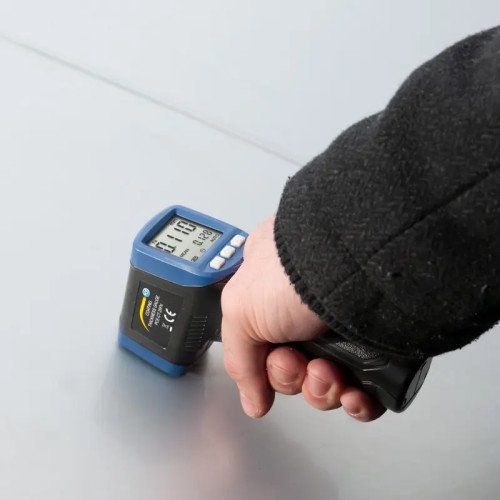

- comfortable one-hand operation
Specification
| Measuring range | 0 ... 1500 µm |
| Measurement accuracy | ± (3% + 1 µm) |
| resolution | 0.1 µm in the measuring range 0 ... 100 µm |
| 1 µm in the measuring range> 100 µm | |
| units | µm, mm, mils |
| Smallest curvature | convex 5 mm, concave 25 mm |
| Smallest measuring area | Ø 20 mm |
| Minimum thickness of the substrate | Fe: 0.3 mm |
| NFe: 0.05 mm | |
| Measuring rate | Max. 2 Hz |
| Power supply | 9 V block battery |
| Operating conditions | -10 ... 50 ° C, 20 ... 90% RH non-condensing |
| Storage conditions | -10 ... 60 ° C, 20 ... 90% RH non-condensing |
| Dimensions | 143 x 85 x 39 mm |
| Weight | approx. 100 g |
| Housing material | SECTION |
