NDT Test Instruments PCE-CT 27FN-ICA incl. ISO Calibration Certificate
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

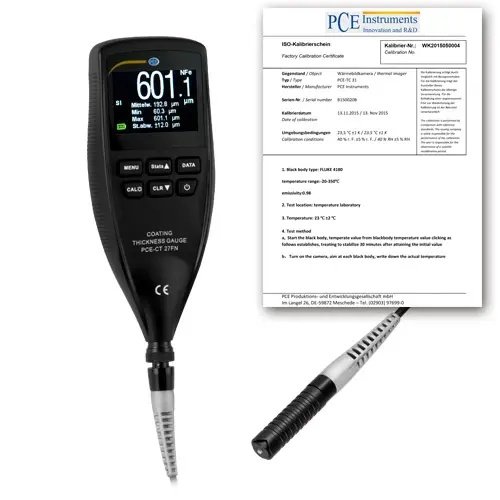

PCE-CT 27FN Thickness Gauge
PCE-CT 27FN is a Thickness Gauge that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Thickness Gauge is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.
Highlights

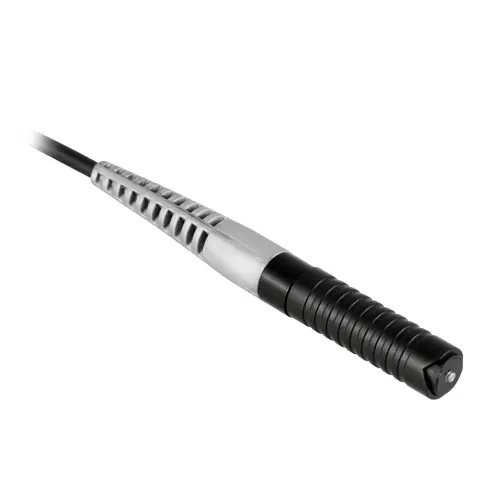

- features an external sensor with v-groove for reliable measurement on small cylindrical parts
- Includes a set of calibration standards for ferrous and non-ferrous metals

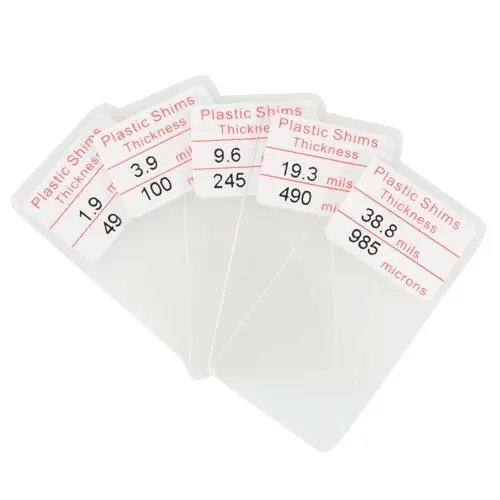

- supplied with a set of plastic shims or foils
- incl. ISO Calibration Certificate
- Includes a set of calibration standards for ferrous and non-ferrous metals
- supplied with a set of plastic shims or foils
- incl. ISO Calibration Certificate
Specification
| Technical specifications | |
| Measuring range | 0 ... 1250 µm / 0 ... 50 mils |
| Accuracy | ±(2 % + 2 µm) / ±(2 % + 0.1 mils) |
| Resolution | 0.1 µm / 0.1 mil |
| Operating temperatures | -10° C... +50° C / +14° F ... +122° F |
| Power | 2 x 1.5 V batteries |
| Dimensions | 166 mm x 68 mm x 30 mm 6.54 in x 2.68 in x 1.18 in |
| Weight | 0.180 kg / 0.40 lb |
