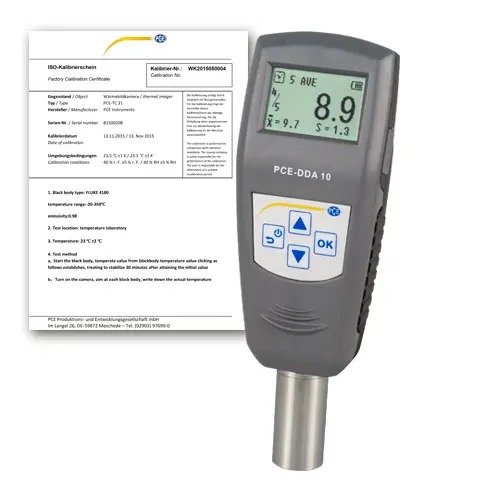

Material Tester PCE-DDA 10-ICA incl. ISO Calibration Certificate

Brand:
PCE Instruments
Product Code:
PCE-DDA 10-ICA
Availability:
In Stock
Delivery Time
2–3 Business Days

Need Technical Support?

Our engineers are available to help you select the right module for your application.

Description

Description

Digital Material Tester to measure Shore A hardness in shoft gums, rubber and elastomers with USB-Port and downloadable software

The PCE-DDA 10 Material Tester is an ergonomic device to check Shore hardness in gum, plastic and other non-metallic materials. It has been designed with a very high quality. The PCE-DDA 10 Material Tester is mainly used for soft gums, elastomers, natural rubber, neoprenes, casting resin, white PVC, leather, etc. If the material thickness is not enough, it should be layered and tightened on the back with the same material in order to increase its thickness.


Highlights

- Handheld device

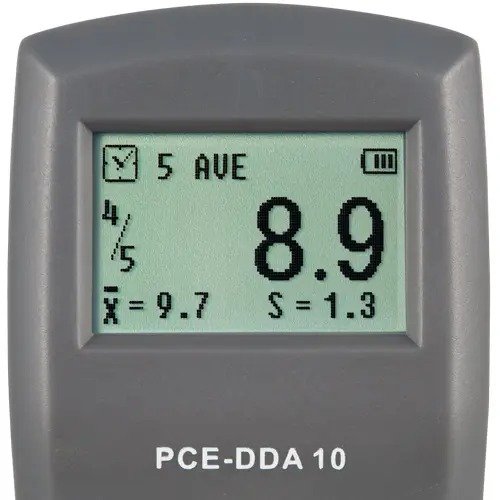

- Digital display
- Plastic case included
- For Shore A measurements
- Large display
- Single and Serial Measurements
- Data transfer to pc
- Incl. ISO Calibration Certificate

Specification

Measurement range 0 ... 100 Shore A
Resolution 0.1
Accuracy < ± 1

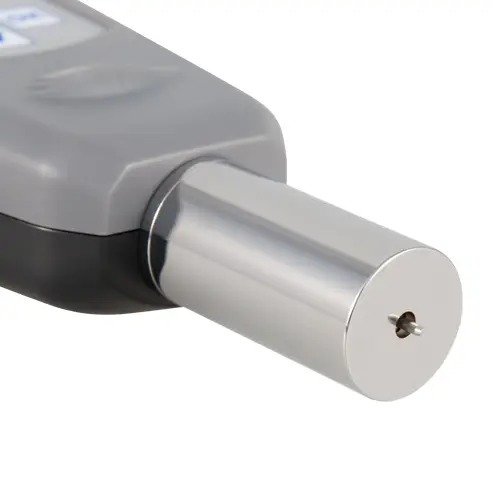

Indenter

 35°± 0.25°

Memory Saves up to 500 measurements
Dimensions 153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (main body)
Weight Approx. 300 g / < 1 lb
Power supply 3.6V rechargeable Ni-MH battery
Max. operating time    Up to 20 h continuous use at full charge
Charging time Approx. 3 h
Standards GB/T 531.1, ISO 7619-1, ASTM D 2240

Delivery Scope

1 x PCE-DDA 10 Material Tester
1 x Power Supply
1 x Standard calibration plate
1 x Case
1 x Battery
1 x User's manual
1 x ISO Calibration Certificate

Downloads

Datasheet
