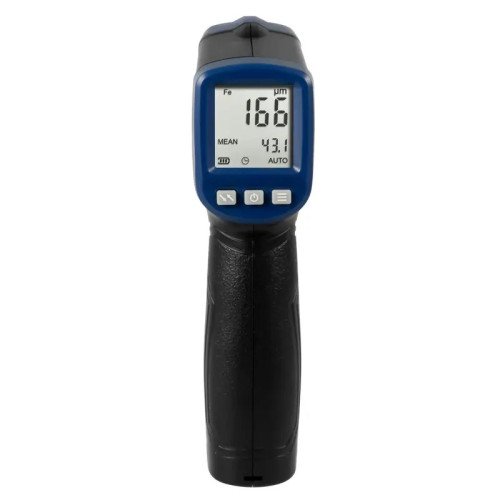

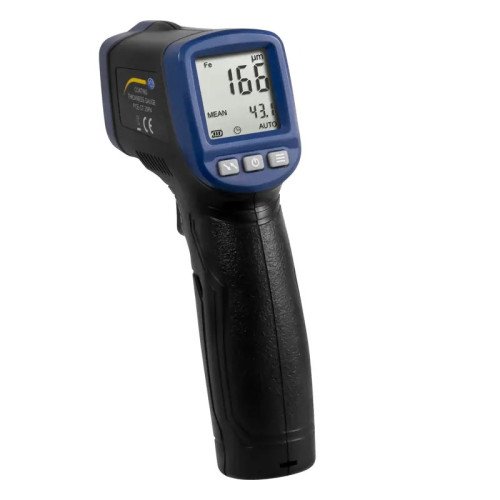

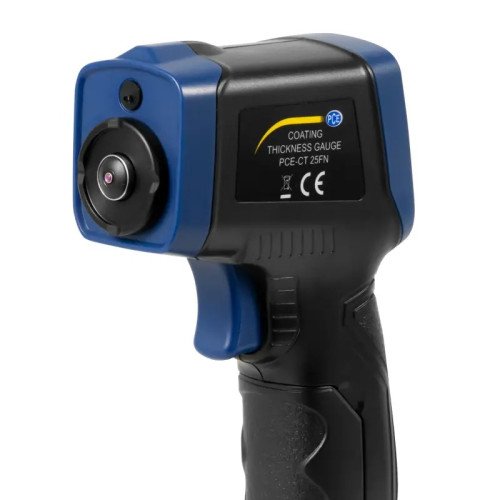

Material Thickness Meter PCE-CT 25FN
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Material Thickness Meter with convenient one-hand operation / MIN MAX and MEAN display /
Battery indicator / various units / automatic shutdown /
for ferrous and non-ferrous metals / small and compact design

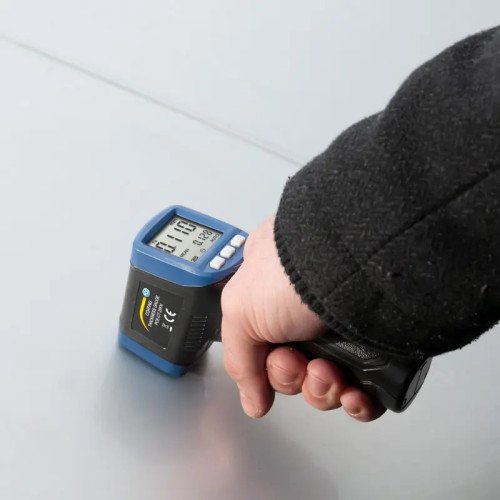

The material thickness meter is used for the quick and precise detection of layer thicknesses on metals. In comparison to many other material thickness meter, this material thickness meter does not have to differentiate between ferrous and non-ferrous metal. With the small and compact design of the material thickness meter, one-hand operation is possible. Despite its small size, the material thickness meter has a measuring range of 1500 µm and an accuracy of ± (3% + 1 µm).
The measured values displayed can be output in µm, mm and in mils on the material thickness meter. In addition to measuring the layer thickness, the material thickness meter can determine the smallest, the largest and also the mean value from a series of different measurements. The material thickness meter also has an automatic switch-off function.
Highlights
- small and compact design
- fast measuring frequency
- Calibration set included
- Different units can be selected
- also for continuous measurements
- comfortable one-hand operation
Specification
| Measuring range | 0 ... 1500 µm |
| Measurement accuracy | ± (3% + 1 µm) |
| resolution | 0.1 µm in the measuring range 0 ... 100 µm |
| 1 µm in the measuring range> 100 µm | |
| units | µm, mm, mils |
| Smallest curvature | convex 5 mm, concave 25 mm |
| Smallest measuring area | Ø 20 mm |
| Minimum thickness of the substrate | Fe: 0.3 mm |
| NFe: 0.05 mm | |
| Measuring rate | Max. 2 Hz |
| Power supply | 9 V block battery |
| Operating conditions | -10 ... 50 ° C, 20 ... 90% RH non-condensing |
| Storage conditions | -10 ... 60 ° C, 20 ... 90% RH non-condensing |
| Dimensions | 143 x 85 x 39 mm |
| Weight | approx. 100 g |
| Housing material | SECTION |
Delivery Scope
1 x Material Thickness Meter PCE-CT 25FN
5 x calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x 9 V block battery
1 x instruction manual
