Material Thickness Meter PCE-CT 27FN
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

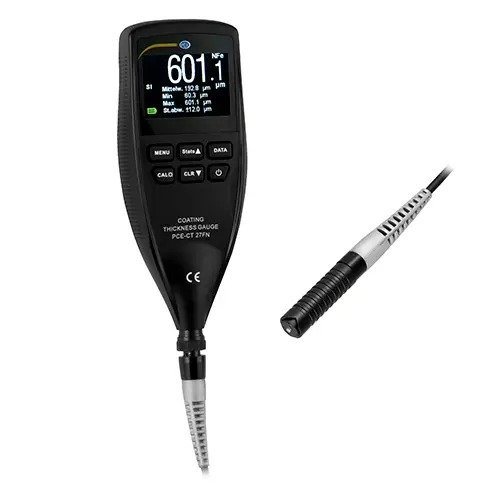

Material Thickness Meter PCE-CT 27FN
PCE-CT 27FN is a material thickness meter that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this material thickness meter is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.
Highlights
- Includes a set of calibration standards for ferrous and non-ferrous metals
- Comes with a set of plastic shims or foils
Specification
| Measuring range | 0 ... 1250 µm / 0 ... 50 mils |
| Accuracy | ± (2% + 2 µm) / ± (2% + 0.1 mils) |
| Resolution | 0.1 µm / 0.1 mil |
| Operating temperatures | -10 ... 50°C / 14 ... 122°F |
| Power | 2 x 1.5V batteries |
| Dimensions | 166 mm x 68 mm x 30 mm 6.54 in x 2.68 in x 1.18 in |
| Weight | 0.180 kg / < 1 lb |
Delivery Scope
1 x Material Thickness Meter PCE-CT 27FN
1 x Set of calibration standards

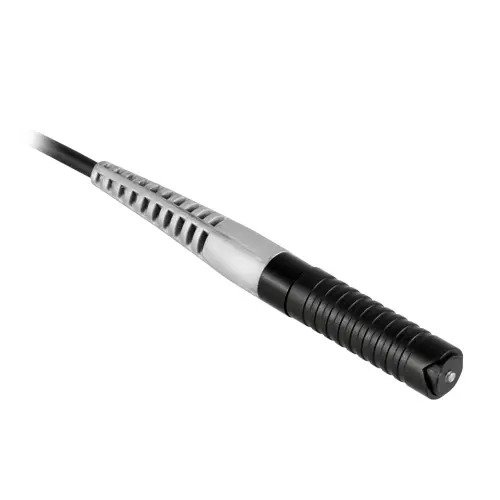

1 x Probe with 1 m / 3.28 ft long cable
1 x Set of plastic shims
1 x Carrying case
2 x 1.5V batteries
1 x User manual
