Hardness Tester PCE-DD-D Shore D
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

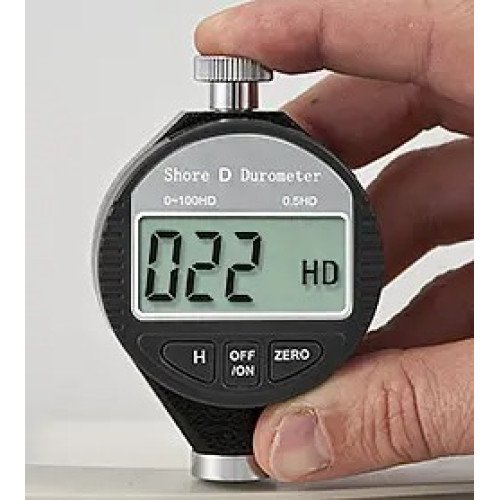

PCE-DD-D Hardness tester
PCE-DD-D is a Shore D durometer or hardness tester used to measure the Shore hardness of materials such as hard rubber, hard resin, acrylic, glass, thermoplastic and more. This Shore D hardness tester uses an impact rod with a 30º conical point and 50 Newtons (N) of force to make a surface indentation on material samples with a minimum thickness of 6 mm or 0.24 in. (Note: If a material sample does not meet the minimum thickness required, the sample should be reinforced on the back with more of the same material.)
Highlights
- For Shore D hardness testing
- Ideal for use with hard rubber, hard resin, acrylic, glass, thermoplastic, etc.
- Handheld, portable, digital measuring device
- Measurement range: 0 ... 100 Shore D
- Accuracy: ± 2 Hardness - Grade
- Large, easy-to-read display
- Hold functionality
- Ideal for use with hard rubber, hard resin, acrylic, glass, thermoplastic, etc.
- Handheld, portable, digital measuring device
- Measurement range: 0 ... 100 Shore D
- Accuracy: ± 2 Hardness - Grade
- Large, easy-to-read display
- Hold functionality
Specification
| Measurement range | 0 ... 100 Shore D |
| Resolution | 0.5 Hardness - Grade |
| Accuracy | ± 2 Hardness - Grade |
| Depth of indentation | 0.0 ... 2.5 mm / 0.0 ... 0.01 in |
| Pressure force | 5 kg / 11.02 lbs |
| Indenter | 30° |
| Dimensions | 85 mm x 60 mm x 25 mm / 3.3 in x 2.36 in x 0.4 in |
| Power supply | 1 x 1.5V (SR44) |
| Weight | 300 g / < 1 lb |
