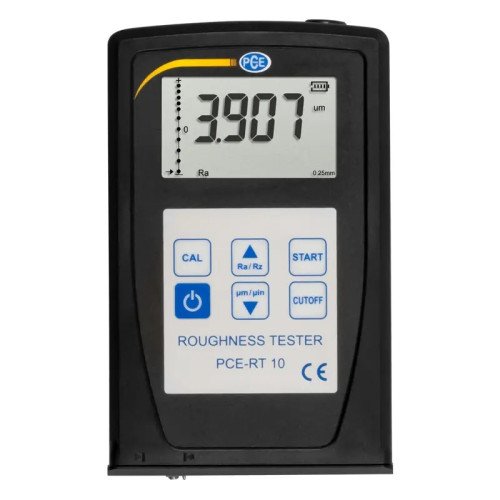

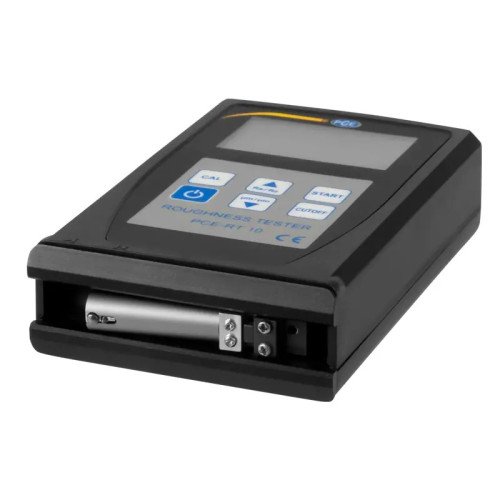

Material Surface Roughness Tester PCE-RT 10-ICA Incl. ISO Calibration Cert.
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Measurement range covers Ra and Rz /
The Material Surface Roughness Tester PCE-RT 10-ICA is a small, lightweight device with simple navigation. Despite the fact that the device functions on a very complex and elaborate level, the measurement results can be gained quickly and easily. Due to its rugged design the device has a long lifetime. This device is calibrated on ISO, DIN, ABSI and JIS standards. The surface texture meter can be applied for various mechanical manufacturing processes as a controlling equipment. The device indicates all calculated measurement results on its LCD display any time. In order to measure the roughness of a surface, the sensor is to be placed onto that surface. Afterwards the sensor samples evenly the surface following its guide rail. Now the device will calculate the measuring values. Thus the indicated values are a result of the sensor's movement, while it is induced with electricity. The fast DSP processing supports quick measurements results, which are then shown on the surface texture meter's display.
Highlights
- Ra and Rz measurement range
- Induction principle
- LCD display with background lights
- With threshold function
- Easy to transport
- Easy handling
- Diamond sensor
- Low fluctuation on display
- Incl. ISO calibration certificate
Specification
| Standards | GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1 |
| Display | LCD |
| Parameters | Ra, Rz |
| Range | Ra: 0.05~10.00 µm Rz: 0.1~50.0 µm |
| Accuracy | ±15 % |
| Fluctuation of Display Value | 10 % |
| Resolution | 0,001 / 0,01 / 0,1 |
| Sensor | |
| Radius of Probe Pin | 10 µm |
| Material of Probe Pin | Diamond |
| Measurement Force of Probe | 16 mN(1.6gf) |
| Probe Angle | 90º |
| Vertical Radius of Guiding Head | 48 mm |
| Maximum Driving Stroke | 12,5 mm / 0,5 inch |
| Cutoff length(l) | 0,25 mm, 0,8 mm, 2,5 mm |
| Driving Speed | |
| Sampling | when Length = 0,25 mm,Vt = 0,135 mm/s |
| Sampling | when Length =0,8 mm, Vt = 0,5 mm/s |
| Sampling | when Length =2,5 mm,Vt = 1 mm/s |
| Returning | Vt = 1 mm/s |
| Evaluation Length | 1~2L Optional |
| Operating Conditions | Temp: 0 ~ 50 ºC Humidity: <80 % RH |
| Power Supply | 4 x 1.5 V AA (UM-3) Battery |
| Dimensions | 128 x 80 x 30 mm |
| Weight | 280 g |
Delivery Scope
1 x Precision reference standard
4 x 1.5V AA batteries
1 x User manual
1 x Carrying case
1 x ISO calibration certificate
