Multifunction Humidity Detector

Product Code:
PCE-AM 45
Availability:
In Stock
Delivery Time
2–3 Business Days

Need Technical Support?

Our engineers are available to help you select the right module for your application.

Description

Description

Multifunction Humidity Detector with Beaufort scale / Wind direction display / Measuring range 0.3 ... 45.0 m/s / 0.9 ... 147 ft/s / Data memory for 960 measured values ​​/ Software for transferring the measured values ​​/ Velocity and volume flow measurement

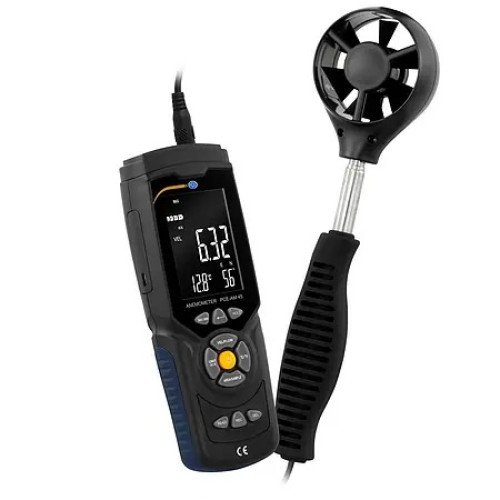

The multifunction humidity detector determines the wind speed via an impeller with a diameter of 65 mm / 2.5". The anemometer can reliably determine the speed in a measuring range of 0.3 ... 45.0 m/s / 0.9 ... 147 ft/s. In addition to the speed measurement with the anemometer, a volume flow measurement can also be carried out. In addition to the normal measured value display on the anemometer, a Beaufort scale is stored. The wind strength level is displayed directly on the Beaufort scale on the anemometer.

Depending on the orientation of the impeller, the multifunction humidity detector can also be used to determine the wind direction. This is made possible by the anemometer's built-in gyroscope. At the same time, the current ambient temperature between 0 … 45 °C / 32 ... 113 °F is displayed on the anemometer. For optimal alignment, the telescopic arm of the anemometer can be extended up to 315 mm / 12.4".

With the integrated data memory of 960 measured values, individual measured values ​​can be saved on the multifunction humidity detector at the touch of a button. All measured values ​​can then be transferred to a PC via the micro USB data interface. With the software in the PCE download portal, the values ​​measured by the anemometer can be analyzed and further processed. Live measurement on the PC is also possible with the anemometer and the software.

Highlights

- Battery operation for mobile use
- Telescopic probe with a length of 270 ... 540 mm / 10.63 … 21.26“
- Impeller opening of 65 mm / 2.5"
- Velocity and volume flow measurement
- Measuring range 0.3 ... 45.0 m/s / 0.9 ... 147 ft/s
- Backlit LC display

Specification

Wind speedm/s
Measuring range0.3 ... 45.0 m/s
Resolution0.01 m/s
Accuracy±3 % ±0.1 m/s of measured value

Wind speedft/min
Measuring range60 ... 8800 ft/min
Resolution0.01, 0.1, 1 ft/min
Accuracy±3 % ±20 ft/min of measured value

Wind speedknots
Measuring range0.6 ... 88.0 knots
Resolution0.01 knots
Accuracy±3 % ±0.2 knots of measured value

Wind speedkm/h
Measuring range1.0 ... 140.0 km/h
Resolution0.01 km/h
Accuracy±3 % ±0.4 km/h of measured value

Wind speedmph
Measuring range0.7 ... 100 mph
Resolution0.01 mph
Accuracy±3 % ±0.2 mph of measured value

Wind direction
Measuring range0 ... 360 °
Resolution1 °
Accuracy- - -

Volume flowCMM (m³/min)
Measuring range0 ... 999900 m³/min
Resolution0.001 ... 100 m³/min
Adjustable area0.001 ... 999 m²

CFM (FT³/min)
Measuring range0 ... 999900 ft³/min
Resolution0.001 ... 100 m³/min
Adjustable area0.001 ... 999 m³

Temperature measurement °C
Measuring range0 ... 45 °C
Resolution0.1 °C
Accuracy±1.0 °C

°F
Measuring range32 ... 113 °F
Resolution0.18 °F
Accuracy±1.8 °F

Moisture measurement
Measuring range10 ... 90 % RH
Resolution0.1 % RH
Accuracy±5 % RH

Further specifications
Probe length270 ... 540 mm / 10.63 … 21.26"
Probe openingØ65 mm / 2.5"
InterfaceMicro USB
Data memory960 measured values
Power supply4 x 1.5 V AAA batteries
Power consumption15 ... 20 mA without background lighting
 20 ... 25 mA with background lighting
 0 ... 8 µA standby
Battery discharged display
<4.5 V
Operating conditions0 ... 50 °C / 32 ... 122 °F, 40 ... 80 % RH, non-condensing
Storage conditions-20 ... 60 °C / -4 ... 140 °F, < 80 % RH, non-condensing
Dimensions70 x 194 x 35 mm / 2.7 x 7.6 x 1.3"
Weight400 g / 14.1 oz
