Humidity Detector
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Humidity Detector PCE-CMM 10
CO2 meter / Battery operation / Alarm limits / 400 ... 5000 ppm / Temperature measurement / Visual and acoustic alarm / Automatic switch-off / USB charging / Units can be changed / LC display / Temperature range -10 ... 50°C (4 ... 122°F)
CO2 meter / Battery operation / Alarm limits / 400 ... 5000 ppm / Temperature measurement / Visual and acoustic alarm / Automatic switch-off / USB charging / Units can be changed / LC display / Temperature range -10 ... 50°C (4 ... 122°F)

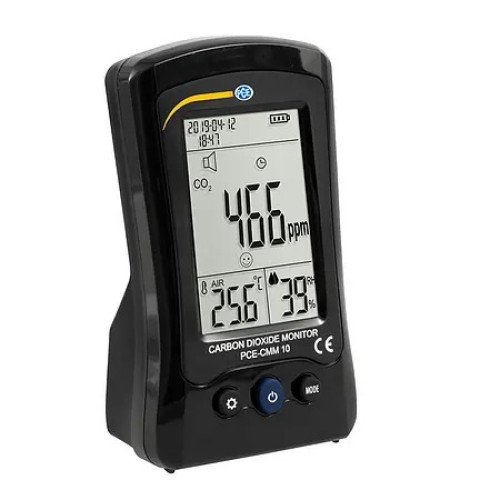

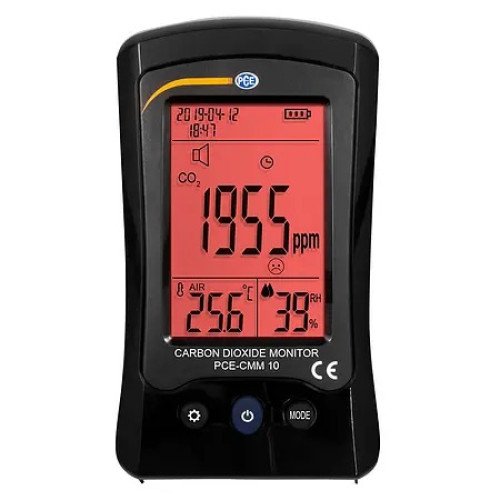

The CO2 measuring device PCE-CMM 10 is a multi-function measuring device for measuring the air quality. This CO2 meter measures synchronously the CO2 concentration, the air temperature and the humidity. In addition, the CO2 meter has permanently programmed alarm limits. As soon as the currently measured CO2 measured value exceeds the alarm limit, the alarm is activated. The user is alerted to the CO2 meter by an audible and visual signal.
Using the built-in USB interface, you can continuously charge the CO2 meter to your PC workstation, for example. Thanks to the small blue shape, you can optimally position the CO2 meter at your workplace. Due to the 3 inch display and the strong backlight, you can read the measured values optimally.
Highlights
- CO2 measurement
- Battery operation
- Limit exceeded
- Backlight
- Air temperature
- Table housing
- Humidity
- Beep
- Battery operation
- Limit exceeded
- Backlight
- Air temperature
- Table housing
- Humidity
- Beep
Specification
| Measuring range CO2 | 400 ... 5000 ppm |
| Resolution | 1 ppm |
| Accuracy | ± (5% + 50 ppm) between 400 ... 2000 ppm |
| and an atmospheric pressure of 1013 mbar | |
| Measuring range temperature | -10.0 ... 50.0°C / 14 ... 122°F |
| Resolution | 0.1°C / 0.18°F |
| Accuracy | ± 1°C / 1.8°F |
| (can be influenced by its own waste heat) | |
| Measuring range humidity | 0 ... 99% rh |
| Resolution | 1% rh |
| Accuracy | ± (5% at 25°C / 77°F) between 10 ... 90% rh |
| Sensor | NDIR principle |
| ABC | Automatic baseline correction |
| Audio alarm | Buzzer |
| Visual alarm | Red backlight |
| Display | 3 inch LC display |
| battery indicator | Four-level display |
| display frequency | 3 seconds |
| Automatic shutdown | turns itself off after 2 hours |
| Backlight | White backlight |
| Working conditions | 0 ... 50°C / 32 ... 122°F, 0 ... 85% rh |
| Storage conditions | -20 ... 60°C / -4 ... 140°F, 0 ... 95% rh |
| Power supply | Built-in 3.7V DC battery |
| Weight | 195 g / < 1 lb |
| Dimensions | 75 x 55 x 130 mm / 3 x 2.2 x 5.1 in |
