Humidity Detector for Wood PCE-WMH 3
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
PCE-WMH-3 Humidity Detector for Wood
Features preset characteristic curves for measuring 270 different wood types

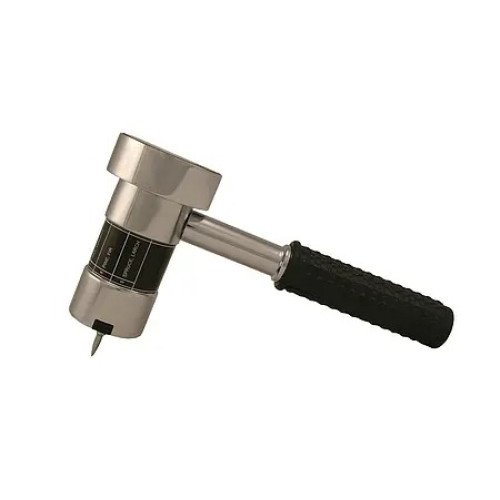

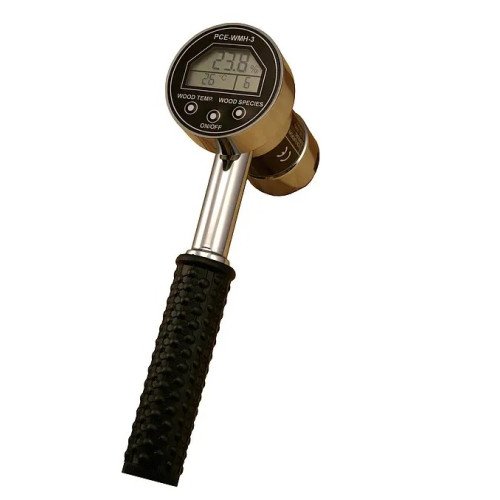

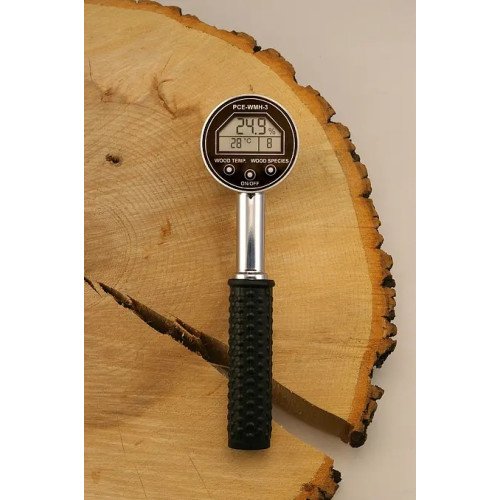

PCE-WMH-3 is a portable handheld digital humidity detector used to measure the moisture content of wood. This hammer-style humidity detector features preset characteristic curves for measuring moisture in 270 different wood types.
A table of exotic wood type coefficient values is provided in the user manual to allow for proper calculation. The table lists coefficient values for exotic wood types including but not limited to Gonzales Alves, Pine, Brazilian-Rosewood, Chipboard, Cedar, Dogwood, European Aspen, Elm, Oak, Juniper, Maple, Ash, Quebracho Blanco and Colorado, Sandalwood, Mahagony, Olive, Umbrella, Pear, Persimmon, African Walnut, Teak, Willow and more.
Highlights
- Preset characteristic curves for 270 wood types
- Automatic temperature compensation
- Compact, handheld, portable
- Easy-to-read LCD screen
- No preparation required
- Battery powered
Specification
| Measurement range | 6 ... 60 % moisture content |
| Accuracy | ±1 % (within 6 ... 12 % range), ±2 % (13 ... 28 %), ±2 %(29 ... 60 %) |
| Resolution | 0.1 % |
| Number of different wood types | 270 |
| Wood temperature range | -10 ... +60 ºC / 14 ... 140 °F |
| Display | LCD |
| Electrode dimensions | Approx. 3.5 x 12 mm / 0.1 x 0.4", 2.5 x 8 mm / 0.09 x 0.3", 2 x 6 mm / 0.07 x 0.2" diameter |
| Power supply | 1 x 12V 23A battery |
| Battery life | Approx. 10000 measurements |
| Unit dimensions | Approx. 180 x 80 x 42 mm / 7 x 3.1 x 1.6" |
| Unit weight | Approx. 0.8 kg / 1.77 lbs |
