Humidity Detector PCE-MA 60XT
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Precision moisture analyzer scale up to max. 60 g sample weight / measuring resolution 0.1 mg = 0.0001 g = 0.001 % moisture content
drying temperature up to 160°C / 5" touch color display / internal product database / measurement data can be stored as TXT file directly on USB stick

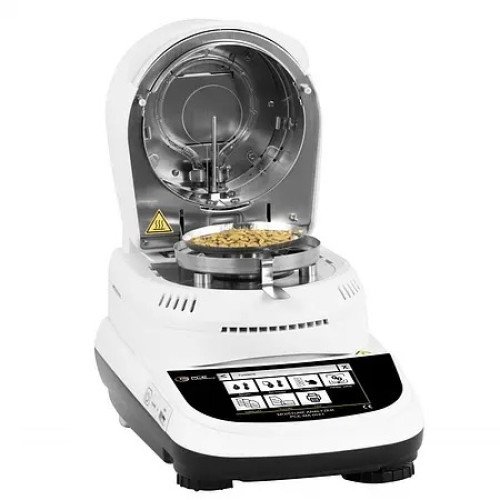

The precision moisture analyzer balance enables accurate and simple moisture determination in a wide range of materials. The sample is automatically weighed, dried and the weight loss is displayed as moisture content. This measuring principle therefore requires no time-consuming curve generation and is ready for immediate use shortly after set-up.
For the weighing task, the precision moisture analyzer balance has an electromagnetic load cell installed that registers the weight loss with a measurement resolution of 0.1 mg = 0.0001 g. For drying the sample, a moisture analyzer cell is installed in the sample chamber. To dry the sample, a 400 watt halogen round lamp installed in the lid is used to ensure uniform heat distribution.
To avoid burning the sample, the user of the moisture analyzer balance can access the internal product database or set the drying temperature between 35 °C and 160 °C in 1 °C steps, product specific. The product database has preset drying parameters that can be easily expanded and changed by the user.
Highlights
- Sample weight max. 60 g
- Readability 0.1 mg = 0.0001 g = 0.001 % humidity
- Round 400 watt IR halogen lamp
- Drying temperature adjustable from 35 °C up to 160 °C in 1 °C steps
- Sample dish size Ø100 mm / h= 8 mm
- 5" color touch display
- Memory for up to 300 performed moisture determinations

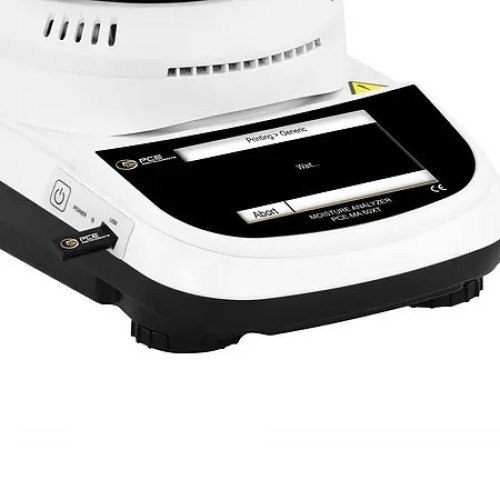

- Data transfer as TXT file to USB stick directly possible
- User database / product database / measurement database
Specification
| Measuring principle | Gravimetric moisture determination |
| Weighing range (Max) | 60 g |
| Readability | 0.1 mg / 0.0001 g / 0.001 % humidity |
| Weighing electronics | Electromagic force compensation cell |
| Repeatability | Weight measurement ± 0.0003g |
| Moisture measurement | ± 0.18 % (referred to 2 g sample) |
| Sample weight | Min. 2 g / Max. 60 g |
| Sample area | approx. Ø 100 mm / height max. 25 mm |
| Determination options | Moisture content % / Dry content % / ATRO % / Weight |
| End of measurement | no weight loss / time lapse / manual |
| Drying temperature range | +35 ... +160 °C in 1°C steps |
| Heating profiles | Standard / Fast / Mild / Steps |
| Heating element | 400 Watt IR round heater |
| Databases | 300 measurement protocols performed |
| Drying database | for over 30 products |
| User database | for 10 users |
| Interface | RS-232 / USB-A for USB stick |
| Display | 5" touch color display |
| Menu language | German / English / French / Italian / Spanish |
| Power supply | 220 V / 50 Hz |
| PCE-MA 60XT-US | 110 V / 50 Hz |
| Dimensions | 345 x 215 x 235 mm |
| Weight | 6,1 kg |
| Recommended calibration weight | 50 g |
