Humidity Detector PCE-DPM 10
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

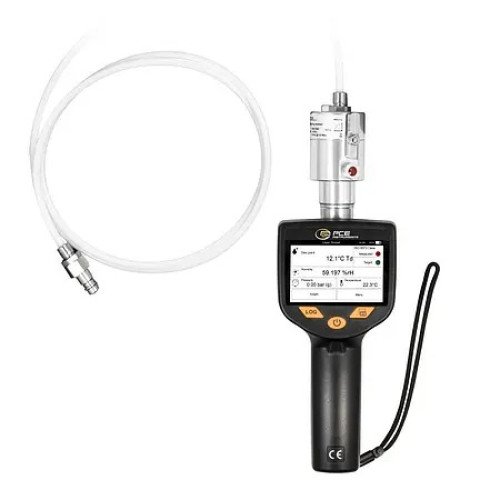

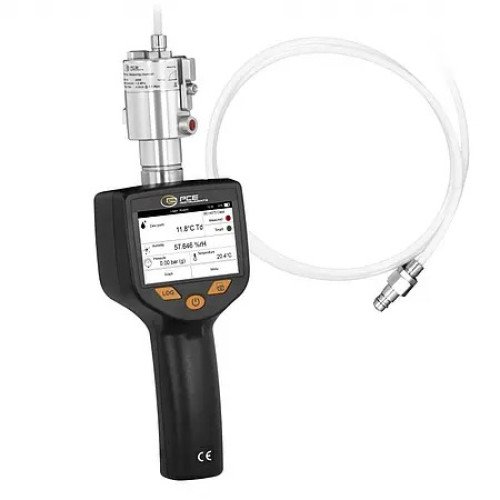

Humidity Detector for pressure systems / precise measurement / alarm limits / battery-operated handheld device / touch display
The precise humidity detector from PCE Instruments enables the reliable measurement of humidity and temperature in a measuring range of up to 15 bar. The humidity detector is versatile and provides accurate results for air and various gases.
The humidity detector offers a robust and handy design, the housing of the humidity detector was specially developed for industrial applications.
The operation of the humidity detector is particularly easy thanks to the touch display, which further emphasises the user-friendliness of the humidity detector. The humidity detector offers the option of storing your own calibration data, e.g. to quickly adjust the pressure to the current atmosphere.
In addition, the humidity detector is able to display the humidity in many different units of measurement, saving the user the hassle of converting the values. The quick coupling included in the scope of delivery enables the humidity detector to be used quickly and also saves time during measurement.
In addition, the humidity detector has a humidity detector function for up to 100 million measured values. These can be conveniently read out and processed via the USB C interface and the USB-C stick supplied.
When the optional Smart Features are purchased, the humidity detector can not only measure the current dew point, but also create a forecast for the final value of the dew point. In addition, it enables the humidity detector to document the measurement location using the integrated camera.
Highlights
- Taupunkt Messbereich von -100 ... +50 °C
- Druckbereich bis 15 bar Differenzdruck
- Datenlogger für bis zu 100 Millionen Messwerte
- Alarmgrenzen einstellbar.
- Touch LC Display
Specification
| Differential pressure | |
| Measuring range | 0 bar ... +15 bar |
| Resolution | 0.01 bar |
| Accuracy | 0.5 % v. Mb. |
| Taupunkt | |
| Messbereich | -100 °C ... +50 °C |
| Auflösung | 0,1 °C |
| Taupunkt | |
| Measuring range | 0 °C ... +20 °C |
| Resolution | 0.1 °C |
| Accuracy | ± 1°C |
| Taupunkt | |
| Measuring range | -60 °C ... +50 °C |
| Resolution | 0.1 °C |
| Accuracy | ± 2°C |
| Taupunkt | |
| Measuring range | -100 °C ... -60 °C |
| Resolution | 0.1 °C |
| Accuracy | ± 3°C |
| Temperature | |
| Measuring range | -30 °C ... +50 °C |
| Resolution | 0.1 °C |
| Accuracy | ± 0.3 °C |
| General technical data | |
| Measurement functions | Average value |
| Units | °C, °F, bar, psi, MPa, °C Td, %rH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm. |

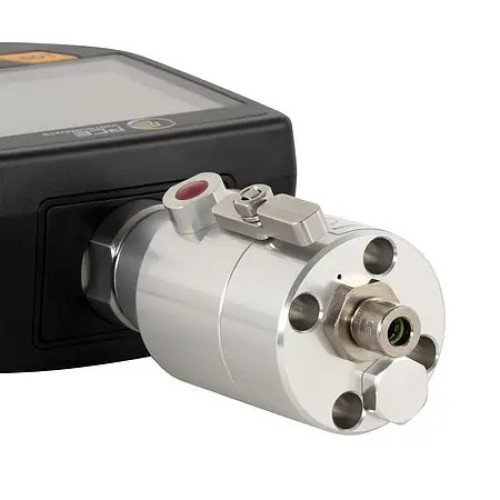

| Connections | G1/2" with 6mm quick coupling |
| Display type | LC Touch Display |
| Display size | 3.5 inches |
| Display refresh rate | 1 x per second |
| Storage medium | Internal memory |
| Memory interval of | 1 s |
| Memory interval up to | 60 s |
| Memory capacity | 100 million values |
| Interface | USB-C |
| Standard(s) | ISO8573-1 |
| Standard(s) Additional information | Evaluation according to ISO8573-1 only possible when purchasing the additional functions! Order no. No. PCE-DPM 10-SF |
| Sensor | QCM (quartz crystal microbalance) |
| Response time | 1 s |
| Measuring medium | Air, nitrogen, argon, carbon dioxide, oxygen |
| Automatic switch-off adjustable | 10 ... 60 min. |
| Automatic switch-off can be deactivated | Yes |
| Housing | ABS |
| Menu language | English, German, French, Spanish, Chinese, Korean, Japanese |
| Protection class (device) | IP30 |
| Power supply | 5V DC 3 A (via USB-C) |
| Weight | 775 g |
| Dimensions (L x W x H) | 310 x 100 x 60 mm |
| Other dimensions | PTFE hose 1.5 m with 6mm quick coupling |
| Operating conditions | 0 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 80 % r.H |
| Instruction languages | German |
| Batteries and rechargeable batteries | |
| Type | Lithium-ion battery |
| Lithium info | Lithium in product (built-in or enclosed) |
| Capacity | 3500 mAh |
| Voltage | 3.7 V |
| System | Secondary: Rechargeable battery / rechargeable battery |
| Number | 1 |
| Weight | 55 g |
| Weight class | Class 05 (51 - 150g) |
