Description

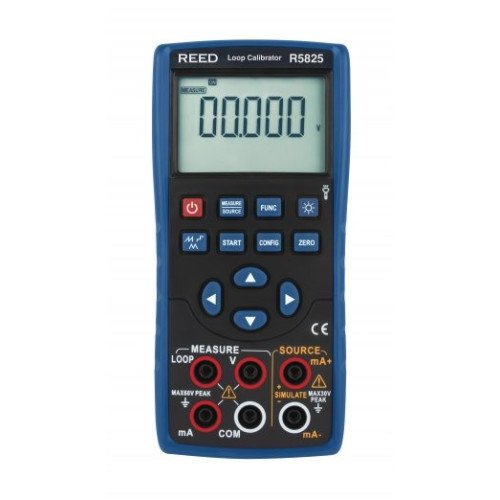

REED R5825 Offers
This loop calibrator has been designed to provide precise mA sourcing and measurement. With 0-30 VDC measurement capabilities, it ensures reliable loop voltage checks and offers exceptional accuracy of 0.02% for measurement and 0.05% for sourcing. The calibrator allows for precise mA and % simulation with a 0.001% display span, along with selectable step or ramp outputs.
Features
- mA sourcing and measurement
- 0-30 VDC measurement to check loop voltage
- Basic measurement/sourcing accuracy of 0.02% and 0.05%, respectively
- Simulate mA and % with 0.001% display span
- Selectable step or ramp outputs
- Easy to read 6-digit LCD display
- Built-in LED flashlight
- Internal 24V loop power supply
- Low battery indicator and auto shut off
