HVAC meter PCE-PA 8500-ICA incl. ISO-Calibration Certificate
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

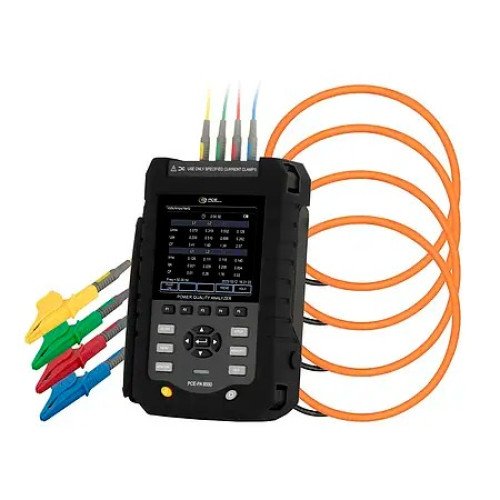

HVAC Meter with Data Logger / Color Display with Graphical Presentation / USB and LAN Interface / Includes Flexible Current Clamps up to 3000 A / Includes Software
The HVAC meter redefines standards in electrical measurement technology, offering a comprehensive range of features for precise and detailed measurements. The HVAC meter allows accurate measurements of electrical voltage, current, frequency, harmonics, and starting currents. In addition, precise power and energy measurements can be performed, enabling accurate monitoring and optimization of energy consumption.

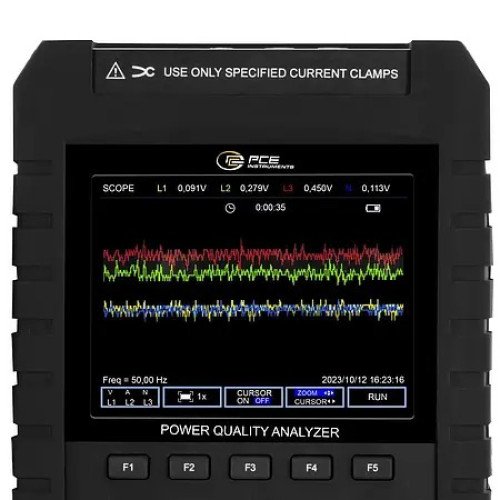

The graphical representation of waveforms and vector graphics allows users to visually capture and analyze electrical signals. These features provide insights into the quality of electrical power and aid in identifying issues in the network. The device can also detect and display sags, surges, or flickers in the power supply network.
The broad measurement range or desired selection allows the integrated data logger with generous 8 GB storage to store and archive extensive measurement data for later analysis. This ensures continuous data capture that can also be scheduled. The HVAC meter is equipped with LAN and USB interfaces, enabling convenient data transfer and remote control. These interfaces offer seamless integration of the HVAC meter into existing networks and systems.
The included flexible current clamps with a capacity of up to 3000 A facilitate the measurement of high currents and provide accurate results, even in challenging applications.
The HVAC meter complies with international standards (IEC61000-4-30, 61000-4-15, 61000-4-7, EN50160), ensuring the quality and accuracy of measurements and ensuring that it meets the demanding requirements of professional applications.
Whether testing operational characteristics of transformers, lighting systems, or switching electronics such as frequency converters or power supplies – our HVAC meters guarantee the highest accuracy and are capable of precisely analyzing even complex signal waveforms.
Highlights
- Measurement of voltage, current, frequency
- Harmonics, harmonics, starting current
- Power and energy measurement
- Sags, surges, and flicker in the power grid
- Graphical representation of waveform and vector graphics
- Data logger with 8 GB storage
- LAN and USB data interface
- Includes flexible current clamps up to 3000 A
- Compliance with standards: IEC61000-4-30, 61000-4-15, 61000-4-7, EN50160
Specification
| Direct Current (DC) | |
| Measurement Range | +1 V ... +1000 V |
| Resolution | 0.1 V |
| Accuracy | ±0.5% of the measured value |
| Alternating Current (AC) | |
| Measurement Range | +1 V ... +1000 V |
| Resolution | 0.1 V |
| Accuracy | ±0.5% |
| Alternating Current (AC) | |
| Measurement Range | +15 A ... +3000 A |
| Resolution | 0.1 A |
| Accuracy | ±3% |
| Power Factor | |
| Measurement Range | 0 ... +1 |
| Resolution | 0.01 |
| Accuracy | ±0.03 |
| Switch-On Current | |
| Measurement Range | +15 A AC ... +3000 A AC |
| Resolution | 0.1 A AC |
| Accuracy | ±3% |
| Frequency 50 Hz | |
| Measurement Range | +42.5 Hz ... +57.5 Hz |
| Resolution | 0.01 Hz |
| Accuracy | ±0.01 Hz |
| Frequency 60 Hz | |
| Measurement Range | +51 Hz ... +69 Hz |
| Resolution | 0.01 Hz |
| Accuracy | ±0.01 Hz |
| Frequency 400 Hz | |
| Measurement Range | +385 Hz ... +414 Hz |
| Resolution | 0.01 Hz |
| Accuracy | ±0.1 Hz |
| Harmonic Measurement (Harmonics) | |
| Measurement | +1 (harmonic order) ... +50 (harmonic order) |
| Current Range | 0 ... 100% |
| Voltage Range | 0 ... 100% |
| THD Range | 0 ... 100% |
| General Technical Data | |
| Display Type | TFT Color Display |
| Display Size | 2.6 Inches |
| Storage Medium | Internal Memory |
| Storage Interval From | 1 s |
| Storage Interval To | 60 min |
| Storage Capacity | 8 GB |
| Data Interface | USB, Ethernet |
| Standard(s) | IEC61000-4-30, EN50160, IEC61000-4-15, IEC61000-4-7 |
| Safety Standard | 600V CAT IV / 1000V CAT III (IEC61010-1) |
| Battery Capacity | 3800 mAh |
| Battery Type | Nickel-Metal Hydride Battery |
| Harmonics (Order) | 1 ... 50 |
| Menu Language | German, Russian, Polish, Turkish, Spanish, French, Portuguese, English, Korean, Chinese |
| Protection Class (Device) | IP41 |
| Power Supply | Power Supply, Battery |
| Weight | 1880 g |
| Device Weight with Accessories | 4200 g |
| Device Weight with Accessories and Packaging | 4600 g |
| Dimensions (L x W x H) | 260 x 190 x 67 mm |
| Operating Conditions | 0 ... 40 °C, 0 ... 90 % r.F |
| Storage Conditions | -20 ... 60 °C, 0 ... 90 % r.F |
