HVAC Meter PCE-PIC 60
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
HVAC meter PCE-PIC 60
Pipe camera with 60 m (196.9 ft) / IP68 camera head with PAN / TILT / Motor focus / Meter counting / Keyboard input possible / USB and HDMI / SD memory

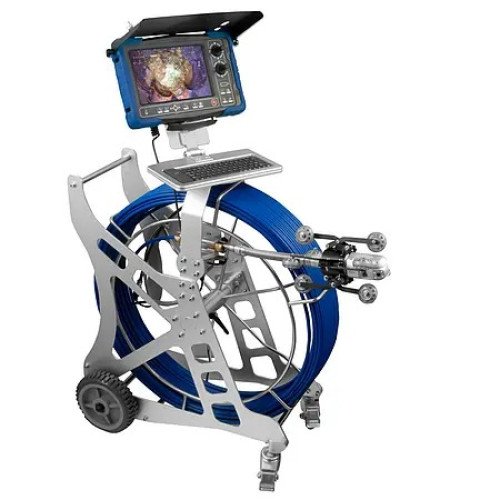

The pipe camera PCE-PIC 60/120 is used to inspect channels and pipes. Depending on the model, the pipe camera has a 60 m / 196.9 ft or 120 m / 393.7 ft fiber optic push cable. At the end of the pipe camera, a motorized camera head is mounted. This camera head is able to be moved 360° horizontally and 180° vertically. Furthermore, the camera has a motorized focus, which makes it possible to realize field of view depths between 20 and 100 cm. At the head of the pipe camera are 4 ultra-bright LEDs, which perfectly illuminate tubes and channels. The pipe camera has an electronic meter counter, which makes it easier to pinpoint damaged areas or blockages in pipes.

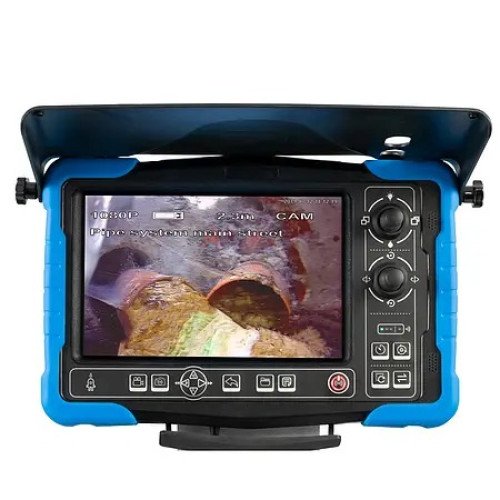

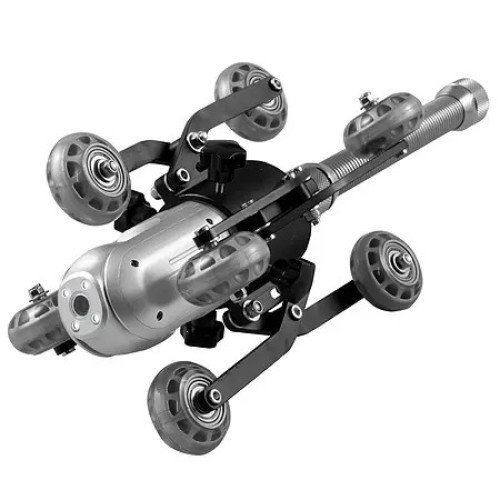

For documentation, images and videos can be recorded and saved with the pipe channel camera. For a better view of the image, the pipe camera can be connected via HDMI cable to an external monitor. The pipe camera takes pictures in 1080P, so no detail is lost. To add commentary to the scan, the USB keyboard can be used. The pipe camera is supplied on a robust, made of aluminum, trolley. Additionally included is a trolley and a roller guide for the camera, which are used to mount the camera head. As a result, pipes and ducts between 80 and 1200 mm / 3.1 ... 47.2 in can be driven.
Highlights
- 60 m / 196.9 ft channel camera
- With cable cars
- Large display
- Text input in the picture and video possible
- Motorized camera
- Engine focus
- Locator function
- ø9.5 mm fiber optic cable
- With cable cars
- Large display
- Text input in the picture and video possible
- Motorized camera
- Engine focus
- Locator function
- ø9.5 mm fiber optic cable
Specification
| Camera head diameter | 60 mm / 2.4 in |
| Head rotation | Horizontal: 360° |
| Vertical: 180° | |
| Cable length | 60 m / 196.9 ft |
| Sight depth | 20 ... 100 cm |
| Perspective | 105° |
| Pipe diameter from / to | 80 ... 1200 mm / 3.1 ... 47.2 in |
| Lighting | 4 x LED (dimmable) |
| White balance | Automatically |
| Image sensor | 1 / 2.9" Sony CCD |
| 1920 x 1080 pixels | |
| Display | 10.1" LC display |
| 1280 x 800 pixels | |
| Interface | USB 2.0 |
| HDMI | |
| Memory option | Video (AVI), Photo (JPEG) and Sound |
| Image memory | SD card up to 256 GB |
| Video output format | PAL 1080P, 720P, CVBS |
| NTCS 1080P, 720P, CVBS | |
| Menu navigation | Multilingual |
| Length measurement | 0 ... 60 m / 0 ...196.9 ft |
| Data entry | Possible by keyboard |
| Operating conditions | -10 ... 50°C / 14 ... 122°F, 30 ... 90% rh |
| Storage conditions | -20 ... 60°C / -4 ... 140°F, 30 ... 90% rh |
| Power supply | Power supply 110V ... 240V AC / 13.5V / 5 A DC |
| Li Ion battery 12V / 6000-mAh | |
| Protection class | Camera head: IP68 |
| Dimensions | Complete: 87.5 x 97.8 x 40.6 cm |
| Camera head: 60 x 146 mm / 2.4 x 5.7 in (total length: 360 mm / 14.2 in) | |
| Weight | About 20 kg / 44.1 lbs |
