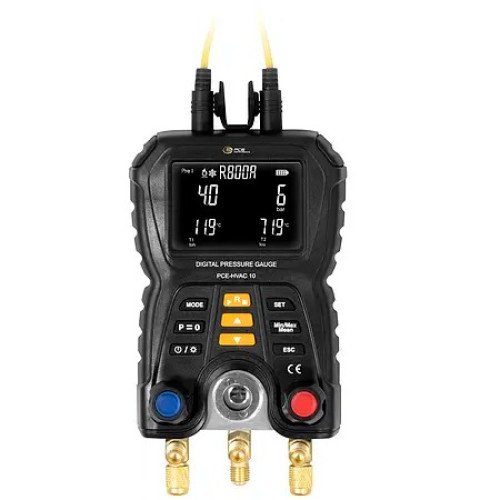

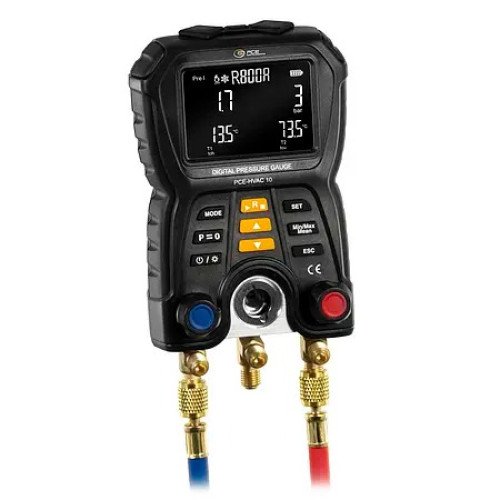

HVAC Meter PCE-HVAC 10
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
HVAC Meter in a robust metal casing / Measures pressure from -1 ... +60 bar and temperature from -10 ... +200 °C / 2-way valve block with 3 connectors 7/16" – UNF / Various display units / Hanging fixture
The HVAC meter is a robust measuring instrument designed for daily use in refrigeration systems and heat pumps to determine pressure and temperature. Measurement with the HVAC meter is carried out using supplied refrigerant hoses and 2 NTC clamp-on temperature sensors. All measurement parameters can be simultaneously captured by simply attaching or screwing them on. The metal 2-way valve block with 3 connectors and 3 hose holders allows for quick and easy operation of the HVAC meter. The 83 preloaded refrigerants can be quickly selected and are visible on the measurement screen. During measurements, the hanging fixture ensures secure attachment. The HVAC meter is powered by 4 x 1.5V AA batteries.
The HVAC meter is ideal for commissioning, servicing, and maintenance tasks. Thanks to additional device features such as the automatic heat pump mode, which eliminates the need to swap refrigerant hoses for measurements, and the temperature-compensated density testing function, working on refrigeration systems and heat pumps becomes very straightforward.
Highlights
- Measurement Range: -1 ... +60 bar
- Resolution: 0.01 bar
- Accuracy: ±0.5% FS (Full Scale).
- 83 refrigerants stored in the device
- 2-way valve block with 3 connectors 7/16" – UNF
- Includes 2 NTC clamp-on temperature sensors
- Temperature measurement from -10 ... +200 °C
Specification
| Temperature NTC | |
| Measurement Range | -10°C ... +200°C |
| Resolution | 0.1°C |
| Accuracy | ±(1°C + 1 Digit) |
| Pressure | |
| Measurement Range | -1 bar ... +60 bar |
| Resolution | 0.01 bar |
| Accuracy | ±0.5% FS (Full Scale) |
| General Technical Data | |
| Units | MPa, kPa, psi, bar, °F, °C |
| Connection Type | 3 x 7/16" – UNF |
| Display Type | LCD |
| Automatic Shutdown | 30 min. |
| Measuring Medium | Refrigerant (see manual) |
| Battery Type | AA Battery (1.5V) |
| Menu Language | English |
| Protection Class | IP42 |
| Weight | 768 g |
| Device Weight with Accessories | 2185 g |
| Device Weight with Accessories and Packaging | 2271 g |
| Dimensions | 204 x 116 x 65 mm (L x W x H) |
| Dimensions Including Packaging | 345 x 275 x 105 mm (L x W x H) |
| Additional Dimensions | Refrigerant Hose Length: 0.8 m Temperature Sensor Length: 0.8 m |
| Operating Conditions | 0°C ... +45°C, +10% ... 95% r.F. (Relative Humidity) |
| Storage Conditions | -20°C ... +60°C, +10% ... 95% r.F. (Relative Humidity) |
