HVAC Meter PCE-PDFL 10
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
HVAC Meter with abs. air pressure sensor / measuring range -30 ... 60°C (-22 ... 140°F) /
instant data export via PDF and CSV / software / LC display / USB-A /
data memory for 13340 measuring points / optional with ISO calibration certificate
The HVAC Meter has a measuring range of -30 ... 60°C / -22 ... 140°F and can be used in cold environments. In addition to temperature and humidity measurement, the HVAC Meter can also measure the absolute air pressure in the ambient atmosphere in a measuring range between 700 ... 1100 hpa. Due to the different sensors, the HVAC Meter already covers a wide range of measuring tasks. Typical applications of the HVAC Meter are, for example, the monitoring of refrigeration facilities, greenhouses or also in the monitoring of an office workplace.
The measured values are stored on the internal memory of the HVAC Meter. The HVAC Meter has a memory capacity of 13340 measuring points. Once a measurement run has been completed, the stored measurement data can be read out from the HVAC Meter independently of the operating system. This is possible because the HVAC Meter is recognised as a mass data memory. When storing the measurement data, the measurement points are saved in a .pdf and in a .csv file.
With the corresponding software for the HVAC Meter, the measured values can be displayed graphically. In addition, settings for the HVAC Meter can be made via the software. For example, the storage interval can be set between 1 minute and 24 hours, visual alarm limits and start/stop pulses can be set for the HVAC Meter. Optionally, the HVAC Meter can be equipped with an ISO calibration certificate.
Highlights
- Temperature, relative humidity, air pressure
- Software for evaluating the measured data
- Measuring range: -30 ... 60°C / -22 ... 140°F
- Data memory with 13340 measuring points
- Data export immediately in PDF and CSV
- Optionally with ISO calibration certificate
Specification
| Temperature | |
| Measuring range | -30 ... 60°C / -22 ... 140°F |
| Resolution | 0.1°C / °F |
| Accuracy | ±1.0°C / 1.8°F bei -30 ... 0°C / -22 ... 32°F |
| ±0.5°C / 0.9°F bei 0 ... 60°C / 32 ... 140°F | |
| Relative humidity | |
| Measuring range | 0 ... 100% r. F. |
| Resolution | 0.1% r. F. |
| Accuracy | ±5.0% r. F. bei 0 ... 20% r. F. und 80 ... 100% r. F. |
| ±3.5% r. F. bei 20 ... 40% r. F. und 60 ... 80% r. F. | |
| ±3.0% r. F. bei 40 ... 60% r. F. | |
| Absolute air pressure | |
| Measuring range | 700 ... 1100 hpa |
| 525.0 ... 825.0 mmHg | |
| 20.67 ... 32.48 inHg | |
| Resolution | 1 hpa |
| 0.1 mmHg | |
| 0.01 inHg | |
| Accuracy | ±3 hpa |
| ±2.5 mmHg | |
| ±0.1 inHg | |
| Further specifications | |
| Memory | 13340 measuring points |
| Data export | .pdf, .csv |
| Storage rate | 1 minute ... 24 hours |

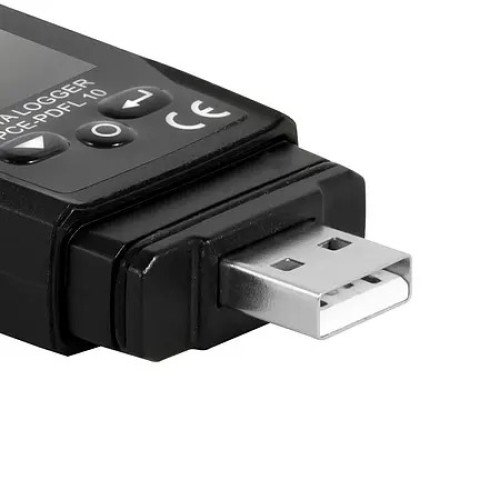

| Interface | USB-A |
| Power supply (USB-A) | 5V DC, 0.1 A |
| Power supply (battery) | 3V battery (CR2450) |
| Battery life | Approx. 3 years |
| Display | 1/4" LCD Display |
| Ambient conditions | -30 ... 60°C / -22 ... 140°F, < 95% r. F., non-condensing |
| Dimensions | 75 x 35 x 15 mm / 3 x 1.4 x 0.6 in |
| Weight | 33 g / < 1 lb |
