HVAC Meter PCE-ST 1-ICA incl. ISO-Calibration Cerificate

Brand:
PCE Instruments
Product Code:
PCE-ST 1-ICA
Availability:
In Stock
Delivery Time
2–3 Business Days

Need Technical Support?

Our engineers are available to help you select the right module for your application.

Description

Description

Digital penetration or immersion Thermometer / Reduced response time
/ Interchangeable battery / Robust and shock-resistant

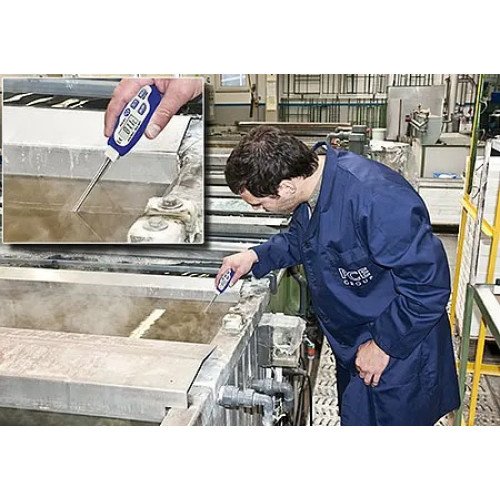

The PCE-ST 1 HVAC meter is a handheld digital device to measure temperature in the HVAC sector, as for instance in heating ducts, air conditioning vents, insulation, crawl spaces, etc., thanks to its 120 mm / 4.7 in stainless steel probe. The PCE-ST 1 HVAC meter is very easy to use, with small dimensions and short response time. The PCE-ST 1 HVAC meter is mainly used in the HVAC industry, breweries, laboratories, pharmacies or for a fast and simple control of temperature. The PCE-ST 1 HVAC meter is delivered with a protective cover and a battery.


Highlights

- Easy-to-use contact thermometer
- fixed stainless steel sensor
- Interchangeable batteries
- Fast response time
- Measurement Range: -40 to 250ºC / -40 ... 482°F
- LCD display
- Rubberized plastic case
- Robust and shock-resistant
- Battery indication (low-battery indication)
- IP 65 protection
- Max., min., and Hold functions

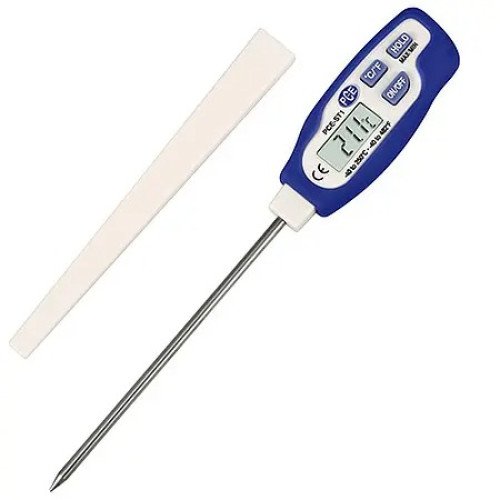

- The delivery includes a battery and a protective cover

Specification

Measurement Range-40 ... 250ºC / -40 ... 482°F
Resolution0.1ºC / 0.18ºF
Accuracy±1.5°C / 2.7ºF, ±2ºC / 3.6ºF
SensorNTC
Sensor pointStainless steel, Ø 3.8 mm
Length = 120 mm / 4.7 in, watering point
Response time2 seconds
Operating temperature  0 ... 50ºC / 32 ... 122ºF
Storage temperature-10 ... 60ºC / 14 ... 140ºF
DisplayLCD
Power supply1.5V LR44 battery
Operating timeApprox. 5000 hours
Dimensions211 x 19 x 32 mm / 8.3 x .7 x 1.3 in
Case materialABS
WeightApprox. 130 g / < 1 lb
ProtectionIP 65
