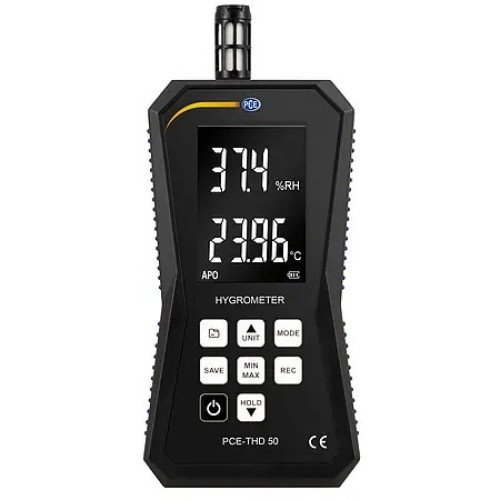

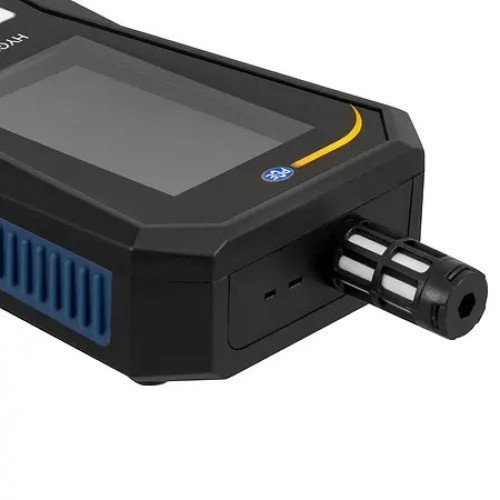

HVAC Meter PCE-THD 50
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
HVAC meter with connection for thermocouple type K / Measuring range -20 ... 60 °C /
Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate
Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate
The HVAC meter is the ideal measuring device to check the climatic conditions in, for example, warehouses, production halls or greenhouses. The HVAC meter can measure the ambient temperature and humidity. Temperatures between -20 ... 60 °C (-4 ... 140 °F) can be measured reliably and quickly by the HVAC meter. In addition, the dew point and wet bulb temperature is calculated and displayed by the HVAC meter. In addition, any type K thermocouple can be connected to the HVAC meter in a temperature range of -100 ... 1372 °C (-148 ... 2501 °F). As soon as the connected thermocouple has been recognized, the temperature display automatically switches from the HVAC meter to the thermocouple.
Measured values can be recorded with the data logger function of the HVAC meter. The large memory of 32,000 measuring points in the HVAC meter allows recording of measured values over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the HVAC meter and the free software. The data logged by the HVAC meter can be exported in CSV file format for further processing.
A 3.7 V Li-ion battery is installed in the HVAC meter to enable mobile use. This battery can be recharged via the micro-USB interface on the HVAC meter.
Measured values can be recorded with the data logger function of the HVAC meter. The large memory of 32,000 measuring points in the HVAC meter allows recording of measured values over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the HVAC meter and the free software. The data logged by the HVAC meter can be exported in CSV file format for further processing.
A 3.7 V Li-ion battery is installed in the HVAC meter to enable mobile use. This battery can be recharged via the micro-USB interface on the HVAC meter.
Highlights
- Measuring range -20 ... 60 °C / -4 ... 140 °F
- Temperature, humidity, dew point
- Backlit LC display
- Micro USB interface
- Rechargeable battery
- Data memory for 32,000 readings
- Wet bulb temperature
- Optionally with ISO calibration certificate
- Temperature, humidity, dew point
- Backlit LC display
- Micro USB interface
- Rechargeable battery
- Data memory for 32,000 readings
- Wet bulb temperature
- Optionally with ISO calibration certificate
Specification
| Air temperature | |
| Measuring range | -20 … 60 °C（-4 … 140 °F） |
| Resolution | 0.01 °C/°F |
| Accuracy | ±0.5 °C @ 0 … 45 °C，±1.0 °C |
| in remaining range | |
| ±1.0 °F @ 32 … 113 °F，±2.0 °F | |
| in remaining range | |
| Measuring rate | 3 Hz |
| Relative humidity | |
| Measuring range | 0 … 100 % RH |
| Resolution | 0.1 % RH |
| Accuracy | ±2.2 % RH (10 … 90 % RH) |
| @ 23 °C (73.4 °F) | |
| ±3.2 % RH (<10，>90 % RH) | |
| @23 °C (73.4 °F) | |
| Response time | <10 s (90 % RH, 25 °C (77 °F), with no wind) |
| Thermoelement | |
| Sensor type | Thermoelement Type K |
| Measuring range | -100 … 1372 °C（-148 … 2501 °F） |
| Resolution | 0.01 °C/°F, 0.1 °C/°F, 1 °C/°F |
| Accuracy | ±(1 % ±1 °C) |
| Calculated values | |
| Wet bulb temperature | -20 … 60 °C （-4 … 140 °F） |
| Dew point temperature | -50 … 60 °C （-58 … 140 °F） |
| Further specifications | |
| Internal memory | 99 measuring points |
| (redundant, only readable on the measuring device) | |
| 32,000 measuring points | |
| (only readable on the PC) | |
| Power supply | 3.7 V Li-ion battery |
| Operating conditions | 0 … 40 °C (32 … 104 °F) <80 % RH, |
| non-condensing | |
| Storage conditions | -10 … 60 °C (14 … 140 °F) <80 % RH, |
| non-condensing | |
| Dimensions | 162 mm x 88 mm x 32 mm / 6.3 x 3.4 x 1.2" |
| Weight | 248 g / 8.74 oz |
