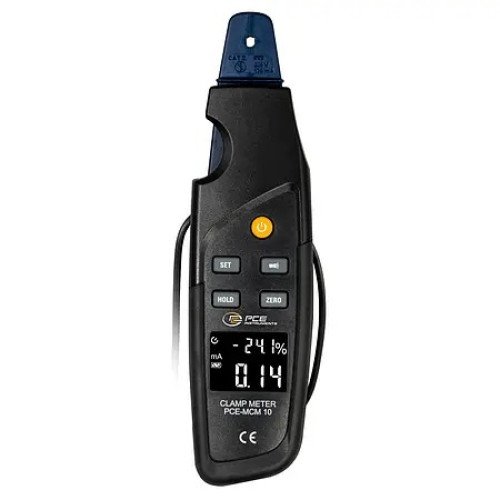

HVAC Meter PCE-MCM 10
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
HVAC Meter with 1 m (3.3 ft) cable / measurement range ±99.9 mA DC / manual zero point /
battery life of approx. 40 hours / automatic power off / clamp opening Ø 5 mm /
accuracy of ±0.3 % of rdg./ optional ISO calibration certificate
The HVAC meter has a measurement range of ±99.9 mA DC. With an accuracy of 0.3% of rdg. +8 digits, the HVAC meter is a particularly accurate measuring instrument. In order to conveniently perform measurements with the HVAC meter, the current clamp itself is connected to a 1 meter / 3.3 ft cable. The current clamp can thus be attached to the cable to be measured. The HVAC meter can be conveniently placed aside at the workplace. This leaves both hands free while reading the measured values, for example to carry out adjustments or configurations on the process technology. Due to the high accuracy and the external sensor, the HVAC meter is ideally suited to make quick and reliable current measurements when process signals are involved.
In order to carry out a current measurement, the current clamp of the HVAC meter must be clamped around the cable to be checked. This allows the HVAC meter to measure the flowing current inductively. This has the particular advantage that a current measurement can be carried out during operation with the HVAC meter.
For improved visibility, the HVAC meter is equipped with an LED. With the LED of the HVAC meter, the measuring spot can be ideally illuminated. Optionally, the HVAC meter can be delivered with an ISO calibration certificate.
If you have any further questions about the PCE-MCM 10 HVAC meter, please take a look at the following technical data or use our contact form. Our technicians and engineers will be happy to advise you on the HVAC meter or any other products in the fields of control, laboratory or measuring technology or scales and balances from PCE Instruments.
Highlights
- Detachable process clamp meter with 1 m / 3.3 ft cable
- Clamp opening of 5 mm diameter
- Measurement range ±99.9 mA DC

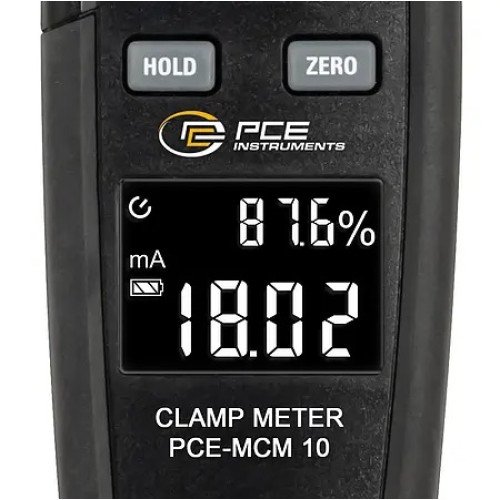

- display with backlight
- Operating time of approx. 40 hours
- Optional ISO calibration certificate
Specification
| Measuring range | ±20.99 mA DC |
| Resolution | 0.01 mA |
| Accuracy | ±(0.3 % of rdg. + 8 Digits) |
| Measuring range | ±21.0 … ±99.9 mA DC |
| Resolution | 0.1 mA DC |
| Accuracy | ±(1 % of rdg. + 8 Digits) |
| Influence of the earth's magnetic field on the measured value, max. 0.25 mA DC | |
| Diameter of clamp opening | Ø5 mm |
| Switch-off | automatic |
| Continuously switched on | after 10 minutes OFF |
| Operating voltage | 3V via 2 AA batteries |
| Battery life | approx. 40 hours |
| Protection class | IP40 |
| Overvoltage categories | CAT II 300V |
| Operating conditions | -10 … 50°C / 14 ... 122°F |
| Storage conditions | -15 … 60°C / 5 ... 140°F |
| Environmental humidity | <90% RH at < 30°C / 86°F |
| <75% RH at 30 ... 50°C / 86 ... 122°F | |
| Working altitude | 0 ... 2000 m / 6,561 ft above sea level |
| Dimensions | handheld device: 180 x 55 x 39 mm / 7.1 x 2.2 x 1.5 in |
| current clamp: 90 x 40 x 1.5 mm / 3.5 x 1.6 x 0.06 in | |
| cable length: approx. 1 m / 3.3 ft | |
| Weight | 268 g / 0.6 lbs with batteries inserted |
