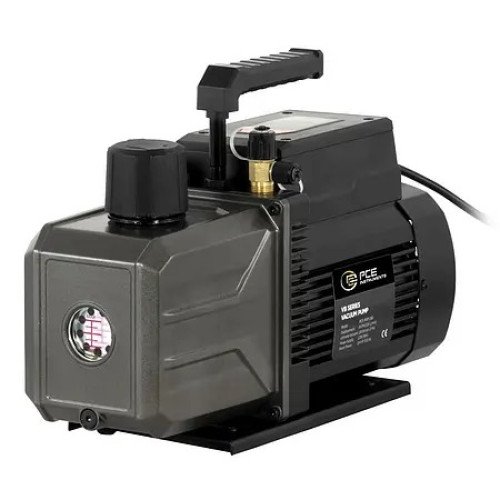

HVAC Meter PCE-RVP 180 Vacuum Pump for Refrigerant Evacuation
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
HVAC Meter
in Robust Housing / Flow Rate of 226 l/min / Filter for Reducing Oil Mist / Connections: 1/4" and 3/8"
The HVAC meter is equipped with a powerful motor that provides high torque. The motor power is 0.75 HP (550 W), ensuring reliable and efficient performance. With a high flow rate of 226 l/min., our HVAC meter is capable of efficiently extracting large volumes of refrigerants. The HVAC meter is equipped with connections of 1/4" and 3/8", allowing for versatility and adaptability to various refrigerant hoses and applications.
Our HVAC meter is equipped with a state-of-the-art filter element that effectively helps reduce oil mist. This filter element not only enhances the pump's lifespan but also ensures a cleaner working environment and contributes to environmental preservation. The ergonomically designed rubber handle enables secure transport and easy handling. An HVAC meter pump is used to evacuate air conditioning, refrigeration systems, or heat pumps before they are filled with refrigerant. This is crucial for removing moisture and air from the system, enhancing the efficiency of the air conditioning or heat pump.
Highlights
- For refrigerants (e.g., R12, R22, R134a)
- High torque and efficient motor
- Motor power: 0.75 HP (550 W)
- Flow rate: 226 l/min
- Connections: 1/4" and 3/8"
- Filter element to reduce oil mist
- Comfortable and sturdy rubber handle
Specification
| General Technical Data | |
| Connection Type | 1/4" SAE, 3/8" SAE |
| Motor Power | 0.75 HP |
| Flow Rate | 226 l/min |
| Oil Capacity | 660 ml |
| Ultimate Vacuum | 0,02 mbar |
| Protection Class | IP20 |
| Power Supply | Schuko Plug (230V AC) |
| Weight | 13.54 kg |
| Device Weight with Accessories | 13.6 kg |
| Device Weight with Accessories and Packaging | 15 kg |
| Dimensions (L x W x H) | 390 x 140 x 260 mm |
| Operating Conditions | 5 ... 40 °C, 20 ... 80 % r.F. |
| Storage Conditions | 5 ... 40 °C, 20 ... 80 % r.F. |
