HVAC Meter PCE-DC 41-ICA incl. ISO Calibration Certificate
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

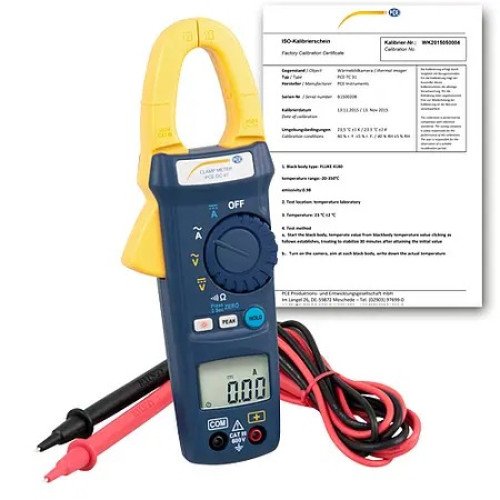

HVAC meter PCE-DC 41-ICA incl. ISO Calibration Certificat
Voltage metering up to 600 V / Current metering up to 600 A / CAT III 600 V
Electrical resistance metering up to 1000 Ω / Contact-free measuring of electrical conductors

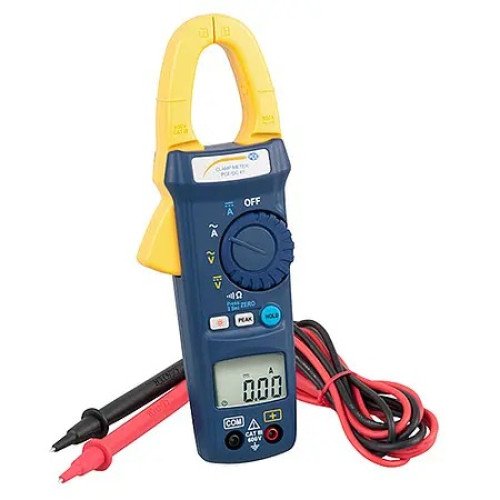

The HVAC meter PCE-DC 41 can measure voltages up to 600 V, currents up to 600 A and electrical resistance up to 1000 Ω. To perform a measurement, you can either use the measuring leads, which are included in the package of the HVAC meter, or you can use the integrated clamp mechanism. By using the clamp of the HVAC meter, you are able to measure the electrical parameters of an electrical conductor contact-free and without disconnecting it. You can also check the continuity with the HVAC meter.
Due to its compact design and light weight, the device is well-suited for mobile use. When using the clamp mechanism, it is also possible to run the HVAC meter with one hand only. The measured data is shown on the large backlit 4-digit display. By using the peak-hold or data-hold function, you can also freeze the readings on the display. The auto power-off function saves battery power, when the device is not in use.
Highlights
- Voltage: 600 V AC/DC
- Current: 600 A AC/DC
- Electrical Resistance: 1000 Ω
- Clamp mechanism
- Continuity check
- Current: 600 A AC/DC
- Electrical Resistance: 1000 Ω
- Clamp mechanism
- Continuity check
- Peak- and data-hold function
- Measuring leads included in the package
- 4-digit display
- Display backlight
- Auto power-off
- Incl. ISO Calibration Certificate
- Measuring leads included in the package
- 4-digit display
- Display backlight
- Auto power-off
- Incl. ISO Calibration Certificate
Specification
| Direct voltage | |||
| Range | Resolution | Accuracy | |
| Input impedance: 1 MΩ | 600 V | 0.1 V | ± 1 % + 2 digits |
| Direct voltage (peak model) | |||
| Input impedance: 1 MΩ | 600 V 0.0 ... 0.01 in | 0.1 V 0.0 ... 0.01 in | ± 1.5 % + 8 digits 0.0 ... 0.01 in |
| Alternating voltage | |||
| Input Impedance: 1 MΩ | 600 V | 0.1 V | ± 1.2 % ± 5 digits (50 ... 500 Hz) |
| Alternating voltage (peak model) | |||
| Input impedance: 1 MΩ | 600 V | 0.1 V | ± 1.7 % + 10 digits |
| Direct current | |||
| 60 A 600 A | 0.01 A 0.1 A | ± 2 % + 5 digits | |
| Direct current (peak model) | |||
| 600 A | 0.1 A | ± 2.5 % + 8 digits | |
| Alternating current | |||
| 60 A 600 A | 0.01 A 0.1 A | ±2 % + 5 digits (50...60 Hz) ±3 % + 5 digits (60...500 Hz) | |
| Alternating current (peak model) | |||
| 600 A | 0.01 A | ±2.5 % + 10 digits | |
| Electrical resistance | |||
| 1000 Ω | 0.1 Ω | ± 1 % + 2 digits |
| Continuinty check | |
| Buzzer function <40 Ω | |
| General specifications | |
| Display | 4-digit LCD maximum reading: 6200 |
| Sampling rate | 3 times/s |
| Power supply | 2 x 1.5 V AAA batteries |
| Batter life | 50 hours (without buzzer backlight function) |
| Auto Power off | After 30 minutes of inactivity |
| Operating conditions | 0.0°C ... 40°C / < 70 % RH 0.0°F ... 104°F |
| Storage conditions | -10°C ... 60°C / < 80 % RH 14°F ... 140°F |
| Maximum clamp opening | Ø 25 mm / Ø 0.1 in |
| Dimensions | 210 mm x 62 mm x 36 mm / 8.26 in x 2.44 in x 1.41 in |
| Weight | 273 g / < 1 lb with batteries |
