HVAC Meter PCE-320-ICA incl. ISO Calibration Certificate
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

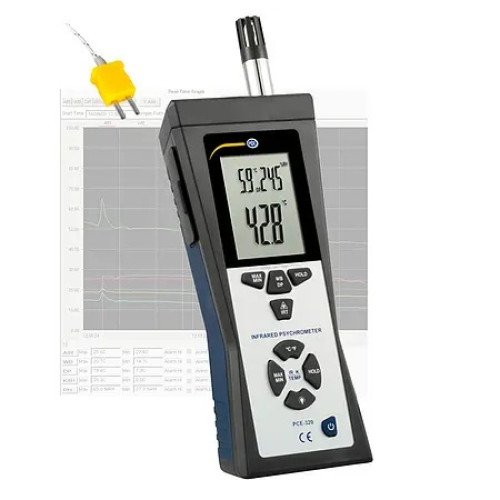

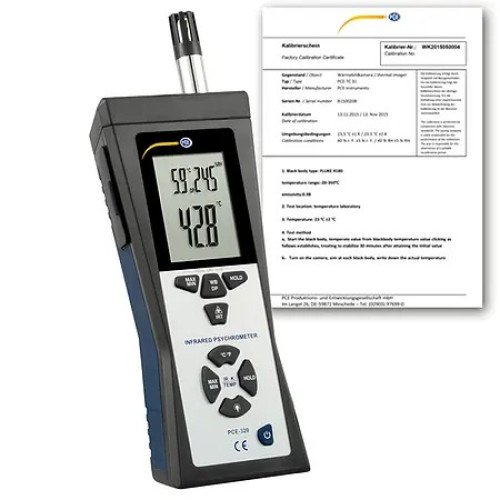

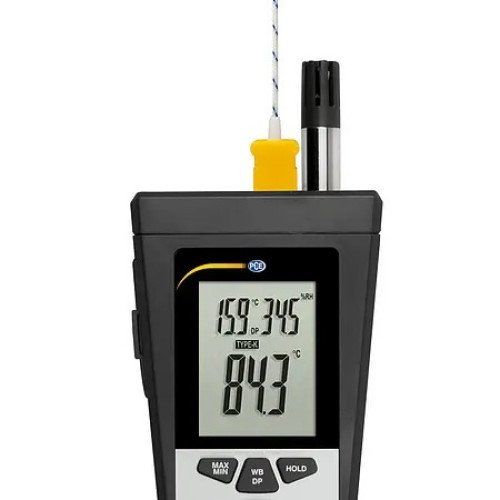

HVAC Meter PCE-320-ICA incl. ISO Calibration Certificate
Humidity / Temperature / Dew point / Wet bulb globe temperature / Surface temperature
With the HVAC Meter it is possible to measure climate conditions such as temperature and relative humidity, as well as determining surface temperature of objects simultaneously by using the included external temperature sensor or using an infrared measurement. The HVAC meter offers features such as average value, maximum, minimum, and hold functions. The HVAC meter provides additional information relating to dew point temperature and the global humidity temperature. Measurement values can be directly seen on the device's LCD display, and maximum and minimum values can be registered or transferred to a PC or portable computer for further analysis.
The HVAC meter helps prevent damage to products, such as allowing for the elimination of fungus in food when being stored and during transportation. The HVAC meter is also very useful in the construction industry, industrial sector, or in product development. Customers frequently complain about not having a tool available that can measure ambient conditions and surface temperature of a wall both inside and outside.
Highlights
- Measures ambient humidity and temperature using an internal sensor
- Measures surface temperature using an optional external sensor
- Infrared measurement of a material temperature
- Display shows temperature and humidity simultaneously
- Determines dew point and global humidity temperature
- Average value, Maximum, Minimum and Hold functions
- Auto shut-off to protect battery life
- Software for data transmission included
Specification
| Internal probe | |
| Temperature | -20º... 60°C / -4 ... 140°F |
| Relative humidity | 10 ... 90% H.r. |
| Temperature of global | -21.6 ... 60°C / -6.8 ... 140°F |
| Humidity | -68 ... 60°C / -90.4 ... 140°F |
| Dew point temperature | depending on the sensor |
| External | |
| Temperature | -50 ... 500°C / -58 ... 932°F |
| Infrared | |
| Temperature resolution | 0.1°C / 0.18°F |
| Relative humidity resolution | 0.1% |
| Accuracy (Internal) | |
| Temperature | ± 1.0°C / 1.8°F |
| Relative humidity | ± 3% |
| Wet bulb temperature | ± 1.0°C / 1.8°F |
| Dew point temperature | ± 1.0°C / 1.8°F |
| Accuracy (External) | |
| Temperature | ± 1% ± 1.0° C / 1.8°F |
| Infrared | |
| -50 ... -20ºC / -58 ... -4ºF | ± 5.0°C / 9°F |
| -20 ... 500ºC / -4 ... 932ºF | ± 2.0°C / 33.6°F o ± 2% |
| Response time | < 4 s |
| Humidity sensor type | Resistance sensor |
| Software | From Windows 98 |
| Memory | Maximum and minimum value |
| External temperature sensor | 1 m / (3.3 ft) long hot wire sensor and many other available to order |
| Display | Multiple LCD for diplaying a variety of different readings |
| Power | 9V battery |
| Operating conditions | -20 ... 60°C / -4 ... 140°F 0 ... 90% H.r. |
| Dimensions | 257 x 76 x 53 mm / 10.1 x 2.9 x 2 in |
| Weight | 355 g / < 1 lb |
