WiFi HVAC Meter PCE-VE 500N

Product Code:
PCE-VE 500N
Availability:
In Stock
Delivery Time
2–3 Business Days

Need Technical Support?

Our engineers are available to help you select the right module for your application.

Description

Description

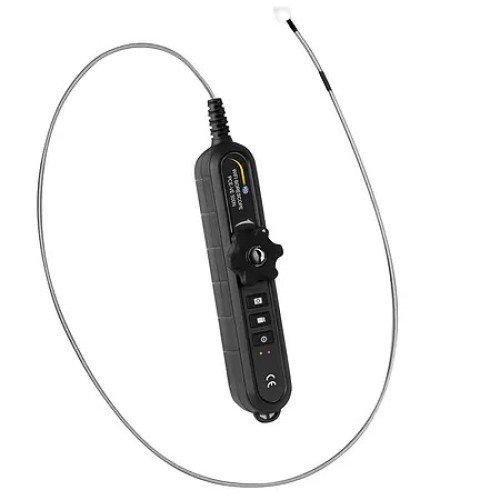

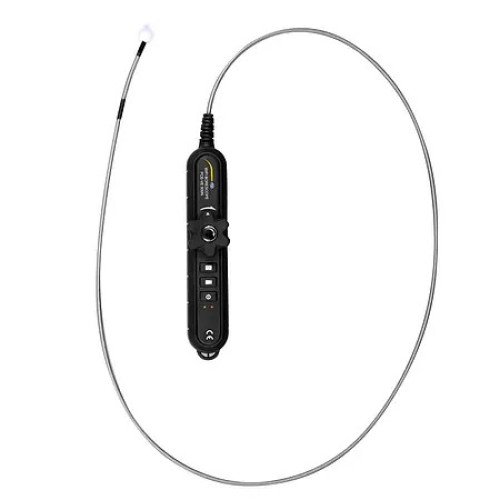

WiFi HVAC Meter for Android and iOS / Camera head Ø 4.5 mm / 1 m (3 ft 3") cable length/
Camera swivels through 180° / IP 67

The WiFi HVAC meter can be connected to a tablet or smartphone using the Android or iOS app. The WiFi borescope impresses with its simple handling and its robust construction. With the flexible, metal braided borescope cable, examinations under adverse operating conditions are possible with the WiFi borescope. The cable and head diameter is only 4.5 mm. The camera head of the WiFi borescope can be swiveled through 180°. This enables use in narrow cavities and visibility in almost all directions. 5 LEDs ensure that the areas and cavities to be examined are very well illuminated by the WiFi borescope. The brightness of the lighting can be adjusted in stages via the app. Images and videos can be saved in the WiFi borescope app. It is also possible for these files to be sent directly from the WiFi borescope app via email or Messenger.

The WiFi HVAC meter is particularly suitable for workshops for examining cylinders and spark plug holders. However, it can also be used in the construction sector for examining drywall or for analyzing water damage. Thanks to the app for Android and iOS, no external display device or PC is required to continue using the image data.

Highlights

- Image transmission via WiFi
- For iOS and Android
- Storage for picture and video via app
- Movable camera head Ø 4.5 mm
- Cable length 1 m (flexible)
- 5 LEDs with adjustable light intensity

Specification

Cable length1000 mm / 3 ft 3"
Cable typeflexible, metal braided
 camera head swivels 180°
Cable diameter4.5 mm
Degree of protectionIP 67
Field of view depth10 ... 100 mm
Field of view90°
Perspective
Lighting5 LEDs dimmable via app
Exposureautomatic
Anti-reflective coatingautomatic
Camera resolution / image sensor1024 x 768 Px

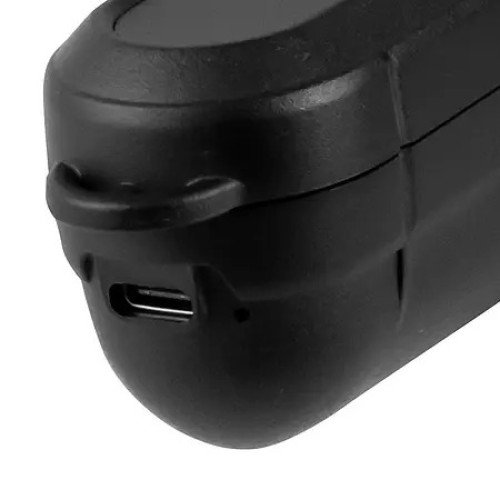

InterfaceUSB-C charging socket 5 V / 1 A
 WIFI IEEE 802,11 b/g/n 2.4 GHz
Storage optionimage and video
Storagevia iOS or Android device
Image formatJPEG (1024 x 768 Px)
Video formatMP4 (1024 x 768 Px)
Menu navigationgraphically in App
Operating and storage temperature    -10 ... +60 °C / 14 ... 140 °F (borescope cable)
 0 ... 40 °C / 32 ... 104 °F (handpiece)
Power supply3.7 V Li-Ion battery, 2600 mAh
Operating timemin. 4 h
Recharge time2 h
Dimensions207.5 x 35 x 50 mm  / 8.1 x 1.3 x 1.9"
Weight248 g / 8.7 oz
