HVAC Meter PCE-PIC 20
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
PCE-PIC 20 HVAC meter
Inspection camera with 20 m (66 ft) push cable / Waterproof up to 20 m (66 ft) / Meter count / Keyboard input for comments possible / SD memory
Inspection camera with 20 m (66 ft) push cable / Waterproof up to 20 m (66 ft) / Meter count / Keyboard input for comments possible / SD memory

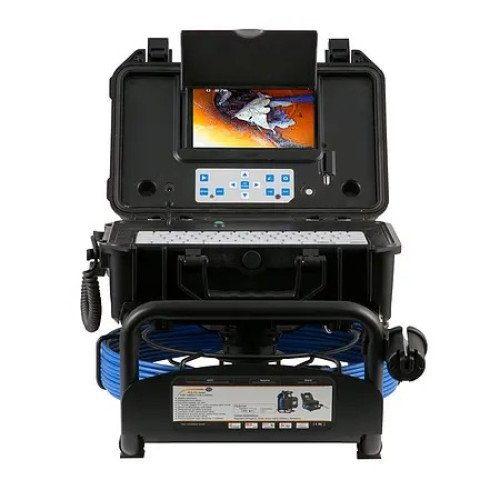

The inspection camera of the PCE-PIC series is an ideal tool for any service technician who needs to visually inspect pipes and ducts. The inspection camera has a 23 mm / 0.9 in camera head, which is attached to a fiberglass push cable. The inspection camera is optimally suited for pipes and ducts DN 40 ... 150 mm / 1.6 ... 5.9 in. The camera of the inspection camera is waterproof up to 20 m / 66 ft. To facilitate the search for damaged areas on canals and pipes, the inspection camera has an electronic meter counter. Recorded pictures and videos can be saved on an SD memory card via the inspection camera. For better documentation, comments can be added to the pictures and videos via the keyboard.
The inspection camera is delivered in a waterproof case. The case of the inspection camera is mounted directly on the cable scooter. Thus, the inspection camera takes up little space during transport. The inspection camera PCE-PIC is equipped with a rechargeable battery, which enables a mobile working. About a power supply or the car charger, the battery of the inspection camera is charged.
Highlights
- 20 m / 66 ft push cable
- Electronic meter counting
- 23 mm / 0.9 in camera head
- Keyboard for comment input
- Braked endoscope line
- 12x LED lighting
- Battery and mains operation, A/C power adapter
- Waterproof up to 20 m / 66 ft
- IP66 Carrying Case
- 90° radius of curvature at min. Ø 45 mm / 1.8 in
- Electronic meter counting
- 23 mm / 0.9 in camera head
- Keyboard for comment input
- Braked endoscope line
- 12x LED lighting
- Battery and mains operation, A/C power adapter
- Waterproof up to 20 m / 66 ft
- IP66 Carrying Case
- 90° radius of curvature at min. Ø 45 mm / 1.8 in
Specification
| Cable diameter / head diameter | 23 mm / 0.9 in |
| Cable length | PCE-PIC 20: 20 m / 66 ft |
| Sight depth | 20 ... 100 cm |
| Perspective | 120° |
| Lighting | 12 x LED (dimmable) |
| White balance | Automatically |
| Image sensor | 1/3" Sony CCD |
| 720 x 576 pixels | |
| Display | 7" LC display |
| Interface | USB 2.0 |
| Memory option | Video, photo and sound |
| Image memory | SD card up to 32 GB |
| Video output format | PAL 720 x 576 pixels |
| NTSC 720 x 488 pixels | |
| Menu navigation | Multilingual: |
| German, English, French, Spanish, Italian, Portuguese, Japanese, Chinese, Russian | |
| Length measurement | 0 ... 20 m / 0 ... 66 ft |
| Data entry | By keyboard possible |
| Operating conditions | -10 ... 50°C / 14 ... 122°F, 30 ... 90% rh |
| Storage conditions | -20 ... 60°C / -4 ... 140°F, 30 ... 90% rh |
| Power supply | Power supply 110V ... 240V AC / 12V / 1.2 A DC |
| Li-Ion battery 7.4 / 5400-mAh | |
| Protection class | Display: IP66 |
| Camera head: waterproof up to 20 m / 66 ft | |
| Dimensions | Complete: 55 x 43.5 x 34.5 cm |
| Camera head: 23 x 45 mm / 0.9 x 1.8 in (total length: 150 mm / 5.9 in) | |
| Weight | About 13 kg / 28.7 lbs |
| |
