Car Measuring Device PCE-CT 27FN-ICA incl. ISO Calibration Certificate
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

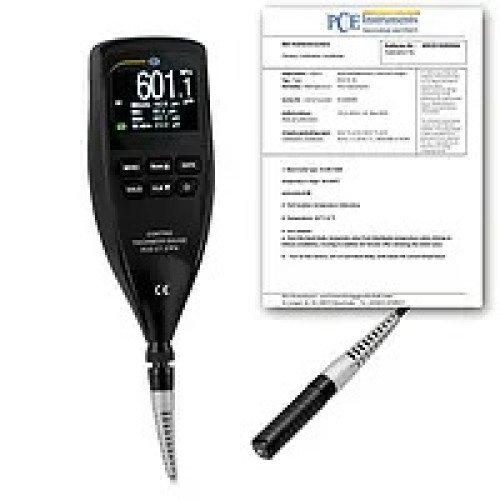

PCE-CT 27FN Car Measuring Device
PCE-CT 27FN is a Car Measuring Device that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Car Measuring Device is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.
Highlights
- Includes a set of calibration standards for ferrous and non-ferrous metals
- Supplied with a set of plastic shims or foils
- Incl. ISO Calibration Certificate
Specification
| Measuring range | 0 ... 1250 µm / 0 ... 50 mils |
| Accuracy | ± (2% + 2 µm) / ± (2% + 0.1 mils) |
| Resolution | 0.1 µm / 0.1 mil |
| Operating temperatures | -10 ... 50°C / 14 ... 122°F |
| Power | 2 x 1.5V batteries |
| Dimensions | 166 mm x 68 mm x 30 mm 6.54 in x 2.68 in x 1.18 in |
| Weight | 0.180 kg / < 1 lb |
Delivery Scope
1 x PCE-CT 27FN Car Measuring Device
1 x Set of calibration standards
1 x Probe with 1 m / 3.28 ft long cable
1 x Set of plastic shims
1 x Carrying case
2 x 1.5V batteries
1 x User manual
1 x ISO calibration certificate
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
