Car Measuring Device PCE-S 41
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description

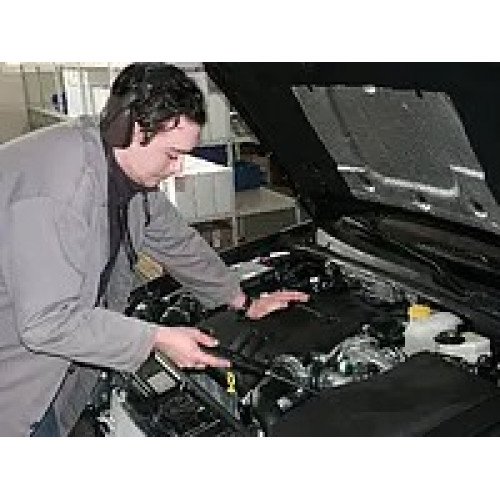

Car Measuring Device PCE-S 41 for use in machinery maintenance and repair

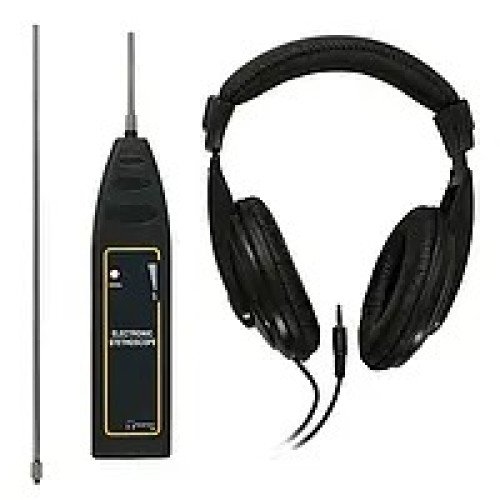

The car measuring device is battery powered and easy to use. This car measuring device can be used for detecting noise in machine components, such as gears, valves, vents and pumps. This makes the car measuring device a useful tool in inspecting noise and vibration, giving the maintenance team the chance to locate the source of a problem before it becomes too costly. The enclosure of the car measuring device is made of ABS plastic which is comfortable to hold and operate. The device uses a piezoelectric transducer which can detect very low resonant noises. The earpiece is equipped with an adjustable headset that has a 2 m cable.
Specification
| Technical Specifications |
| Frequency range | 100 Hz to 10 kHz |
| Volume | adjustable |
| Power | 9V battery |
| Enclosure | ABS |
| Operating temperature | -10 ... 55 °C / 14 ... 131 °F |
| Dimensions | 206 x 50 x 32 mm / 8.11 x 1.9 x 1.2 in |
| Sensors (attachable) | 1 mm x 290 mm ; 1 mm x 70mm (long) 0.04 in x 11.4 in ; 0.04 in x 2.8 in |
| Sensor composition | Steel |
| Weight | 240 g / 0.53 lbs with battery |

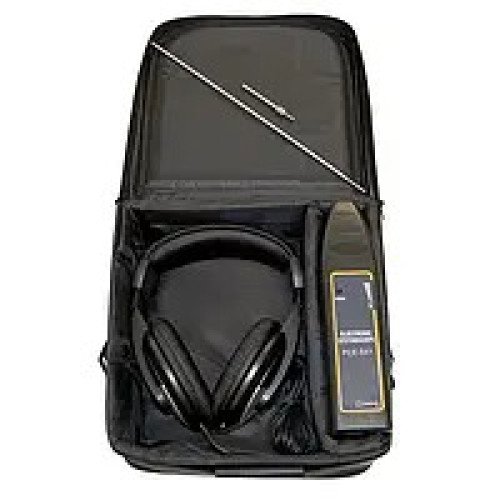

Delivery Scope
1 x Car Measuring Device PCE-S 41
1 x Headphones
1 x 70mm sensor
1 x 290mm sensor
1 x Battery
1 x Carrying case
1 x User's manual
1 x Headphones
1 x 70mm sensor
1 x 290mm sensor
1 x Battery
1 x Carrying case
1 x User's manual
