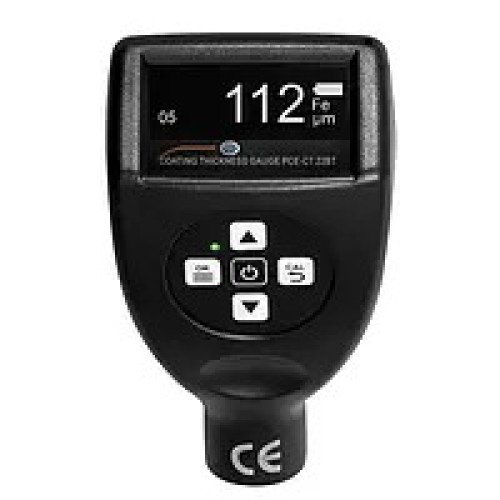

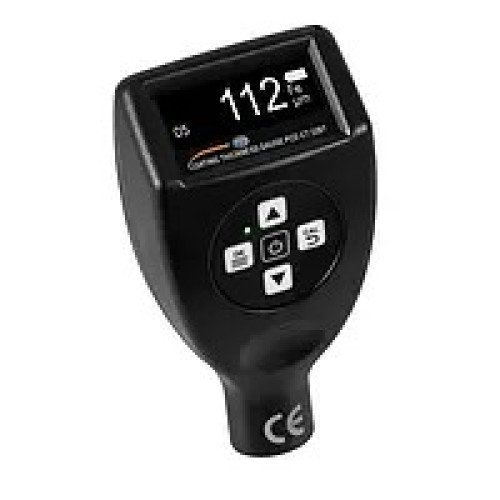

Car Measuring Device PCE-CT 22BT-ICA incl. ISO Calibration Certificate
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
for measurement on ferrous and non-ferrous metals / app connection / internal probe / data storage / incl. ISO Calibration Certificate
With this car measuring device, layer thicknesses on metallic surfaces can be reliably determined. The car measuring device has a measuring range of 1500 µm. This means that the car measuring device is used, for example, in a paint shop, for incoming goods inspection or for an expert.
With the Bluetooth interface on the car measuring device, all data can be transferred to a mobile iOS or Android device and exported as a CSV, PDF or TXT file. A live view with analysis of the measured values is also possible via the free app with the car measuring device.
In addition to the Bluetooth interface, the car measuring device has a micro USB interface. All data can also be transferred to the PC and analyzed via this interface in the car measuring device. Another special feature of this interface is that the car measuring device can also be operated without batteries via this interface. As a result, many measurement processes are no longer dependent on the battery charge level.
Highlights
- Calibration foils included
- Adjustable alarm thresholds
- Backlit display
- Data storage for up to 600 measured values
- Measuring range up to 1500 µm
- incl. ISO Calibration Certificate
Specification
| Measurable substrates | Fe, NFe |
| Probe | internal |
| Measuring range | 0… 1500 µm |
| Resolution | 0.1 µm (in the measuring range 0… 99.9 µm) |
| 1 µm (in the measuring range 100… 1500 µm) | |
| Accuracy | ± (1 µm + 2% of the layer thickness) |
| Units | µm, mil |
| Smallest curvature | convex 5 mm, concave 5 mm |
| Smallest measuring area | 10 x 10 mm |
| Minimum thickness of the substrate | 0.4 mm |
| Interface | Bluetooth, micro USB |
| Memory | 10 groups with 60 measurements each |
| Power supply | 2 x 1.5 V AA batteries, 5 V USB interface |
| Environmental conditions | -10… 50 °C, 10… 85% RH |
| Dimensions | 126 x 69 x 35 mm (without sensor) |
| Weight | approx. 97 g (without batteries) |
Delivery Scope
5 x Calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x Wrist strap
2 x 1.5 V AA batteries
1 x Carrying case
1 x Instruction manual
1 x ISO Calibration Certificate
