Car Measuring Device PCE-CT 80-FN2
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Car measuring device for Fe and NFe / USB interface / Battery operation /
Integrated data storage
Integrated data storage
The car measuring device is a measuring device for the non-destructive measurement of coatings (varnishes, paints, plastics ...) on steel / iron and non-ferrous metals. Thanks to the externally connected sensor on the coating thickness gauge, measuring points that are difficult to access can also be easily reached. The menu navigation of the coating thickness gauge allows easy adjustment and setting to new parameters and makes this handy coating thickness gauge an indispensable measuring device for control measurements in production, workshop and quality assurance.
The car measuring device is also ideal for immediately determining and assessing accident damage to vehicles, for example, but the coating thickness gauge can also be used optimally in the industrial sector for incoming and outgoing inspection and material testing in production.

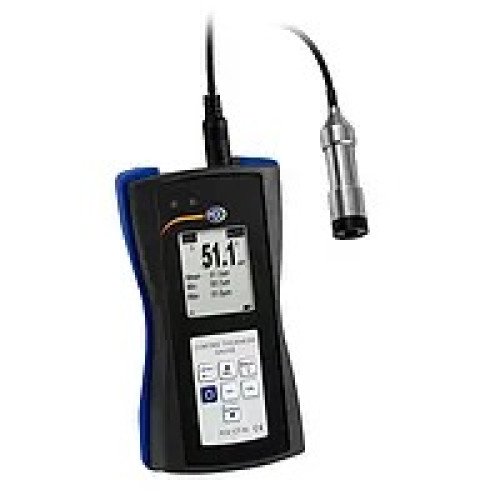

The ergonomically designed car measuring device with external sensor allows you to rapidly determine measurement results with high accuracy. The coating thickness gauge measures non-magnetic layers such as paint, plastic, chrome, copper, zinc, enamel, etc. on steel/iron, as well as non-conductive layers such as paint, plastic, enamel, paper, glass, rubber, etc. on copper, aluminum , brass and stainless steel, as well as anodized aluminum.
The car measuring device is also ideal for immediately determining and assessing accident damage to vehicles, for example, but the coating thickness gauge can also be used optimally in the industrial sector for incoming and outgoing inspection and material testing in production.
The ergonomically designed car measuring device with external sensor allows you to rapidly determine measurement results with high accuracy. The coating thickness gauge measures non-magnetic layers such as paint, plastic, chrome, copper, zinc, enamel, etc. on steel/iron, as well as non-conductive layers such as paint, plastic, enamel, paper, glass, rubber, etc. on copper, aluminum , brass and stainless steel, as well as anodized aluminum.
Highlights
- For measurements on iron/steel and non-ferrous metals
- Measurements cannot be influenced by vibrations
- Practical V-groove on the measuring heads
- Ergonomic design
- Warning message for measurements outside the maximum measuring range
- Wear-resistant, spring-mounted measuring head for precise measuring results
- Measurements cannot be influenced by vibrations
- Practical V-groove on the measuring heads
- Ergonomic design
- Warning message for measurements outside the maximum measuring range
- Wear-resistant, spring-mounted measuring head for precise measuring results
Specification
| Measuring range | Fe: 0 ... 2000 µm |
| NFe: 0 ... 2000 µm | |
| Accuracy | ±(2 % of reading + 1 µm) |
| Resolution | 0.1 µm (<100 µm) |
| 1 µm (>100 µm) | |
| Measurable materials | For measurements on iron/steel and non-ferrous metals |
| Min. radius of curvature convex | 5 mm / 0.19" |
| Min. radius of curvature concave | 25 mm / 0.98" |
| Min. measuring surface | Ø17 mm / 0.67" |
| Min. substrate thickness | 0.2 mm / 0.008" (on magnetic materials) |
| 0.05 mm / 0.002" (on non-magnetic materials) | |
| Probe mode | Autom. mode with material detection (Fe + NFe) |
| Magnetic mode (Fe) | |
| Eddy current mode (NFe) | |
| Calibration | Multipoint calibration (1 ... 4 points for each group) |
| Zero-point calibration | |
| Units | µm, mm, mils |
| Data transfer | USB 2.0 |
| Memory | A volatile measuring group (DIR mode) |
| Four measuring groups with autom. storage and max. 2000 readings (GEN mode) | |
| Statistical functions | Number of measured values, mean, minimum, maximum, standard deviation |
| Alarm | Display when the adjustable upper and lower alarm limits are exceeded |
| Operating time | Autom. shutdown mode (3 min.) |
| Power supply | 3 x 1.5 V AAA batteries |
| Display | 128 x 128 px LCD display |
| Indicators | Battery status |
| Fault detection | |
| Operating conditions | 0 ... +50 °C / 32 ... 122 °F |
| 20 ... 90 % RH non-condensing | |
| Storage conditions | -10 ... +60 °C / 14 ... 140 °F |
| 20 ... 90 % RH non-condensing | |
| Dimensions | 143 x 71 x 37 mm / 5.6 x 2.8 x 1.5" (L x W x H) |
| Weight | With sensor and batteries: ca. 271 g / 9.5 oz |
