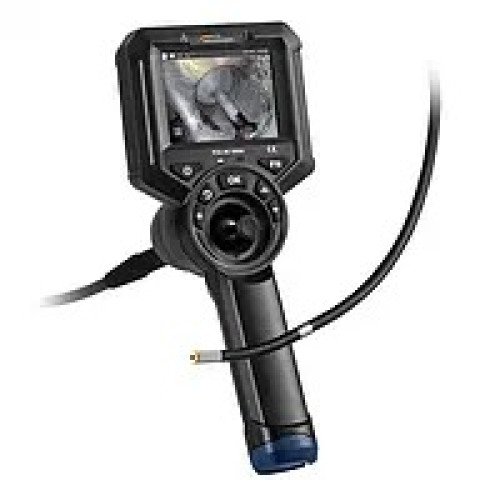

Car Measuring Device PCE-VE 100N4
Need Technical Support?
Our engineers are available to help you select the right module for your application.
Description
Description
Multiway Car Measuring Device with photo and video recording / 1280 x 720 pixels / 360° swivel /
6 mm (0.23") diameter / 1 meter (3 ft 2") cable length / LED lighting / Micro-SD card memory /
Transport case / Battery life >3 hours / IP 67
6 mm (0.23") diameter / 1 meter (3 ft 2") cable length / LED lighting / Micro-SD card memory /
Transport case / Battery life >3 hours / IP 67

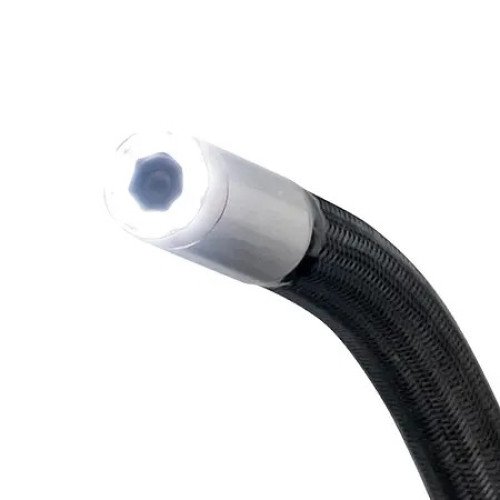

The multiway car measuring device with a cable length of one meter and a camera head diameter of 6 mm is the ideal tool for endoscopy. The LED illuminance on the camera head can be set in 5 steps up to 25,000 lux. This ensures that the test item is adequately illuminated. With the mini-HDMI interface on the multiway car measuring device, the image can be transmitted to an external monitor or projector. This has the particular advantage that the multiway car measuring device can be used for presentations. Thus, the multiway car measuring device is used in car workshops, heating and air conditioning technology, or vocational schools, universities and other educational facilities.
Photos as well as videos can be recorded with the multiway car measuring device. The recordings are saved directly on the Micro SD card and can be viewed on the multiway car measuring device. It is also possible to transfer the recordings from the Micro SD card to a computer. This means that the recordings from the multiway car measuring device can be stored in expert reports, for example.
The 3500 mAh battery enables an operating time of more than 3 hours before it has to be recharged. To recharge the battery, the multiway car measuring device can be connected to any 5 V USB interface.
Photos as well as videos can be recorded with the multiway car measuring device. The recordings are saved directly on the Micro SD card and can be viewed on the multiway car measuring device. It is also possible to transfer the recordings from the Micro SD card to a computer. This means that the recordings from the multiway car measuring device can be stored in expert reports, for example.
The 3500 mAh battery enables an operating time of more than 3 hours before it has to be recharged. To recharge the battery, the multiway car measuring device can be connected to any 5 V USB interface.
Highlights

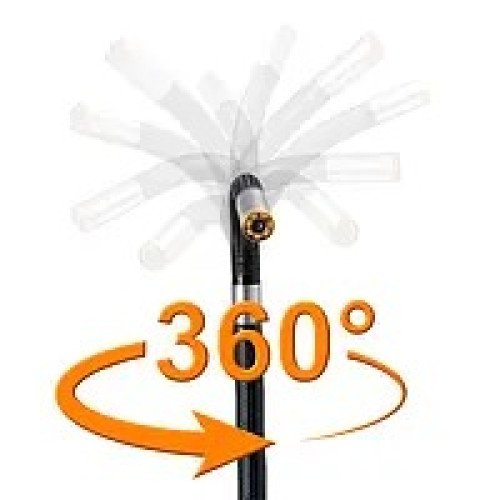

- Multiway 360° rotation head
- Rechargeable via USB interface

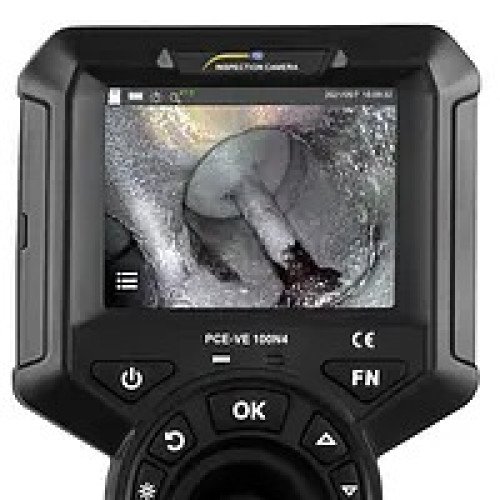

- 3.5" display
- Operating time of more than 3 hours
- Mini-HDMI interface for image output
- Braided tungsten tube with a length of 1 m / 3 ft 2"
- Rechargeable via USB interface
- 3.5" display
- Operating time of more than 3 hours
- Mini-HDMI interface for image output
- Braided tungsten tube with a length of 1 m / 3 ft 2"
Specification
| Camera diameter | 6 mm / 0.23" |
| Cable length | 1 m / 3 ft 2" |
| Camera pixels | 1,000,000 |
| Depth of field | 7 ... 110 mm / 0.27 ... 4.33" |
| Field of view | 120° |
| Swivel range | 360° |
| Illuminance | can be set in five levels up to 25,000 lx |
| Cable material | Tungsten braided |
| Bending radius | >220° |
| Display | 3.5" IPS |
| Display resolution | 640 x 480 |
| Photo and video format | JPG / MP4 |
| Photo and video resolution | 960 x 720, 1280 x 720 |
| Magnification | 5-times |
| Protection class | camera cable: IP67 |
| display: IP65 | |
| Memory | 16 GB Micro-SD card |
| Battery power supply | 1 x 3.7 V 3200 mAh 18650 battery |
| Power consumption | 3.5 W |
| Operating time | >3 hours |
| Mains power supply | primary: 100 ... 240 V AC, 50 ... 60 Hz, 0.35 A |
| secondary: 5 V DC, 2 A | |
| Interfaces | Mini-HDMI (image transmission) |
| Micro-USB connector (charging port) | |
| Storage conditions | -10 ... +63 °C / 14 ... 145 °F, <92 % RH, non-condensing |
| Operating conditions display* | -10 ... +50 °C / 14 ... 122 °F, <92 % RH, non-condensing |
| Operating conditions camera* | -10 ... +80 °C / 14 ... 176 °F, <92 % RH, non-condensing |
*at temperatures below 0 °C / 32 °F the display must be preheated | |
| Dimensions | 277 x 106 x 92 mm / 10.9 x 4.1 x 3.6" |
| Weight | ca. 500 g / 17.6 oz |
Delivery Scope
1 x Multiway Car Measuring Device PCE-VE 100N4
1 x 3.7 V 18650 battery
1 x Micro USB cable
1 x USB power adapter
1 x Micro SD memory card
1 x Micro SD card adapter
1 x Transport case
1 x Screwdriver
1 x Instruction manual
1 x 3.7 V 18650 battery
1 x Micro USB cable
1 x USB power adapter
1 x Micro SD memory card
1 x Micro SD card adapter
1 x Transport case
1 x Screwdriver
1 x Instruction manual
